Technical Information & Details on MEAN WELL PWM-120-24KN Power Supply Output Power: 120 W Output Voltage: 24 V DC Output Current: 5 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 90 % PWM Frequency: 0 – 4000 Hz (adjustable via ETS) Inrush Current: typ. 60 A Standby Power Consumption: 0.5 W Operating Temperature: −40 °C to +80 °C Cooling: natural convection Protection Functions: Short circuit (Hiccup, auto recovery), Overload, Overvoltage, Over temperature Isolation Voltage: 3.75 kV AC between input and output Dimensions (L x W x H): 191 mm x 63 mm x 37.5 mm Weight: approx. 0.80 kg Safety & EMC Certifications: ENEC BS EN 61347-1/-2-13, BIS IS 15885, EAC Dimming: KNX certified Manufacturer Warranty: 5 years Information on MEAN WELL PWM-120-24KN The MEAN WELL PWM-120-24KN is an advanced 120W PWM LED driver with complete KNX certification for flawless smart building automation, including flexible PWM frequency adjustment up to 4000 Hz via ETS without power supply. It shines with wide operating temperature range -40 °C to +80 °C, superior efficiency up to 90%, and universal input voltage support. Perfect for KNX-compatible LED systems in offices and industry, fault-tolerant tech, and ultra-durable with over 1,900,000 hours lifespan.

Technical Information & Details of the MEAN WELL PWM-60-24KN LED Driver Output Power: 60 W Output Voltage: 24 V DC Output Current: 2.5 A Dimming Range: 0 – 100 % (PWM dimming) Minimum Dimming Level: 0.01 % PWM Output Frequency: 200 – 4,000 Hz, user‑changeable via ETS Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC Input Frequency: 47 – 63 Hz Power Factor (typ.): > 0.97 @115 VAC, > 0.95 @230 VAC, > 0.92 @277 VAC (full load) Efficiency (typ.): approx. 89 % AC Input Current (typ.): 0.8 A @115 VAC / 0.4 A @230 VAC / 0.32 A @277 VAC Inrush Current (typ.): 50 A @230 VAC (cold start, twidth ≈350 μs, per NEMA 410) THD: < 20 % (≥60 % load @115 / 230 VAC; ≥75 % load @277 VAC) Standby Power Consumption: < 0.5 W Overload Protection: 108 – 130 % of rated power, hiccup mode, auto recovery Overvoltage Protection: shut down output, re‑power on to recover (typ. 28 – 34 V DC) Overtemperature Protection: shut down output, re‑power on to recover Short‑circuit Protection: hiccup mode, auto recovery Operating Temperature (case): −35 °C to +85 °C (derating according to “Output load vs. temperature” curve) Operating Humidity: 20 – 95 % RH, non‑condensing Storage Temperature / Humidity: −35 °C to +80 °C, 10 – 95 % RH Temperature Coefficient: ±0.03 % / °C (0 – 50 °C) Vibration Resistance: 10 – 500 Hz, 5 G, 12 min./cycle, 72 min. along each X, Y, Z axis Dielectric Strength: 3.75 kVAC (input–output) Isolation Resistance: > 100 MΩ @500 VDC, 25 °C, 70 % RH Safety Standards: ENEC EN 61347‑1, EN 61347‑2‑13, EN 62384 (independent), GB19510.1 / GB19510.14, BIS IS 15885 (Part 2/Sec 13 for 12/24 KN), EAC KNX Standards: Certified KNX protocol EMC Emission: EN 55015, EN 61000‑3‑2 Class C (≥60 % load), EN 61000‑3‑3, GB/T 17743, GB17625.1, EAC TP TC 020 EMC Immunity: EN 61000‑4‑2,3,4,5,6,8,11; EN 61547 (light industry level, 2 kV Line‑Line surge), EAC TP TC 020 MTBF (typ.): 2,135,200 h (Telcordia SR‑332, 25 °C) / 247,700 h (MIL‑HDBK‑217F, 25 °C) Dimensions (L x W x H): 150 mm x 53 mm x 35 mm Weight: approx. 0.45 kg Case & Protection: fully encapsulated plastic housing, IP67, Class II Cooling Method: fanless, free air convection Information about the MEAN WELL PWM-60-24KN The MEAN WELL PWM‑60‑24KN is a 60 W constant‑voltage LED driver with 24 V DC PWM‑style output and a fully integrated KNX interface, created for direct connection to KNX building automation systems without requiring a KNX‑DALI gateway. Its PWM constant‑voltage output allows 24 V LED strips and constant‑voltage LED lamps to maintain uniform brightness and colour appearance over long runs, even when dimmed deeply. Key strengths of the PWM‑60‑24KN include the very low minimum dimming level of 0.01 % and the user‑adjustable PWM frequency from 200 Hz up to 4 kHz via ETS, enabling setups that comply with IEEE 1789‑2015 “no risk” recommendations and EU Ecodesign SVM flicker limits. Combined with a typical efficiency of around 89 %, a wide 90–305 V AC input range and a fully potted IP67 plastic housing, the driver is well suited for long‑life installations in indoor architectural, decorative and ambient lighting applications where flicker and visual comfort are critical. The native KNX protocol support also stands out: the driver can be addressed and programmed in ETS, and the PWM KN series even supports ETS addressing/programming without AC mains connected, simplifying commissioning on site. Together with its broad case temperature range from −35 °C to +85 °C, robust protection features and international approvals, the PWM‑60‑24KN offers a compact, reliable KNX‑centrical solution for 24 V LED strip lighting, indoor LED lighting and constant‑voltage LED bulbs in smart building projects.

Technische Eigenschaften des MEAN WELL ELG-300-12A Leistung: 300W Spannung: 24V Aluminiumgehäuse Integriertes PFC Standby Ladeverbrauch <0,5W IP67 Allgemeine Lebensdauer >50.000Std. 5 Jahre Garantie Produktbeschreibung zur MEAN WELL ELG-300 Serie Bei der MEAN WELL ELG-300 Serie handelt es sich um 300W AC/DC LED Netzteile, die im dualen Modus einen Konstantstrom- und Konstantspannungsausgang unterstützen. Die ELG-300 Netzteile arbeiten mit einem 180~295VAC Eingangsbereich und bieten verschiedene Ausgangsspannungen im Bereich von 12V bis 24V an. Dank des 90% hohem Wirkungsgrads und dem lüfterlosen Design kann die Serie unter freier Luftkonvektion im Temperaturbereich von -40°C bis +85°C betrieben werden. Durch das verwendete Aluminiumgehäuse und den Schutzklassen IP65/67 finden MEAN WELL ELG-300 Netzteile Anwendung sowohl Indoor-, als auch im Outdoorbereich.

Auslaufmodell siehe Nachfolger SS-12V2451*43*21mm 24VDC 0,38A ~9W

150W Konstantstrom LED Treiber 150W Constant Current LED Driver In: 100-305VAC 47-63Hz 142-431VDC / Eff. 91.5%/ 180x63x35mmOut: 24V 6.25A, 3.2-6.25A strom einstellbar , Arbeitet im CC und CV modus, IP67

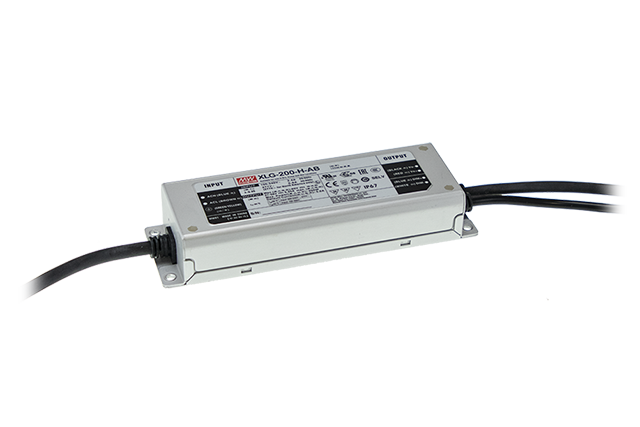

Technical Information & Details for the MEAN WELL XLG-200-12-A Power Supply Output Power: 192 W Output Voltage: 12 V DC Output Current: 16 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 92 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 65 A @ 230 VAC No Load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +90 °C (Tcase) Cooling: Fanless free air convection Protection Functions: Short circuit, Over current, Over voltage, Over temperature Surge Protection: 6KV/4KV immunity Isolation Voltage: 3750 V AC between Input and Output Dimensions (L x W x H): 199 mm x 63 mm x 35.5 mm Weight: approx. 850 g Safety & EMC Certificates: UL8750, EN61347-1, EN62384, IP67, CE, CB Special Feature: A-Type current adjustable via built-in potentiometer Manufacturer Warranty: 5 Years Information about the MEAN WELL XLG-200-12-A The MEAN WELL XLG-200-12-A is a premium 200W LED AC/DC driver designed with a focus on high efficiency and global adaptability. Its primary strength lies in the Constant Power Mode operation, which offers greater flexibility than traditional drivers by maintaining maximum power output across a wider current range. As an A-Type model, it features a built-in internal potentiometer that allows users to manually adjust the output current from 8A to 16A, ensuring the driver can be perfectly calibrated for specific luminaire requirements. The unit is encased in a heavy-duty metal housing with an IP67 ingress protection level, making it fully submersible and suitable for harsh outdoor environments such as skyscraper lighting, stage setups, and outdoor sports facilities. With a high efficiency of 92% and a fanless design that relies on natural convection, it ensures long-term reliability even at high case temperatures of up to 90 °C. The series further distinguishes itself with advanced 6KV surge protection and compliance with the latest international safety regulations, backed by a significant 5-year manufacturer warranty for total peace of mind in industrial applications.
