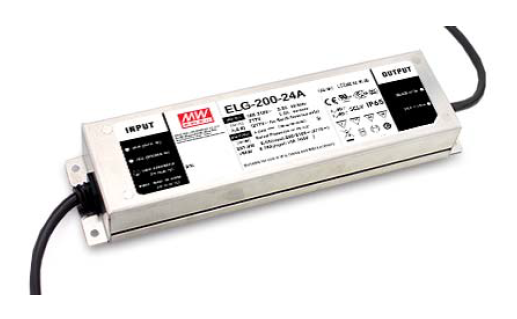

Technische Eigenschaften des MEAN WELL ELG-200-24A Leistung: 201,6W Aluminiumgehäuse Integriertes PFC Standby Ladeverbrauch <0,5W IP65 Ausgangsstrom einstellbar durch internen Potentiometer Erdung muss am Gehäuse durchgeführt werden! (Alternativ mit Erdungskabel die 3Y Variante wählen) Allgemeine Lebensdauer >50.000Std. 5 Jahre Garantie Produktbeschreibung zur MEAN WELL ELG-200 Serie Bei der MEAN WELL ELG-200 Serie handelt es sich um 200W AC/DC LED Netzteile, die im dualen Modus einen Konstantstrom- und Konstantspannungsausgang unterstützen. Die ELG-200 Netzteile arbeiten mit einem 100~305VAC Eingangsbereich und bieten verschiedene Ausgangsspannungen im Bereich von 12V bis 54V an. Dank des 91% hohem Wirkungsgrads und dem lüfterlosen Design kann die Serie unter freier Luftkonvektion im Temperaturbereich von -40°C bis +90°C betrieben werden. Durch das verwendete Aluminiumgehäuse und den Schutzklassen IP65/67 finden MEAN WELL ELG-200 Netzteile Anwendung sowohl Indoor-, als auch im Outdoorbereich. Die Serie verfügt weiterhin über verschiedene zusätzliche Funktionen, wie 3 in 1 Dimmung, Smart-Timer-Dimmung oder DALI, welche eine hohe Flexibilität in LED Beleuchtungsanwendungen garantieren.

Technical Information & Details about the MEAN WELL LPV-100-24 Power Supply Rated output power: 100.8 W DC output voltage: 24 V DC Rated output current: 4.2 A Current range: 0 – 4.2 A Input voltage range: 90 – 264 V AC (127 – 370 V DC), 47 – 63 Hz Efficiency (typical): about 88 % Ripple & noise (max.): ≤ 150 mVp-p Output voltage range (O.V.P. region): 27.6 – 32.4 V DC Voltage tolerance: ±5.0 % Line regulation: ±2.0 % Load regulation: ±5.0 % Setup, rise time: 2000 ms, 25 ms at 230 V AC / 115 V AC (first cold start) Hold-up time (typ.): 50 ms at 230 V AC / 14 ms at 115 V AC (full load) AC input current (typ.): 2.2 A at 115 V AC / 1.2 A at 230 V AC Inrush current (typ.): 75 A at 230 V AC (cold start, twidth ≈ 700 μs) Leakage current: < 0.25 mA at 240 V AC Overload protection: 110 – 150 % of rated output power, hiccup mode, auto recovery after fault removal Overvoltage protection: shut down output voltage at 27.6 – 32.4 V, re‑power on to recover Operating temperature: −25 °C to +70 °C (derating required, see curve) Operating humidity: 20 – 90 % RH, non‑condensing Storage conditions: −40 °C to +80 °C, 10 – 95 % RH Cooling method: free air convection (fanless) Withstand voltage: 3000 V AC between input and output Isolation resistance: > 100 MΩ at 500 V DC, 25 °C, 70 % RH Ingress protection rating: IP67, fully encapsulated plastic case Dimensions (L x W x H): 190 mm x 52 mm x 37 mm Weight: approx. 610 g Vibration resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z) EMC emission: BS EN/EN 55032 Class B, BS EN/EN 61000‑3‑2 Class A (≤80 % load), BS EN/EN 61000‑3‑3 EMC immunity: BS EN/EN 61000‑4‑2,‑3,‑4,‑5,‑6,‑8,‑11; BS EN/EN 55035 Safety approvals: UL 8750, CSA C22.2 No. 250.13‑12, UL 879, CSA C22.2 No. 207‑M89, BIS IS 15885, IEC/BS EN/EN 62368‑1, EAC Case design: fully isolated, encapsulated plastic case for damp and dusty environments MTBF (typical): 4,497,100 h (Telcordia SR‑332, 25 °C) Manufacturer warranty: 2 years About the MEAN WELL LPV-100-24 The MEAN WELL LPV-100-24 is a 100 W class constant‑voltage switching power supply that provides a regulated 24 V DC output at up to 4.2 A, fully encapsulated in an IP67 plastic housing for reliable use in harsh environments. Its universal AC input range, high efficiency, short‑circuit, overload and overvoltage protection, and fanless free air convection make it suitable for indoor and sheltered outdoor applications. With compact dimensions, strong isolation and broad safety and EMC approvals, LPV-100-24 is a robust 24 V source for LED strips, signage, control systems and other low‑voltage equipment that require a rugged, dust‑ and splash‑proof power supply.

Not approved as an LED driver within the EU! An approved alternative is, for example, the LPF-60 series. Technical Information & Details of the MEAN WELL LPV-60-24 Power Supply Output Power: 60 W Output Voltage: 24 V DC Output Current: 2.5 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 86 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @230 VAC No-load Power Consumption: < 0.5 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protection Features: Short-circuit, Overload, Overvoltage Overvoltage Category: OVC III Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 32 mm x 42.5 mm x 162.5 mm Weight: approx. 420 g Safety & EMC Certificates: CE, UL1310, TUV, CB, EAC, IP67 LED Indicator: - Manufacturer Warranty: 2 years Information about the MEAN WELL LPV-60-24 The MEAN WELL LPV-60-24 is a powerful LED power supply with 60 W and stable 24 V DC / 2.5 A output voltage. It excels with excellent efficiency up to 86 %, fanless convection cooling for silent operation, and a fully waterproof IP67 housing. The comprehensive protection features (short-circuit, overload, and overvoltage protection) with automatic recovery ensure maximum operational safety. Perfect for LED strips, modules, outdoor lighting, and humid environments – the universal input voltage range 90–264 V AC enables worldwide deployment. With international certifications, the LPV-60-24 offers maximum flexibility, durability, and weatherproof protection in demanding environments.

Technical Information & Details for MEAN WELL ELG-100-24A Power Supply Output Power: 96 W (at 200–305 V AC) / 70 W (at 100–180 V AC) Output Voltage: 24 V DC (adjustable 21.6–26.4 V) Output Current: 4.0 A (adjustable 2.0–4.0 A) Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: Up to 88% Ripple & Noise: ≤ 200 mVp-p Inrush Current: COLD START 60 A @ 230 V AC No Load / Standby Power: < 0.5 W Operating Temperature: −40 °C to +90 °C (Case temperature Tcase) Cooling: Fanless free air convection Protections: Short circuit (Hiccup mode), Overload (Constant current limiting), Over voltage, Over temperature Isolation Voltage: 3750 V AC between Input and Output Adjustment Capability: Internal potentiometers for voltage and current levels (Io & Vo) Ingress Protection / Housing: IP65, Metal housing Dimensions (L x W x H): 199 mm x 63 mm x 35.5 mm Weight: approx. 850 g Safety & EMC Standards: UL8750 (Type HL), EN61347-1, EN61347-2-13, EN55015, EAC, CB, CE AC Input Connection: Standard 2-wire AC input cable Warranty: 5 Years Information about MEAN WELL ELG-100-24A Direct manual fine-tuning of electrical output parameters is rendered straightforward on the MEAN WELL ELG-100-24A via accessible **internal potentiometers (Io & Vo)**. Encased inside a durable **IP65** rated metal shell, internal components are reliably protected from environmental moisture and particulate buildup. The driver utilizes passive thermal convection rather than noisy cooling fans, ensuring completely silent operation across case operating temperatures spanning **-40 °C to +90 °C**. Fully compliant with **UL8750 (Type HL)** requirements for Class I, Division 2 hazardous locations, the product is covered by a **5 years** manufacturer warranty.

Technische Eigenschaften des MEAN WELL ELG-200-24DA Leistung: 201,6W Aluminiumgehäuse Integriertes PFC Standby Ladeverbrauch <0,5W IP67 DALI Erdung muss am Gehäuse durchgeführt werden! (Alternativ mit Erdungskabel die 3Y Variante wählen) Allgemeine Lebensdauer >50.000Std. 5 Jahre Garantie Produktbeschreibung zur MEAN WELL ELG-200 Serie Bei der MEAN WELL ELG-200 Serie handelt es sich um 200W AC/DC LED Netzteile, die im dualen Modus einen Konstantstrom- und Konstantspannungsausgang unterstützen. Die ELG-200 Netzteile arbeiten mit einem 100~305VAC Eingangsbereich und bieten verschiedene Ausgangsspannungen im Bereich von 12V bis 54V an. Dank des 91% hohem Wirkungsgrads und dem lüfterlosen Design kann die Serie unter freier Luftkonvektion im Temperaturbereich von -40°C bis +90°C betrieben werden. Durch das verwendete Aluminiumgehäuse und den Schutzklassen IP65/67 finden MEAN WELL ELG-200 Netzteile Anwendung sowohl Indoor-, als auch im Outdoorbereich. Die Serie verfügt weiterhin über verschiedene zusätzliche Funktionen, wie 3 in 1 Dimmung, Smart-Timer-Dimmung oder DALI, welche eine hohe Flexibilität in LED Beleuchtungsanwendungen garantieren.

Technical Information & Details for MEAN WELL ELG-150-24DA LED Driver Output Power: 150 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC) Output Voltage: 24 V DC (Constant current region: 12 – 24 V) Rated Current: 6.25 A Dimming Function (DALI Interface): DALI-1 control protocol (EN62386-101, 102, 207) Ripple & Noise (max.): ≤ 200 mVp-p Voltage Tolerance: ±2.0% Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC Efficiency (Typ.): 88.5% Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load) Ingress Protection: IP67 (suitable for indoor and outdoor installations) Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C) Cooling: Fanless free air convection Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (28 – 34 V), Over temperature Form Factor / Housing: Metal housing design with functional Ground (Class I) Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm Weight: Approx. 0.95 kg Manufacturer Warranty: 5 Years Information about MEAN WELL ELG-150-24DA The MEAN WELL ELG-150-24DA is a high-performance 150W AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 24 V DC output with a rated current of up to 6.25 A (150 W output at 200–305 V AC). As a DA-Type model, it features an IP67 rating and an integrated DALI technology interface complying with DALI-1 standards (EN62386). Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.
