LS-40V24-D1 Auslaufmodell

Auslaufmodell siehe Alternative: LS-50V24-D3

Technische Eigenschaften des SC Power KV-24060-TD: Leistung: 60W Spannung: 24V Ausgangsstrom: 2500mA Konstantspannungsausgang Eingangsbereich: 180-240VAC Arbeitseffizienz: bis zu 84% TRIAC Dimmer: Phasenan-/abschnittsdimmung/ Phase Cut Einfache Installation IP66 Design; Geeignet für Outdoor-Installationen Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überlast, Überstrom und Überhitzung Eingebaute PFC Funktion Perfekte Kompatibilität; Flimmerfreie Dimmung Geeignet für LED-Beleuchtungssysteme und Displayanzeigen

Technical Information & Details on MEAN WELL PWM-120-24DA Power Supply Output Power: 120 W Output Voltage: 24 V DC Output Current: 5 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 90 % PWM Frequency: 1.47 kHz Inrush Current: typ. 60 A / 50 µs @ 230 VAC No-Load Power Consumption: < 0.5 W (Standby < 0.5 W) Operating Temperature: −40 °C to +80 °C Cooling: natural convection Protection Functions: Short circuit (Hiccup mode), Overload, Overvoltage, Over temperature Overvoltage Category: II Isolation Voltage: 3.75 kV AC between input and output; IP-DA 1.5 kV AC Dimensions (L x W x H): 191 mm x 63 mm x 37.5 mm Weight: approx. 0.97 kg Safety & EMC Certifications: UL8750, ENEC EN61347-1/-2-13, EAC, CB, IP67, BIS IS 15885, DALI Standards IEC62386-101/102/207/251 (DT6) Dimming: DALI (up to 16 groups / 64 addresses) MTBF: > 2243.7k hours (Telcordia SR-332) Manufacturer Warranty: 5 years Information on MEAN WELL PWM-120-24DA This PWM LED driver excels with its extremely wide operating range (−40 °C to +80 °C), IP67 waterproofing for outdoor use, and high efficiency up to 90 % with low no-load consumption. Unique features include DALI dimming (DT6) with synchronized multi-device control, automatic fault recovery, and superior vibration resistance for enduring performance in smart lighting systems. The MEAN WELL PWM-120-DA series is a high-performance 120 W PWM output LED driver power supply with waterproof IP67 housing and integrated DALI interface, designed for demanding outdoor and industrial applications. The PWM-120-24DA model delivers stable 24 V DC / 5 A output power with an extremely wide input voltage range of 90–305 V AC. It is ideal for DALI-controlled LED lighting, street lamps, industrial LEDs, and weather-exposed installations, backed by comprehensive certifications and a 5-year manufacturer warranty.

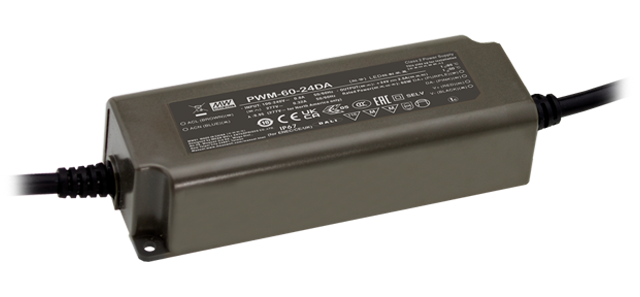

Technical Information & Details of the MEAN WELL PWM-60-24DA LED Driver Output Power: 60 W Output Voltage: 24 V DC Output Current: 2.5 A Dimming Range: 0 – 100 % (PWM dimming, DALI / DALI‑2 control) PWM Output Frequency: approx. 1.47 kHz (DA type), approx. 2.5 kHz (DA2 type) Dimming Interface: DALI or DALI‑2 (depending on DA / DA2 version); 3‑in‑1 dimming (0–10 VDC, 10 V PWM signal, resistance) available on Blank type Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC Input Frequency: 47 – 63 Hz Power Factor (typ.): > 0.97 @115 VAC, > 0.95 @230 VAC, > 0.92 @277 VAC (full load) Efficiency (typ.): approx. 89 % AC Input Current (typ.): 0.8 A @115 VAC / 0.4 A @230 VAC / 0.32 A @277 VAC Inrush Current (typ.): 50 A @230 VAC (cold start, twidth ≈270 μs) THD: < 20 % (≥60 % load @115 / 230 VAC; ≥75 % load @277 VAC) No‑load Power Consumption: < 0.5 W Overload Protection: 108 – 130 % of rated power, hiccup mode, auto recovery Overvoltage Protection: shut down output, re‑power on to recover (typ. 28 – 34 V DC) Overtemperature Protection: shut down output, re‑power on to recover (DA2 type in hiccup mode) Short‑circuit Protection: hiccup mode, auto recovery Operating Temperature (case): −40 °C to +85 °C (derating according to curve) Operating Humidity: 20 – 95 % RH, non‑condensing Storage Temperature / Humidity: −40 °C to +80 °C, 10 – 95 % RH Temperature Coefficient: ±0.03 % / °C (0 – 50 °C) Vibration Resistance: 10 – 500 Hz, 5 G, 12 min./cycle, 72 min. in each X, Y, Z axis Dielectric Strength: 3.75 kVAC (input–output), 1.5 kVAC (input–DA), 1.5 kVAC (output–DA) Isolation Resistance: > 100 MΩ @500 VDC, 25 °C, 70 % RH Safety Standards: UL8750 (type “HL”, except DA type), UL879 (12/24 V Blank), ENEC EN 61347‑1, EN 61347‑2‑13 (independent), EN 62384, BIS IS 15885 (12/24/48 V Blank & 12/24‑DA2), EAC, GB19510.1 / GB19510.14; design reference EN 60335‑1; suitable for EL applications according to EN 61347‑2‑13 Annex J DALI Standards (DA / DA2): IEC 62386‑101, 102, 207, 251, device type DT6 EMC Emission: EN 55015, EN 61000‑3‑2 Class C (≥60 % load), EN 61000‑3‑3, GB/T 17743, GB17625.1, EAC TP TC 020 EMC Immunity: EN 61000‑4‑2,3,4,5,6,8,11; EN 61547 (light industry level, 2 kV Line‑Line surge), EAC TP TC 020 MTBF (typ.): 2,626,600 h (Telcordia SR‑332, 25 °C) / 227,100 h (MIL‑HDBK‑217F, 25 °C) Dimensions (L x W x H): 150 mm x 53 mm x 35 mm Weight: approx. 0.49 kg Case & Protection: fully encapsulated plastic housing, IP67, Class II, Class 2, LPS Cooling Method: fanless, free air convection Information about the MEAN WELL PWM-60-24DA The MEAN WELL PWM‑60‑24DA is a 60 W constant‑voltage LED driver with 24 V DC output and PWM‑style regulation, tailored for medium‑voltage LED strips and 24 V LED modules in DALI‑ or DALI‑2‑based lighting systems. Its PWM output helps maintain consistent brightness and colour appearance along longer runs of 24 V strips, even when they are dimmed down to low levels. This model’s strengths include its solid typical efficiency around 89 %, the wide 90–305 V AC input range with active power factor correction, and the fully potted IP67 enclosure that supports use in dry, damp and wet locations. The wide case temperature range from −40 °C to +85 °C, together with robust protection features (short‑circuit, overload, overvoltage, overtemperature), makes the PWM‑60‑24DA a reliable option for both indoor and outdoor architectural, commercial and industrial lighting projects. A distinctive characteristic of the PWM‑60‑24DA is its native DALI / DALI‑2 support (device type DT6), which enables precise, addressable dimming and grouping in modern building management and lighting control systems. Combined with its long MTBF, comprehensive safety and EMC certifications, and constant‑voltage PWM behaviour optimised for 24 V LED strips, this driver is well suited for cove lighting, linear accent lighting, signage and other 24 V LED applications where stable dimming and centralised DALI control are key requirements.

Technische Eigenschaften des SC Power KVF-24100-TDHL: Leistung: 100W Spannung: 24V Ausgangsstrom: 4,17A Konstantspannungsausgang Eingangsbereich: 180-240VAC Arbeitseffizienz: bis zu 88% TRIAC Dimmer: Phasenan-/abschnittsdimmung/ Phase Cut Einfache Installation IP66 Design; Geeignet für Outdoor-Installationen Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überlast, Überstrom und Überhitzung Eingebaute PFC Funktion Perfekte Kompatibilität; Flimmerfreie Dimmung Geeignet für LED-Beleuchtungssysteme und Displayanzeigen

60W AC Dimmbar LED Netzteile 60W Single Output AC Dimmable LED Power Supply
