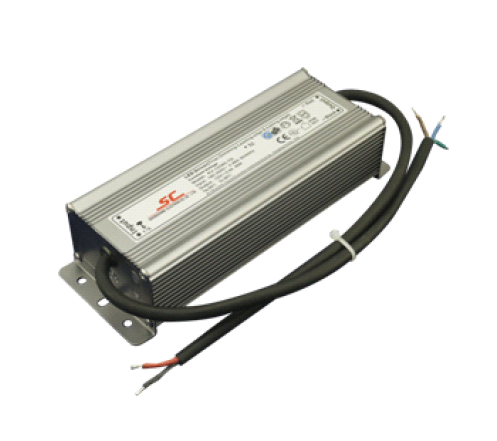

KVF-12120-TDH

Abgekündigt! Siehe Nachfolgemodell KVF-12060-TDH Technische Eigenschaften des SC Power KV-12060-TD: Leistung: 60W Spannung: 12V Ausgangsstrom: 5000mA Konstantspannungsausgang Eingangsbereich: 180-240VAC Arbeitseffizienz: bis zu 81% TRIAC Dimmer: Phasenanschnittsdimmung/ Phase Cut Einfache Installation IP66 Design; Geeignet für Outdoor-Installationen Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überlast, Überstrom und Überhitzung Eingebaute PFC Funktion Perfekte Kompatibilität; Flimmerfreie Dimmung Geeignet für LED-Beleuchtungssysteme und Displayanzeigen

Technische Eigenschaften des SC Power KVF-12320-TDH: Leistung: 320W Spannung: 12V Ausgangsstrom: 26,67A Konstantspannungsausgang Eingangsbereich: 200-240VAC Arbeitseffizienz: bis zu 88% TRIAC Dimmer: Phasenan-/abschnittsdimmung/ Phase Cut Einfache Installation IP66 Design; Geeignet für Outdoor-Installationen Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überlast, Überstrom und Überhitzung Eingebaute PFC Funktion Perfekte Kompatibilität; Flimmerfreie Dimmung Geeignet für LED-Beleuchtungssysteme und Displayanzeigen

Technische Eigenschaften des SC Power KVF-24150-TDH: Leistung: 150W Spannung: 24V Ausgangsstrom: 6,25A Konstantspannungsausgang Eingangsbereich: 200-240VAC Arbeitseffizienz: bis zu 90% TRIAC Dimmer: Phasenan-/abschnittsdimmung/ Phase Cut Einfache Installation IP66 Design; Geeignet für Outdoor-Installationen Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überlast, Überstrom und Überhitzung Eingebaute PFC Funktion Perfekte Kompatibilität; Flimmerfreie Dimmung Geeignet für LED-Beleuchtungssysteme und Displayanzeigen

Technical Information & Details for the KVF-24200-TDH Power Supply Output Power: 200 W Output Voltage: 24 V DC Output Current: 8.33 A Input Voltage Range: 200 – 240 V AC, 47 – 63 Hz Efficiency: up to 87 % Inrush Current: typ. 96 A @ 230 V AC Operating Temperature: -40 °C to +60 °C Cooling: fanless free air convection Protections: Short circuit, over load, over temperature Waterproof Rating: IP66 Dimming Function: Triac / Leading & trailing edge phase cut (0-100%) Isolation Voltage: 3750 V AC (Input to Output) Dimensions (L x W x H): 256 mm x 78 mm x 47 mm Weight: approx. 1.45 kg Safety & EMC Certificates: ENEC, TUV, SAA, CB, CCC, CE, SELV, RoHS, REACH Manufacturer Warranty: 5 years Information about the KVF-24200-TDH The KVF-24200-TDH is a highly durable and efficient 200W constant voltage LED driver designed specifically to power professional 24V lighting systems. One of the standout features of this model is its flicker-free PWM dimming output (20 kHz), which provides smooth, precise brightness control from 0 to 100% and is fully compatible with both leading edge and trailing edge TRIAC dimmers. Housed in a rugged, IP66-rated waterproof enclosure and engineered to operate across extreme temperatures from -40 °C to +60 °C, this driver ensures unwavering reliability in both demanding indoor and harsh outdoor environments. Furthermore, the built-in active PFC function optimizes power factor and overall energy efficiency while delivering a highly stable 24V direct current. In addition to its exceptional dimming capabilities, this premium power supply features a fanless free air convection cooling system that guarantees completely silent operation and eliminates mechanical failure risks. It is equipped with comprehensive, auto-recovering protection mechanisms against short circuits, overloads, and over-temperature conditions, safeguarding your valuable LED installations against unexpected faults. Supported by an industry-leading 5-year manufacturer warranty and rigorously tested to meet global safety standards including ENEC, TUV, CE, and SELV, the KVF-24200-TDH is an outstanding, reliable choice for high-end dimmable lighting applications.

Technical Information & Details for the SCPOWER KVE-24320-TDHA-PH Power Supply Output Power: 320 W Output Voltage: 24 V DC Output Current: 13.33 A Input Voltage Range: 200 – 240 V AC, 50/60 Hz Efficiency: Up to 93% Voltage Ripple: 400 mVp-p Inrush Current: 120 A, 96 us @ 230 VAC Power Factor: > 0.95 @ full load Operating Temperature: -40 °C to +40 °C Cooling: Free air convection (fanless) Protection Functions: Short circuit, Over load, Over temperature Waterproof Rating: IP66 Dimming Function: PWM Output (TRIAC Leading/Trailing Edge) Dimensions (L x W x H): 232 mm x 78.1 mm x 25.3 mm Weight: 1 kg Safety & EMC Certificates: CE, UKCA, SELV, EN61347, EN55015 Dimming Range: 0-100% (0.1% depth) Manufacturer Warranty: 5 years Information on the SCPOWER KVE-24320-TDHA-PH The SCPOWER KVE-24320-TDHA-PH is a high-performance 320W TRIAC dimmable LED driver specifically engineered for professional lighting environments requiring precise control and high reliability. Featuring a slim 25.3mm profile and a robust IP66 waterproof rating, this constant voltage driver is ideal for both indoor and outdoor architectural applications. Its standout capability is the advanced Pulse-Width Modulation (PWM) output mode, which ensures a flicker-free dimming experience across a full 0-100% range with an impressive depth of 0.1%. By supporting both leading-edge and trailing-edge TRIAC dimmers, it offers maximum compatibility with existing lighting control systems, making it a versatile choice for high-end LED installations. Beyond its dimming prowess, this driver excels in energy efficiency and durability, achieving a typical efficiency of 93% and featuring built-in active PFC for a high power factor of over 0.95. The unit is designed for longevity, backed by a 5-year warranty and comprehensive safety protections including hiccup mode recovery for short circuits and overloads. Its wide operating temperature range from -40°C to +40°C and fanless cooling by free air convection ensure silent and stable operation even in demanding environments. This combination of a high-frequency 20KHz output and superior thermal management makes the KVE-24320-TDHA-PH a premier solution for heavy-duty LED lighting projects that demand both power and finesse.

Technische Eigenschaften des SC Power KVF-12100-TDH: Leistung: 100W Spannung: 12V Ausgangsstrom: 8,3A Konstantspannungsausgang Eingangsbereich: 180-240VAC Arbeitseffizienz: bis zu 85% TRIAC Dimmer: Phasenan-/abschnittsdimmung/ Phase Cut Einfache Installation IP66 Design; Geeignet für Outdoor-Installationen Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überlast, Überstrom und Überhitzung Eingebaute PFC Funktion Perfekte Kompatibilität; Flimmerfreie Dimmung Geeignet für LED-Beleuchtungssysteme und Displayanzeigen
