PCD-60-700B

40W AC Dimmbar LED Netzteile 40W Single Output AC Dimmable LED Power Supply

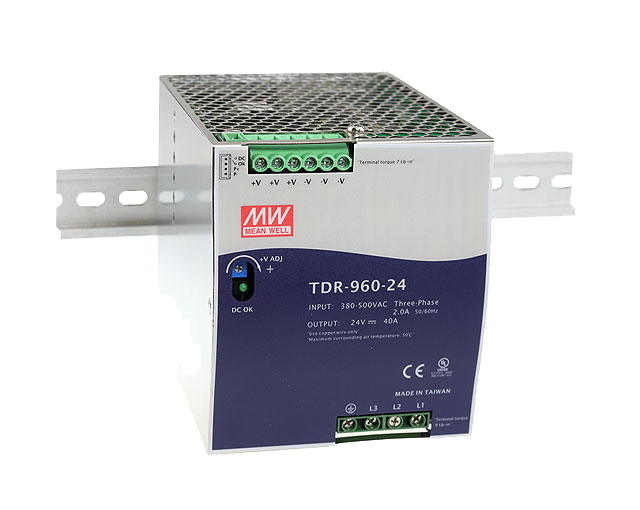

Technical Information & Details for the MEAN WELL TDR-960-24 Power Supply Output Power: 960 W Output Voltage: 24 V DC Output Current: 40 A Input Voltage Range: Three-Phase 340 – 550 VAC (Dual-phase possible) / 480 – 780 VDC Efficiency: up to 94.5 % Ripple & Noise: ≤ 180 mVp-p Inrush Current: 60 A (Cold Start) Power Factor: PF ≥ 0.88 / 400 VAC at full load Operating Temperature: -30 °C to +70 °C Cooling: Free air convection (fanless) Protection Functions: Short circuit, Overload, Over voltage, Over temperature DC OK Signal: Built-in relay contact Isolation Voltage: 3000 V AC between Input and Output Dimensions (W x H x D): 110 mm x 125.2 mm x 150 mm Weight: 2.47 kg Safety & EMC Certificates: UL508, AS/NZS62368.1, EAC, IEC62368-1 CB, EN55032 Installation: DIN Rail TS-35/7.5 or 15 Manufacturer Warranty: 3 Years Information about the MEAN WELL TDR-960-24 The MEAN WELL TDR-960-24 represents a high-performance solution for demanding three-phase industrial environments requiring substantial power in a compact 110mm width design. This 960W unit is engineered with active PFC function compliance and an outstanding efficiency rating of 94.5%, which significantly reduces power dissipation and heat generation within the control cabinet. Its ability to operate under dual-phase conditions provides essential redundancy and flexibility in electrical environments where a phase might be unstable or lost, ensuring that critical industrial processes remain powered and operational without immediate shutdown. Equipped with advanced current sharing capabilities, the TDR-960-24 allows for parallel connection of up to four units to reach a total output of 3840W, making it highly scalable for heavy-duty machinery and large-scale automation systems. The built-in constant current limiting circuit and the DC OK relay contact provide sophisticated monitoring and protection, allowing for seamless integration into PLC-controlled environments. Its robust metal housing and fanless free air convection cooling system ensure long-term reliability and a high MTBF, even when subjected to the heavy industry immunity levels required by modern manufacturing standards.

Technical Information & Details for the MEAN WELL HLG-150H-15A Rated Power: 150 W Rated Voltage: 15 V DC Rated Current: 10 A Constant Current Region: 7.5 – 15 V DC Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC Efficiency (typ.): 92 % Voltage Adj. Range: 13.5 – 17 V (via potentiometer) Current Adj. Range: 6 – 10 A (via potentiometer) IP Rating: IP65 Manufacturer Warranty: 7 Years Information about the MEAN WELL HLG-150H-15A The MEAN WELL HLG-150H-15A is a high-performance 150W LED driver featuring dual-mode constant voltage and constant current output. As an "A-Type" model, it includes internal potentiometers that allow installers to manually fine-tune both the output voltage and current levels for specific application needs. With an IP65 rating, this power supply is protected against dust and water jets, making it suitable for demanding indoor and outdoor environments. It is a reliable solution for LED street lighting, high-bay lighting, and architectural floodlights. The driver operates with a high efficiency of 92% and features active Power Factor Correction (PFC), ensuring long-term stability and a lifespan exceeding 62,000 hours.

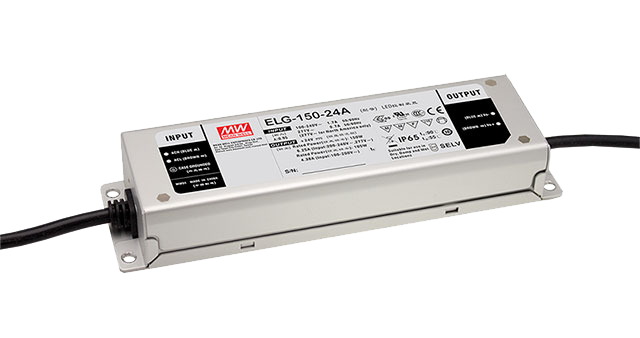

Technical Information & Details for MEAN WELL ELG-150-24A-3Y LED Driver Output Power: 150 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC) Output Voltage: 24 V DC (Constant current region: 12 – 24 V) Rated Current: 6.25 A Voltage Adjustment Range: 21.6 – 26.4 V (via internal potentiometer) Current Adjustment Range: 3.2 – 6.25 A (via internal potentiometer) Input Cable Option (-3Y): 3-wire AC input cable with Protective Earth (PE) ground wire (Class I) Ripple & Noise (max.): ≤ 200 mVp-p Voltage Tolerance: ±2.0% Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC Efficiency (Typ.): 88.5% Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load) Ingress Protection: IP65 (suitable for indoor and outdoor installations) Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C) Cooling: Fanless free air convection Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (28 – 34 V), Over temperature Form Factor / Housing: Metal housing design with 3-core input cable (Class I) Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm Weight: Approx. 0.95 kg Manufacturer Warranty: 5 Years Information about MEAN WELL ELG-150-24A-3Y The MEAN WELL ELG-150-24A-3Y is a high-performance 150W AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 24 V DC output with a rated current of up to 6.25 A (150 W output at 200–305 V AC). As an A-Type model, it features an IP65 rating and built-in potentiometers for adjusting both output voltage (21.6 to 26.4 V) and current (3.2 to 6.25 A). The -3Y designation indicates a factory-fitted 3-core AC input cable including dedicated Protective Earth ground for European compliance. Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.

Innerhalb der EU nicht als LED-Treiber zugelassen! Not approved as an LED driver within the EU! Eine zugelassene Alternative ist z.B. die LPF-25-Serie Technische Eigenschaften des MEAN WELL APV-25-12 Nennleistung: 25,2 W Eingangsbereich: 90 bis 264 VAC  Sekundärspannung: 12 VDC Widerstandsfähigkeit gegen 300 VAC Spannungsschwankungen Kompakte und geschlossene Bauweise Schutzart IP42 Konvektionsgekült Schutz vor Kurzschluss, Überspannung und Überlast Informationen zum MEAN WELL APV-25-12 Mit dem Modell APV-25-12 stellt Mean Well ein kompaktes und robustes LED-Schaltnetzteil mit einer gebräuchlichen 12 VDC Spannungsausgabe für Niederspannungsanlagen wie z. B. dekorative LED-Beleuchtungen und LED-Anzeigenschilder dar. Es verfügt über einen weltweit einsetzbaren Weitbereichseingang von 90 bis 264 VAC mit Derating bei 90 und 100 VAC, und liefert zudem eine geregelte Nennleistung von 25,2 W. Dabei beträgt der Ausgangsstrom 2,1 A. Die sämtliche Produktreihe von Mean Well ist weiterhin widerstandsfähig gegen 300 VAC Spannungsschwankungen für bis zu fünf Sekunden und zeichnet sich durch ihre kompakte und geschlossene Bauform aus. Mit der Schutzart IP42 im Kunststoffgehäuse sind der MeanWell APV-25-Netzteile für den Einsatz in verschiedensten Innenbereiche besonders gut geeignet. Darüber hinaus verfügt die lüfterlose Produktserie über die Kühlung durch freie Luftkonvektion, welche einen geräuscharmen Betrieb mit einer guten Arbeitseffizienz gewährleisten kann. Ausgangsseitig sind die LED-Netzgeräte der Mean Well APV-25-Serie kurzschlussfest und gegen Überspannung sowie Überlast geschützt. Die Produktreihe von MeanWell erfüllt zudem alle grundlegenden Sicherheits- und Störfestigkeitsstandards gemäß UL8750, EN61000-3-2, EN55035 sowie weitere Anforderungen, die für die LED-Schaltnetzteile im Beleuchtungssektor notwendig sind. Nur für den Einbau in Geräten, die einen anderen Primärgebrauch aufweisen als die Beleuchtung, z. B.Kopiergeräte, Overhead- und Diaprojektoren oder für Skalen- und Anzeigebeleuchtung.

  ↓ Auslaufmodell! Ersetzt durch APV-16-12 ↓
