Technical Information & Details for the MEAN WELL ELG-200-24A-3Y Power Supply Output Power: 199.68 W Output Voltage: 24 V DC Output Current: 2.78 – 5.55 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 92 % Ripple & Noise: ≤ 250 mVp-p Inrush Current: COLD START 60 A at 230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: Case temperature Tcase −40 °C to +90 °C Cooling: Fanless free air convection Protection Functions: Short circuit, overload, overvoltage, overtemperature Ingress Protection: IP65 (A-Type with built-in potentiometer) Withstand Voltage: I/P-O/P: 3.75 kV AC Dimensions (L x W x H): 244 mm x 71 mm x 37.5 mm Weight: approx. 1.22 kg Safety & EMC Certificates: UL8750, Type HL, EN61347-1, EAC, BIS Special Feature: 3-wire input configuration (3Y) with protective earth connection Manufacturer Warranty: 5 years Information about the MEAN WELL ELG-200-24A-3Y Engineered to satisfy rigorous industrial and architectural lighting criteria, the MEAN WELL ELG-200-24A-3Y delivers superior conversion efficiency coupled with exceptional physical durability. Encased in a rugged metal enclosure featuring an IP65 ingress protection rating, this driver functions reliably across both indoor locations and exposed outdoor setups. Field operators benefit significantly from a wide thermal performance window defined by a case temperature limit of Tcase −40 °C to +90 °C, ensuring flawless operation in freezing winters or extreme heat. Furthermore, the specialized 3-wire input configuration (3Y) incorporates a protective earth line to optimize electromagnetic compatibility and user safety. Operating through a dual constant voltage and constant current mechanism, the unit shields connected loads against overloads, overvoltages, and thermal runaways. An onboard potentiometer within the A-Type framework allows technicians to manually fine-tune both output current and voltage parameters precisely to project specifications. Accepting a universal input voltage span from 100 to 305 V AC, it smooths out grid fluctuations effectively while maintaining minimal standby power losses. Long-term operational reliability is comprehensively safeguarded by an industry-leading 5 years manufacturer warranty. Additional compliance with UL8750 Type HL standards qualifies the power supply for deployment within hazardous Class I, Division 2 classified zones. High electrical conversion efficiency peaking at 92 percent successfully diminishes internal thermal stress, extending component lifespan across continuous operation cycles. The entirely fanless cooling layout utilizes natural convection to eliminate acoustic output and remove vulnerable moving parts entirely. Strict adherence to international immunity directives guarantees seamless integration into complex electrical networks. Ultimately, this high-capacity power driver serves as an optimal solution for modern street illumination, large-scale bay lighting, and heavy-duty floodlighting projects. Professional system designers appreciate its unique blend of robust safety engineering, precise output adjustability, and structural longevity. Invest in a dependable power supply built to excel where standard commercial units fail.

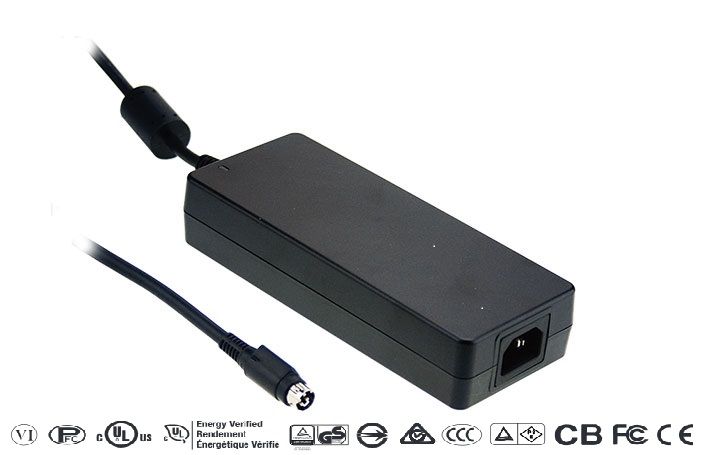

Technical Information & Details for MEAN WELL GST160A24-R7B Power Supply Output Power: 160 W Output Voltage: 24 V DC Output Current: 6.67 A Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz Efficiency: up to 93% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 95 A @115 VAC / 120 A @230 VAC No-Load Power Consumption: < 0.15 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protections: Short circuit, Overload, Over voltage, Over temperature Overvoltage Category: Class I Power Unit (with FG) Isolation Voltage: 3000 V AC input to output Dimensions (L x W x H): 175 mm x 72 mm x 35 mm Weight: approx. 660 g Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, CE, EAC, FCC, BSMI, CCC, PSE, RCM, CB LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about MEAN WELL GST160A24-R7B The MEAN WELL GST160A24-R7B is a highly dependable, green 160W desktop power adapter designed for 24V industrial applications, telecom equipment, and commercial installations. Compliant with top global energy standards such as Energy Efficiency Level VI and EU ErP, it optimizes power consumption with an exceptionally low no-load power dissipation of less than 0.15W. Featuring built-in active PFC function and a universal input range of 85 to 264 VAC, this Class I adapter delivers stable power housed in a 94V-0 flame-retardant plastic chassis. Equipped with a secure 4-pin snap-lock Power DIN connector (R7B), the unit ensures a vibration-resistant and lockable output connection that prevents accidental unplugging in critical applications. Its fanless architecture uses natural air convection to provide completely silent performance across a broad thermal range of −30 °C to +70 °C. Backed by full safety certifications, multi-layer protections against short circuits, overloads, overvoltages, and thermal conditions, plus a 3-year manufacturer warranty, it is an ideal choice for reliable industrial power supply requirements.

Technical Information & Details about the MEAN WELL HDR-100-24N Power Supply Output Power: 100.8 W Output Voltage: 24 V DC (nominal) Output Current: 4.2 A Current Range: 0 – 4.2 A Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational), 47 – 63 Hz Efficiency: typ. 90 % Ripple & Noise: ≤ 150 mVp-p Output Voltage Adjustment Range: 21.6 – 29 V DC (extended Non‑LPS range) Voltage Tolerance: ±2.0 % Line Regulation: ±1.0 % Load Regulation: ±1.0 % Setup, Rise Time: 500 ms, 60 ms @230 V AC / 115 V AC (full load) Hold-up Time: 30 ms @230 V AC / 12 ms @115 V AC (full load) AC Input Current (typ.): 3 A @115 V AC / 1.6 A @230 V AC Inrush Current: 35 A @115 V AC / 70 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Operating Temperature: −30 °C to +70 °C (with derating according to curve) Operating Humidity: 20 – 90 % RH, non‑condensing Storage Conditions: −40 °C to +85 °C, 10 – 95 % RH, non‑condensing Cooling: fanless free air convection Protection Features: short circuit (hiccup mode, auto recovery), overload (constant current limiting within 50–100 % of rated output voltage, auto recovery), overvoltage (shut down, re‑power to recover) Overvoltage Protection Threshold: 30 – 36 V DC Overvoltage Category: OVC III (up to 2000 m altitude) Isolation Voltage: 4000 V AC between input and output Isolation Resistance: ≥ 100 MΩ @ 500 V DC, 25 °C, 70 % RH Dimensions (W x H x D): 70 mm x 90 mm x 54.5 mm Weight: approx. 270 g Housing Material: insulating plastic housing, Class II, ultra‑slim 4‑SU step‑shape Mounting: DIN rail TS35/7.5 or TS35/15 Vibration Resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z) Safety & EMC Certificates: UL 62368‑1, UL 508, TUV BS EN/EN 61558‑2‑16, BS EN/EN 61558‑1, IEC 62368‑1, EAC TP TC 004, BSMI CNS15598‑1, BIS IS13252, compliant with BS EN/EN 55032, BS EN/EN 55035, BS EN/EN 61000‑6‑2, BS EN/EN 61204‑3 LPS Classification: Non‑LPS (extended adjustment range, higher usable output power up to 100.8 W) LED Indicator: Power‑On status LED Manufacturer Warranty: 3 years About the MEAN WELL HDR-100-24N The MEAN WELL HDR-100-24N is the Non‑LPS version of the HDR‑100‑24 models and delivers up to 100.8 W at 24 V DC and 4.2 A in an ultra‑slim 70 mm DIN‑rail housing. Its extended 21.6–29 V adjustment range offers additional voltage headroom for long cable runs, inductive loads and demanding 24 V control circuits, going well beyond the tighter LPS‑compliant window of “blank” units. Combined with universal input, high efficiency, fanless free air convection, comprehensive protection features and broad safety/EMC approvals, HDR-100-24N is a powerful, flexible 24 V supply for industrial control systems, building automation, valves, relays, sensors and OEM applications that must fully utilize the 100 W class.

Technical Information & Details for the MEAN WELL HLG-185H-24A Power Supply Output Power: 187.2 W Output Voltage: 24 V DC Output Current: 7.8 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: 94% Ripple & Noise: ≤ 150 mVp-p Voltage Adjustment Range: 22 – 27 V (via internal potentiometer) Current Adjustment Range: 3.9 – 7.8 A (via internal potentiometer) Power Factor (PF): ≥ 0.98 / 115 VAC, ≥ 0.95 / 230 VAC Operating Temperature: −40 °C to +90 °C (Case Temperature) Cooling: Fanless, free air convection Protection Functions: Short circuit, Over current, Over voltage, Over temperature Ingress Protection: IP65 (Dust-tight and protected against water jets) Isolation Voltage: 3750 V AC between Input and Output Dimensions (L x W x H): 228 mm x 68 mm x 38.8 mm Weight: approx. 1150 g Safety & EMC Certificates: UL8750, EN61347-1, EN61347-2-13, IP65, EAC, CE Manufacturer Warranty: 7 Years Information about the MEAN WELL HLG-185H-24A The MEAN WELL HLG-185H-24A is a high-performance 187.2W AC/DC LED driver designed to meet the rigorous demands of industrial lighting systems. A key characteristic of the "A-Type" model is its internal potentiometers, which allow for manual adjustment of the output voltage (22–27V) and output current (3.9–7.8A). This feature provides essential on-site flexibility, enabling users to fine-tune power levels to match the exact requirements of their LED arrays. Utilizing a dual-mode constant voltage and constant current architecture, it ensures stable performance across a wide range of applications. The heavy-duty metal enclosure carries an IP65 rating, providing superior protection against dust and water jets, making it the perfect choice for LED street lighting, parking area illumination, and industrial high-bay fixtures. Boasting a peak efficiency of 94%, the driver operates reliably via free air convection without the need for active cooling fans. With a typical life expectancy of over 62,000 hours and a generous 7-year manufacturer warranty, the HLG-185H-24A stands as a top-tier, maintenance-free solution for professional-grade installations.

Technical Information & Details for MEAN WELL ELG-100-24A-3Y Power Supply Output Power: 96 W (at 200–305 V AC) / 70 W (at 100–180 V AC) Output Voltage: 24 V DC (adjustable 21.6–26.4 V DC) Output Current: 4.0 A (adjustable 2.0–4.0 A) Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: Up to 88% Ripple & Noise: ≤ 200 mVp-p Inrush Current: COLD START 60 A @ 230 V AC No Load / Standby Power: < 0.5 W Operating Temperature: −40 °C to +90 °C (Case temperature Tcase) Cooling: Fanless free air convection Protections: Short circuit (Hiccup mode), Overload (Constant current limiting), Over voltage, Over temperature Isolation Voltage: 3750 V AC between Input and Output Adjustment Feature: Voltage and current adjustable via internal potentiometers (A-Type) Ingress Protection / Housing: IP65, Metal housing Dimensions (L x W x H): 199 mm x 63 mm x 35.5 mm Weight: approx. 850 g Safety & EMC Standards: UL8750 (Type HL), EN61347-1, EN61347-2-13, EN55015, EAC, CB, CE AC Input Connection: 3-wire AC input cable with Protective Earth grounding (3Y variant) Warranty: 5 Years Information about MEAN WELL ELG-100-24A-3Y Effortless output trim adjustments are provided by the MEAN WELL ELG-100-24A-3Y via integrated internal potentiometers (A-Type) designed for field calibration of output voltage and current parameters. A factory-installed 3-core AC power cord incorporating an explicit Protective Earth (PE) line ensures compliant safety grounding across commercial electrical installations. Housed within a metal enclosure with an IP65 protection rating, the driver is fully protected against particulate ingress and water spray. Operating quietly using natural free-air convection heat exchange, performance remains stable across case operating temperatures from -40 °C to +90 °C. Standard UL approval under UL8750 (Type HL) qualifies the unit for Class I, Division 2 hazardous locations, sustained by a 5 years manufacturer warranty.

Innerhalb der EU nicht als LED-Treiber zugelassen! Not approved as an LED driver within the EU! Eine zugelassene Alternative ist z.B. die LPF-25-Serie Technische Eigenschaften des MEAN WELL APV-35-24 Nennleistung: 36 W AC-Spannungsbereich: 90 bis 264 VAC  Sekundärspannung: 24 VDC 300 VAC Spannungsschwankungen widerstehen Kompakte Bauform Schutzart IP42 Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überspannung und Überlast Informationen zum MEAN WELL APV-35-24 Mit dem APV-35-24 stellt Mean Well ein kompaktes und robustes LED-Netzgerät für Niederspannungsanlagen wie z. B. LED-Dekorationen und LED-Leuchtreklamen dar. Es verfügt über einen weltweit anwendbaren Weitbereichseingang von 90 bis 264 VAC mit Derating bei 90 und 100 VAC und erzeugt eine geregelte Nennleistung von 36 W. Ausgegeben wird eine vielfältig einsetzbare 24 VDC Konstantspannung sowie ein Ausgangsstrom von 1,5 A. Die sämtliche Mean Well APV-35-Serie ist des Weiteren widerstandsfähig gegen 300 VAC Spannungsschwankungen für bis zu fünf Sekunden. Damit ist eine stabile Stromversorgung und ein sicherer Betrieb gewährleistet. Mit der kompakten Bauweise sowie der Schutzart IP42 eignen sich die LED-Schaltnetzteile von MeanWell besonders gut für Indoor-Installationen. Die konvektionsgekühlte Produktreihe sorgt weiterhin für einen geräuscharmen Betrieb und kann einen Wirkungsgrad von bis zu 85% erreichen. Nicht zuletzt sind die APV-35-Modelle von Mean Well ausgangsseitig kurzschlussfest und bieten einen Schutz gegen Überlast sowie Überspannung. Die Produktserie erfülle dabei alle grundlegenden Sicherheits- und Störfestigkeitsstandards gemäß UL8750, EN61000-3-2, EN55035 sowie weitere Normen. Mit hoher Zuverlässigkeit sowie herausragender Kosteneffizienz ist die MeanWell APV-35-Serie die optimale Lösung für LED-Beleuchtungen mit Niederspannungen. Nur für den Einbau in Geräten, die einen anderen Primärgebrauch aufweisen als die Beleuchtung, z. B.Kopiergeräte, Overhead- und Diaprojektoren oder für Skalen- und Anzeigebeleuchtung.
