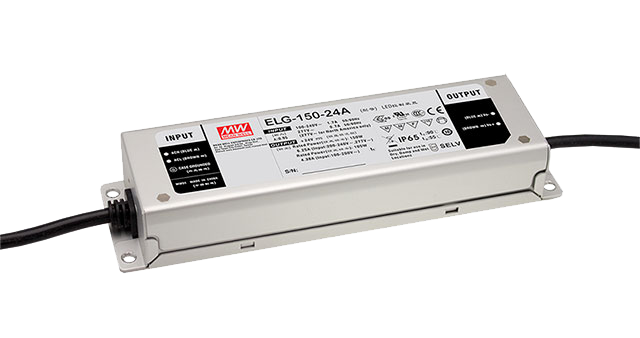

Technical Information & Details for MEAN WELL ELG-150-24A-3Y LED Driver Output Power: 150 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC) Output Voltage: 24 V DC (Constant current region: 12 – 24 V) Rated Current: 6.25 A Voltage Adjustment Range: 21.6 – 26.4 V (via internal potentiometer) Current Adjustment Range: 3.2 – 6.25 A (via internal potentiometer) Input Cable Option (-3Y): 3-wire AC input cable with Protective Earth (PE) ground wire (Class I) Ripple & Noise (max.): ≤ 200 mVp-p Voltage Tolerance: ±2.0% Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC Efficiency (Typ.): 88.5% Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load) Ingress Protection: IP65 (suitable for indoor and outdoor installations) Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C) Cooling: Fanless free air convection Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (28 – 34 V), Over temperature Form Factor / Housing: Metal housing design with 3-core input cable (Class I) Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm Weight: Approx. 0.95 kg Manufacturer Warranty: 5 Years Information about MEAN WELL ELG-150-24A-3Y The MEAN WELL ELG-150-24A-3Y is a high-performance 150W AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 24 V DC output with a rated current of up to 6.25 A (150 W output at 200–305 V AC). As an A-Type model, it features an IP65 rating and built-in potentiometers for adjusting both output voltage (21.6 to 26.4 V) and current (3.2 to 6.25 A). The -3Y designation indicates a factory-fitted 3-core AC input cable including dedicated Protective Earth ground for European compliance. Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.

Technical Information & Details for MEAN WELL HLG-320H-24A Power Supply Rated Power: 320.16 W Output Voltage: 24 V DC Rated Current: 13.34 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 94% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 70 A @ 230 V AC Voltage Adj. Range: 21 – 26 V (via built-in potentiometer) Current Adj. Range: 6.67 – 13.34 A (via built-in potentiometer) Operating Temperature: −40 °C to +90 °C (case temperature) Cooling: fanless free air convection Protections: Short circuit, Over current, Over voltage, Over temperature IP Rating: IP65 rated Isolation Voltage: 3750 V AC between Input and Output Dimensions (L x W x H): 252 mm x 90 mm x 43.8 mm Weight: approx. 1880 g Safety & EMC Standards: UL8750, EN61347-1, EN61347-2-13, IP65, PSE Manufacturer Warranty: 7 Years Information on the MEAN WELL HLG-320H-24A The MEAN WELL HLG-320H-24A is a flagship industrial LED driver designed for peak performance and long-term reliability in demanding environments. This A-Type model is distinguished by its user-accessible internal potentiometers, allowing for the manual adjustment of both voltage and current levels to perfectly match the requirements of the connected load. It operates with a dual-mode output, seamlessly providing Constant Voltage (CV) and Constant Current (CC) characteristics, which is essential for professional LED lighting and battery charging applications. Built with a high-grade metal enclosure and rated at IP65, the unit is highly resistant to dust and moisture ingress. A key strength is its advanced circuit design featuring Active PFC and an impressive 94% efficiency, which minimizes power loss and allows the unit to operate reliably without fans even at extreme temperatures up to +90 °C. With a typical lifetime of over 62,000 hours and an industry-leading 7-year warranty, the HLG-320H-24A provides ultimate peace of mind for high-bay lighting, street lighting, and parking lot installations where maintenance-free operation is a priority.

Technical Information & Details for MEAN WELL ELG-100-24A-3Y Power Supply Output Power: 96 W (at 200–305 V AC) / 70 W (at 100–180 V AC) Output Voltage: 24 V DC (adjustable 21.6–26.4 V DC) Output Current: 4.0 A (adjustable 2.0–4.0 A) Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: Up to 88% Ripple & Noise: ≤ 200 mVp-p Inrush Current: COLD START 60 A @ 230 V AC No Load / Standby Power: < 0.5 W Operating Temperature: −40 °C to +90 °C (Case temperature Tcase) Cooling: Fanless free air convection Protections: Short circuit (Hiccup mode), Overload (Constant current limiting), Over voltage, Over temperature Isolation Voltage: 3750 V AC between Input and Output Adjustment Feature: Voltage and current adjustable via internal potentiometers (A-Type) Ingress Protection / Housing: IP65, Metal housing Dimensions (L x W x H): 199 mm x 63 mm x 35.5 mm Weight: approx. 850 g Safety & EMC Standards: UL8750 (Type HL), EN61347-1, EN61347-2-13, EN55015, EAC, CB, CE AC Input Connection: 3-wire AC input cable with Protective Earth grounding (3Y variant) Warranty: 5 Years Information about MEAN WELL ELG-100-24A-3Y Effortless output trim adjustments are provided by the MEAN WELL ELG-100-24A-3Y via integrated internal potentiometers (A-Type) designed for field calibration of output voltage and current parameters. A factory-installed 3-core AC power cord incorporating an explicit Protective Earth (PE) line ensures compliant safety grounding across commercial electrical installations. Housed within a metal enclosure with an IP65 protection rating, the driver is fully protected against particulate ingress and water spray. Operating quietly using natural free-air convection heat exchange, performance remains stable across case operating temperatures from -40 °C to +90 °C. Standard UL approval under UL8750 (Type HL) qualifies the unit for Class I, Division 2 hazardous locations, sustained by a 5 years manufacturer warranty.

Technical Information & Details about the MEAN WELL HDR-100-24N Power Supply Output Power: 100.8 W Output Voltage: 24 V DC (nominal) Output Current: 4.2 A Current Range: 0 – 4.2 A Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational), 47 – 63 Hz Efficiency: typ. 90 % Ripple & Noise: ≤ 150 mVp-p Output Voltage Adjustment Range: 21.6 – 29 V DC (extended Non‑LPS range) Voltage Tolerance: ±2.0 % Line Regulation: ±1.0 % Load Regulation: ±1.0 % Setup, Rise Time: 500 ms, 60 ms @230 V AC / 115 V AC (full load) Hold-up Time: 30 ms @230 V AC / 12 ms @115 V AC (full load) AC Input Current (typ.): 3 A @115 V AC / 1.6 A @230 V AC Inrush Current: 35 A @115 V AC / 70 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Operating Temperature: −30 °C to +70 °C (with derating according to curve) Operating Humidity: 20 – 90 % RH, non‑condensing Storage Conditions: −40 °C to +85 °C, 10 – 95 % RH, non‑condensing Cooling: fanless free air convection Protection Features: short circuit (hiccup mode, auto recovery), overload (constant current limiting within 50–100 % of rated output voltage, auto recovery), overvoltage (shut down, re‑power to recover) Overvoltage Protection Threshold: 30 – 36 V DC Overvoltage Category: OVC III (up to 2000 m altitude) Isolation Voltage: 4000 V AC between input and output Isolation Resistance: ≥ 100 MΩ @ 500 V DC, 25 °C, 70 % RH Dimensions (W x H x D): 70 mm x 90 mm x 54.5 mm Weight: approx. 270 g Housing Material: insulating plastic housing, Class II, ultra‑slim 4‑SU step‑shape Mounting: DIN rail TS35/7.5 or TS35/15 Vibration Resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z) Safety & EMC Certificates: UL 62368‑1, UL 508, TUV BS EN/EN 61558‑2‑16, BS EN/EN 61558‑1, IEC 62368‑1, EAC TP TC 004, BSMI CNS15598‑1, BIS IS13252, compliant with BS EN/EN 55032, BS EN/EN 55035, BS EN/EN 61000‑6‑2, BS EN/EN 61204‑3 LPS Classification: Non‑LPS (extended adjustment range, higher usable output power up to 100.8 W) LED Indicator: Power‑On status LED Manufacturer Warranty: 3 years About the MEAN WELL HDR-100-24N The MEAN WELL HDR-100-24N is the Non‑LPS version of the HDR‑100‑24 models and delivers up to 100.8 W at 24 V DC and 4.2 A in an ultra‑slim 70 mm DIN‑rail housing. Its extended 21.6–29 V adjustment range offers additional voltage headroom for long cable runs, inductive loads and demanding 24 V control circuits, going well beyond the tighter LPS‑compliant window of “blank” units. Combined with universal input, high efficiency, fanless free air convection, comprehensive protection features and broad safety/EMC approvals, HDR-100-24N is a powerful, flexible 24 V supply for industrial control systems, building automation, valves, relays, sensors and OEM applications that must fully utilize the 100 W class.

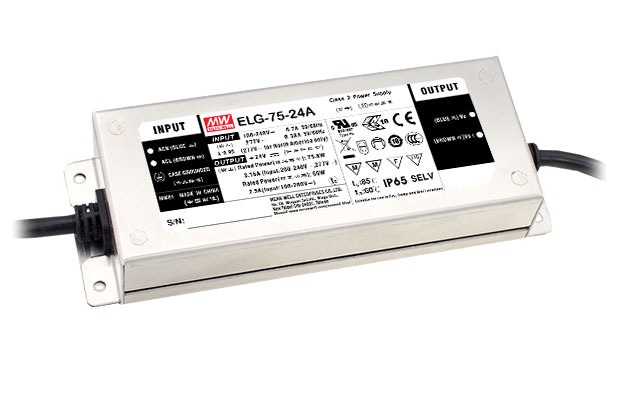

Technical Information & Details for the MEAN WELL ELG-75-24 Power Supply Output Power: 75.6 W Output Voltage: 24 V DC Output Current: 3.15 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 88.0% Ripple & Noise: ≤ 200 mVp-p Inrush Current: Cold Start max. 50 A @230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +85 °C (Case Temperature) Cooling: Fanless, free air convection Protections: Short circuit, over current, over voltage, over temperature Isolation Voltage: 3750 V AC (Input to Output) Dimensions (L x W x H): 180 mm x 63 mm x 35.5 mm Weight: approx. 800 g Safety & EMC Certificates: UL, CE, CB, EAC, BIS, KC, ENEC IP Rating: IP65 / IP67 (depending on model) Manufacturer Warranty: 5 Years Information about the MEAN WELL ELG-75-24 The MEAN WELL ELG-75 series stands out with its exceptionally robust construction and innovative dual-mode design (constant voltage and constant current), making it a premium choice for highly demanding LED lighting applications. The ELG-75-24 model delivers a stable and precise output of 24 V DC at a rated current of 3.15 A, while its heavy-duty metal housing with either IP65 or IP67 ingress protection guarantees outstanding resilience against dust and moisture for both indoor and outdoor installations. Featuring an extraordinarily wide input voltage range from 100 to 305 V AC alongside a built-in active PFC function (Power Factor Correction), this LED driver operates with remarkable energy efficiency and unwavering reliability, even under heavily fluctuating grid conditions. A major operational strength of the ELG-75-24 is its impressive efficiency of up to 88% paired with an ultra-low no-load power consumption of under 0.5 W, actively helping to minimize ongoing energy costs and meet strict global environmental standards. Furthermore, the unit is equipped with comprehensive safety and protection mechanisms against short circuits, overvoltage, overcurrent, and overtemperature, all of which feature automatic recovery functionality once the fault is cleared. Complemented by an extended typical lifespan exceeding 50,000 hours and backed by an industry-leading 5-year manufacturer warranty, it provides system integrators and electricians with a zero-maintenance, future-proof solution perfect for LED street lighting, architectural uplighting, and high-bay industrial luminaires.

Technische Eigenschaften des MEAN WELL ELG-240-24B-3Y Leistung: 240W Aluminiumgehäuse Integriertes PFC Standby Ladeverbrauch <0,5W IP67 3 in 1 Dimmfunktion (0~10Vdc, 10V PWM Signal, Widerstand) Mit PE (Varianten ohne 3Y: PE am Gehäuse!) Allgemeine Lebensdauer >50.000Std. 5 Jahre Garantie Produktbeschreibung zur MEAN WELL ELG-240 Serie Bei der MEAN WELL ELG-240 Serie handelt es sich um 240W AC/DC LED Netzteile, die im dualen Modus einen Konstantstrom- und Konstantspannungsausgang unterstützen. Die ELG-240 Netzteile arbeiten mit einem 100~305VAC Eingangsbereich und bieten verschiedene Ausgangsspannungen im Bereich von 24V bis 54V an. Dank des 93% hohem Wirkungsgrads und dem lüfterlosen Design kann die Serie unter freier Luftkonvektion im Temperaturbereich von -40°C bis +90°C betrieben werden. Durch das verwendete Aluminiumgehäuse und den Schutzklassen IP65/67 finden MEAN WELL ELG-240 Netzteile Anwendung sowohl Indoor-, als auch im Outdoorbereich. Die Serie verfügt weiterhin über verschiedene zusätzliche Funktionen, wie 3 in 1 Dimmung, Smart-Timer-Dimmung oder DALI, welche eine hohe Flexibilität in LED Beleuchtungsanwendungen garantieren.
