Technical Information & Details for MEAN WELL ELG-150-24DA-3Y LED Driver Output Power: 150 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC) Output Voltage: 24 V DC (Constant current region: 12 – 24 V) Rated Current: 6.25 A Dimming Function (DALI Interface): DALI technology (Digital Addressable Lighting Interface) & Push Dimming Ripple & Noise (max.): ≤ 200 mVp-p Voltage Tolerance: ±2.0% Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC Power Cord Option (3Y Specification): 3-wire AC input cable (Class I with safety earth ground) for European / global standard installations Efficiency (Typ.): 89% Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load) Ingress Protection: IP67 (suitable for indoor and outdoor installations) Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C) Cooling: Fanless free air convection Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (27 – 34 V), Over temperature Form Factor / Housing: Metal housing design with functional Ground (Class I) Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm Weight: Approx. 0.95 kg Manufacturer Warranty: 5 Years Information about MEAN WELL ELG-150-24DA-3Y The MEAN WELL ELG-150-24DA-3Y is a high-performance 150W AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 24 V DC output with a rated current of up to 6.25 A (150 W output at 200–305 V AC). As a DA-Type model, it features an IP67 rating and built-in DALI technology (along with push dimming support) for seamless integration into smart lighting management systems. The 3Y suffix designates the model configured with a 3-wire AC input cable with protective earth grounding for compliance with international safety standards. Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty. Technical Information & Details for MEAN WELL ELG-150-24DA-3Y LED Driver Output Power: 150 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC) Output Voltage: 24 V DC (Constant current region: 12 – 24 V) Rated Current: 6.25 A Dimming Function (DALI Interface): DALI technology (Digital Addressable Lighting Interface) & Push Dimming Ripple & Noise (max.): ≤ 200 mVp-p Voltage Tolerance: ±2.0% Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC Power Cord Option (3Y Specification): 3-wire AC input cable (Class I with safety earth ground) for European / global standard installations Efficiency (Typ.): 89% Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load) Ingress Protection: IP67 (suitable for indoor and outdoor installations) Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C) Cooling: Fanless free air convection Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (27 – 34 V), Over temperature Form Factor / Housing: Metal housing design with functional Ground (Class I) Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm Weight: Approx. 0.95 kg Manufacturer Warranty: 5 Years Information about MEAN WELL ELG-150-24DA-3Y The MEAN WELL ELG-150-24DA-3Y is a high-performance 150W AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 24 V DC output with a rated current of up to 6.25 A (150 W output at 200–305 V AC). As a DA-Type model, it features an IP67 rating and built-in DALI technology (along with push dimming support) for seamless integration into smart lighting management systems. The 3Y suffix designates the model configured with a 3-wire AC input cable with protective earth grounding for compliance with international safety standards. Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.

Technical Information & Details for MEAN WELL ELG-100-24DA-3Y Power Supply Output Power: 96 W (at 200–305 V AC) / 70 W (at 100–180 V AC) Output Voltage: 24 V DC Output Current: 4.0 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: Up to 88% Ripple & Noise: ≤ 200 mVp-p Inrush Current: COLD START 60 A @ 230 V AC No Load / Standby Power: < 0.5 W Operating Temperature: −40 °C to +90 °C (Case temperature Tcase) Cooling: Fanless free air convection Protections: Short circuit (Hiccup mode), Overload (Constant current limiting), Over voltage, Over temperature Isolation Voltage: 3750 V AC between Input and Output Dimming Interface: DALI technology (DA-Type, complying with IEC62386) Ingress Protection / Housing: IP67, Metal housing Dimensions (L x W x H): 199 mm x 63 mm x 35.5 mm Weight: approx. 850 g Safety & EMC Standards: UL8750 (Type HL), EN61347-1, EN61347-2-13, EN55015, EAC, CB, CE AC Input Connection: 3-wire AC input cable with Protective Earth grounding (3Y variant) Warranty: 5 Years Information about MEAN WELL ELG-100-24DA-3Y Engineered for intelligent building automation, the MEAN WELL ELG-100-24DA-3Y combines advanced DALI dimming functionality (DA-Type per IEC62386) with enhanced electrical safety via a 3-wire AC power cable containing a dedicated Protective Earth (PE) line. Encased in a fully potted metallic housing rated at IP67, it remains immune to dust particles and temporary water immersion in outdoor applications. Operational noise is completely eliminated through fanless thermal convection, supporting steady performance across case temperatures from -40 °C to +90 °C. Certified under UL8750 (Type HL) for Class I, Division 2 hazardous environments, the unit includes a comprehensive 5 years manufacturer warranty.

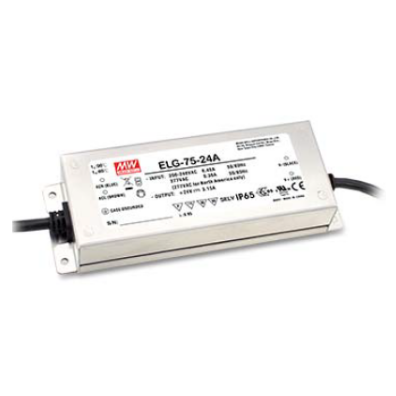

Technical Specifications & Details for MEAN WELL ELG-75-24DA-3Y Power Supply Output Power: 75.6 W Output Voltage: 24 V DC Output Current: 3.15 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 88 % Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 50 A / 500 ms @ 230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +85 °C (Case) Cooling: fanless natural convection Protection Functions: Short Circuit (Hiccup), Overload, Overvoltage, Over Temperature (Auto-Recovery) Overvoltage Category: OVC II Isolation Voltage: 3.75 kV AC IP-OP, 2 kV AC IP-FG, 1.5 kV AC OP-FG Dimensions (L x W x H): 180 mm x 63 mm x 35.5 mm Weight: ca. 800 g Safety & EMC Certifications: CE, UL8750, IEC/EN 61347-1/-2-13, IP67, EAC, DALI LED Indicator: none Manufacturer Warranty: 3 Years Information on MEAN WELL ELG-75-24DA-3Y The MEAN WELL ELG-75-24DA-3Y is a professional DALI-compatible 75 W LED driver power supply from the DA-Series featuring full support for IEC62386 DALI protocol (16 groups, 64 addresses) for intelligent lighting control in modern buildings. The universal input voltage range 100–305 V AC with integrated active PFC circuit and DC compatibility offers global flexibility, while achieving 88 % efficiency and standby consumption below 0.5 W meets the highest energy standards. The IP67-certified aluminum housing with 3-wire protective earth cable ensures complete protection in the most demanding outdoor and industrial environments. With -40 °C to +85 °C case temperature range, 6kV surge immunity, and fanless convection cooling, it enables reliable continuous operation under extreme conditions. SELV-compliant protection circuits with automatic recovery and comprehensive certifications including UL8750, IEC/EN 61347-1/-2-13 plus EMC standards EN55015 make it the ideal partner for smart office lighting, hotel lighting, retail lighting, and centralized DALI lighting management systems. The 3-year manufacturer warranty guarantees long-term operational reliability of this forward-thinking DALI LED driver.

Technical Information & Details for MEAN WELL ELG-200-24DA-3Y Power Supply Output Power: 199.68 W Output Current: 8.33 A Output Voltage: 24 V DC Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 92% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 60 A @230 VAC Standby Power Consumption: < 0.5 W Operating Temperature: −40 °C to +90 °C (case temperature Tcase) Cooling: fanless free air convection Protections: short circuit, over current, over voltage, over temperature Overvoltage Category: OVC II Isolation Voltage: 3750 V AC input to output Dimensions (L x W x H): 244 mm x 71 mm x 37.5 mm Weight: approx. 1220 g Safety & EMC Certificates: CE, UL8750 (Type HL), EN61347-1, EN61347-2-13, EAC, BIS Protection Rating & Feature: IP67, DALI interface (IEC62386), 3-wire AC input with PE (3Y) Manufacturer Warranty: 5 years Information on the MEAN WELL ELG-200-24DA-3Y Serving as a high-performance power foundation for automated 24 V LED installations, the MEAN WELL ELG-200-24DA-3Y integrates seamless digital addressable control into a heavy-duty chassis. Its onboard DALI interface complies fully with IEC62386 standards, providing exact system-level control over dimming and energy output. Encased in a fully potted housing built to IP67 ingress protection, it guarantees total immunity against moisture ingress and particulate wear. The 3-wire input cable with a dedicated earth ground line (3Y configuration) enables simplified electrical compliance, supplemented by a hazardous location Type HL rating for Class I, Division 2 environments. Engineered for demanding industrial setups with 5G vibration resistance, the unit comes standard with a long-term 5-year warranty.

Technical Specifications & Details for MEAN WELL ELG-75-24B-3Y Power Supply Output Power: 75.6 W Output Voltage: 24 V DC (adjustable 21.6–26.4 V) Output Current: 3.15 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 88 % Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 50 A / 500 ms @ 230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +85 °C (Case) Cooling: fanless natural convection Protection Functions: Short Circuit (Hiccup), Overload, Overvoltage, Over Temperature (Auto-Recovery) Overvoltage Category: OVC II Isolation Voltage: 3.75 kV AC IP-OP, 2 kV AC IP-FG, 1.5 kV AC OP-FG Dimensions (L x W x H): 180 mm x 63 mm x 35.5 mm Weight: ca. 800 g Safety & EMC Certifications: CE, UL8750, IEC/EN 61347-1/-2-13, IP67, EAC LED Indicator: none Manufacturer Warranty: 3 Years Information on MEAN WELL ELG-75-24B-3Y The MEAN WELL ELG-75-24B-3Y is an advanced 75 W LED driver power supply from the B-Series featuring professional 3-in-1 dimming function (0-10V, PWM, resistance) for maximum flexibility in modern lighting systems. The wide input voltage range of 100–305 V AC combined with DC compatibility enables worldwide deployment, while achieving up to 88 % efficiency and ultra-low no-load consumption below 0.5 W meets the highest energy standards. The rugged IP67 aluminum housing with integrated protective earth provides complete protection against dust, water, and mechanical impacts for the most demanding outdoor applications. With the extended operating temperature range from -40 °C to +85 °C case temperature and built-in PFC circuit, it delivers stable performance even under extreme conditions. Comprehensive protection features with hiccup mode and automatic recovery safeguard the unit and LEDs optimally, while premium certifications including UL8750, IEC/EN 61347, and 6kV surge immunity guarantee the highest safety standards. Perfect for dimmable LED floodlights, street lighting, facade lighting, and professional industrial applications, the 3-year manufacturer warranty provides long-term investment security.

Technische Eigenschaften des SC Power KVF-24150-TDH: Leistung: 150W Spannung: 24V Ausgangsstrom: 6,25A Konstantspannungsausgang Eingangsbereich: 200-240VAC Arbeitseffizienz: bis zu 90% TRIAC Dimmer: Phasenan-/abschnittsdimmung/ Phase Cut Einfache Installation IP66 Design; Geeignet für Outdoor-Installationen Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überlast, Überstrom und Überhitzung Eingebaute PFC Funktion Perfekte Kompatibilität; Flimmerfreie Dimmung Geeignet für LED-Beleuchtungssysteme und Displayanzeigen
