ELG-150-24DA-3Y

Quantity	Unit price
from 1	€42.50*
from 5	€40.40*
from 10	€38.70*
from 20	€37.50*

Prices excl. VAT plus shipping costs zzgl. Versandkosten

Available, delivery time: 1-3 days

Product number: 16875

Product information "ELG-150-24DA-3Y"

Technical Information & Details for MEAN WELL ELG-150-24DA-3Y LED Driver

Output Power: 150 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC)
Output Voltage: 24 V DC (Constant current region: 12 – 24 V)
Rated Current: 6.25 A
Dimming Function (DALI Interface): DALI technology (Digital Addressable Lighting Interface) & Push Dimming
Ripple & Noise (max.): ≤ 200 mVp-p
Voltage Tolerance: ±2.0%
Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC
Power Cord Option (3Y Specification): 3-wire AC input cable (Class I with safety earth ground) for European / global standard installations
Efficiency (Typ.): 89%
Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load)
Ingress Protection: IP67 (suitable for indoor and outdoor installations)
Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C)
Cooling: Fanless free air convection
Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (27 – 34 V), Over temperature
Form Factor / Housing: Metal housing design with functional Ground (Class I)
Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm
Weight: Approx. 0.95 kg
Manufacturer Warranty: 5 Years

Information about MEAN WELL ELG-150-24DA-3Y

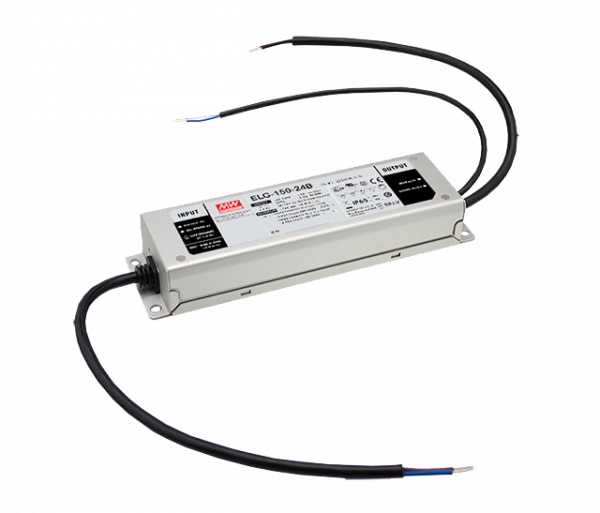

The MEAN WELL ELG-150-24DA-3Y is a high-performance 150W AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 24 V DC output with a rated current of up to 6.25 A (150 W output at 200–305 V AC). As a DA-Type model, it features an IP67 rating and built-in DALI technology (along with push dimming support) for seamless integration into smart lighting management systems. The 3Y suffix designates the model configured with a 3-wire AC input cable with protective earth grounding for compliance with international safety standards.

Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.

Technical Information & Details for MEAN WELL ELG-150-24DA-3Y LED Driver

Output Power: 150 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC)
Output Voltage: 24 V DC (Constant current region: 12 – 24 V)
Rated Current: 6.25 A
Dimming Function (DALI Interface): DALI technology (Digital Addressable Lighting Interface) & Push Dimming
Ripple & Noise (max.): ≤ 200 mVp-p
Voltage Tolerance: ±2.0%
Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC
Power Cord Option (3Y Specification): 3-wire AC input cable (Class I with safety earth ground) for European / global standard installations
Efficiency (Typ.): 89%
Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load)
Ingress Protection: IP67 (suitable for indoor and outdoor installations)
Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C)
Cooling: Fanless free air convection
Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (27 – 34 V), Over temperature
Form Factor / Housing: Metal housing design with functional Ground (Class I)
Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm
Weight: Approx. 0.95 kg
Manufacturer Warranty: 5 Years

Information about MEAN WELL ELG-150-24DA-3Y

Weiterführende Links zu "ELG-150-24DA-3Y"

Fragen zum Artikel?
Weitere Artikel von MEAN WELL

Verfügbare Downloads

Download ELG-150 Datenblatt

Eigenschaften für "ELG-150-24DA-3Y"

Approval:	CB, CCC, CE, ENEC, MM, SELV, TÜV, UL
Dimming:	DALI dimmung
Efficiency:	89%
Height:	35,5
Length:	219
Protection Class:	Class I
Protection Rating:	IP67
Rated current:	6,25
Series:	ELG
Voltage:	24 VDC
Warranty:	5 years
Wattage:	150 W
Weight:	0,95kg
Width:	63
