Technical Information & Details on MEAN WELL HLG-40H-24A Power Supply Output Power: 40 W Output Voltage: 24 V DC Output Current: 1.67 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 88.5 % Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 50 A @ 230 VAC No-Load Power: low Operating Temperature: −40 °C to +80 °C Cooling: natural convection Protections: Short circuit (Hiccup), Overload, Overvoltage, Over temperature Overvoltage Category: II Isolation Voltage: 3.75 kV AC between input and output Dimensions (H x W x D): 17 x 61.5 x 147.2 mm Weight: ca. 730 g Safety & EMC Certifications: CE, UL8750, TUV, CB, EAC, IP65/IP67 Manufacturer Warranty: 5 years Information on MEAN WELL HLG-40H-24A The MEAN WELL HLG-40H-24A is a reliable 40 W LED driver power supply featuring Constant Voltage + Constant Current (CV+CC) functionality and adjustable output (22–27 V), tailored for demanding LED applications. Its core strengths include a wide temperature range from -40 °C to +80 °C, IP65/IP67-certified metal housing for extreme weather exposure, and high efficiency up to 88.5 % for superior energy savings. Equipped with a universal input range of 90–305 V AC, rapid fault recovery, and exceptional longevity over 300,000 hours, it's outstanding for commercial lighting, outdoor installations, and industrial setups.

Technical Information & Details for MEAN WELL HLG-80H-24A Power Supply Output Power: 81.6 W Output Voltage: 24 V DC Output Current: 3.4 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: 90.5 % Ripple & Noise: max. 150 mVp-p Inrush Current: 70 A at 230 V AC Operating Temperature: −40 °C to +80 °C (Case) Cooling: fanless free air convection Protection Functions: Short circuit, Over current, Over voltage, Over temperature Isolation Voltage: 3750 V AC (Input to Output) Dimensions (L x W x H): 195.6 mm x 61.5 mm x 38.8 mm Weight: approx. 840 g Safety & EMC Certificates: UL8750, EN61347-1, IP65, CE, EAC, KC Manufacturer Warranty: 7 Years Information about the MEAN WELL HLG-80H-24A The MEAN WELL HLG-80H-24A is a high-performance 81.6W AC/DC driver designed for superior reliability in professional lighting and industrial environments. A key feature of this A-Type model is its internal adjustability, allowing users to manually fine-tune the output voltage and current levels via built-in potentiometers. This ensures the power supply can be perfectly calibrated to specific load requirements. The unit operates with a dual-mode output, functioning effectively in both Constant Voltage and Constant Current regions. Housed in a fully encapsulated metal casing with an IP65 rating, the HLG-80H-24A is well-protected against dust and moisture, making it a dependable choice for outdoor signage, street lighting, and architectural installations. It features built-in active Power Factor Correction and a 90.5% efficiency rating, contributing to energy savings and minimal heat generation. With a typical life expectancy exceeding 62,000 hours and a comprehensive 7-year manufacturer warranty, this 24V model provides the long-term stability needed for mission-critical industrial automation and high-quality LED systems.

Technical Information & Details for the MEAN WELL HLG-100H-24A Power Supply Output Power: 96 W Output Voltage: 24 V DC Output Current: 4 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 93 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @ 230 VAC Leakage Current: < 0.75 mA / 277 VAC Operating Temperature: −40 °C to +80 °C (T-case) Cooling: Fanless free air convection Protection Functions: Short circuit, Over current, Over voltage, Over temperature IP Rating: IP65 Isolation Voltage: 3750 V AC (Input to Output) Dimensions (L x W x H): 220 mm x 68 mm x 38.8 mm Weight: approx. 1.12 kg Safety & EMC Certificates: UL8750, TUV EN61347-1, EN61347-2-13, PSE, KC, EAC, CB, CE Adjustability: Output voltage (22–27V) and current (2.5–4A) adjustable via internal potentiometer Manufacturer Warranty: 7 Years Details about the MEAN WELL HLG-100H-24A The MEAN WELL HLG-100H-24A is a premium-grade 100W LED driver designed for superior reliability in harsh industrial and outdoor environments. This "A-Type" model is distinguished by its IP65-rated metal enclosure, which includes built-in internal potentiometers for manual adjustment of both output voltage and current levels. This feature provides essential flexibility for installers to fine-tune the power delivery to match specific LED array requirements. A core technical advantage is the dual-mode constant voltage and constant current output, allowing the unit to serve as a versatile solution for various lighting architectures. With an impressive efficiency of up to 93 % and a built-in active PFC function, the driver minimizes energy loss and meets stringent global power factor requirements. Its fanless design ensures silent operation and contributes to a typical lifetime of over 62,000 hours, even when operating at extreme case temperatures up to +80 °C. Rated for "Type HL" hazardous locations, the HLG-100H-24A is ideal for high-bay lighting, parking lot illumination, and greenhouse applications. The industry-leading 7-year manufacturer warranty provides long-term peace of mind, reflecting the high-end engineering and components used in this series.

Innerhalb der EU nicht als LED-Treiber zugelassen! Not approved as an LED driver within the EU! Eine zugelassene Alternative ist z.B. die LPF-25-Serie Technische Eigenschaften des MEAN WELL APV-35-24 Nennleistung: 36 W AC-Spannungsbereich: 90 bis 264 VAC  Sekundärspannung: 24 VDC 300 VAC Spannungsschwankungen widerstehen Kompakte Bauform Schutzart IP42 Kühlung durch freie Luftkonvektion Schutz vor Kurzschluss, Überspannung und Überlast Informationen zum MEAN WELL APV-35-24 Mit dem APV-35-24 stellt Mean Well ein kompaktes und robustes LED-Netzgerät für Niederspannungsanlagen wie z. B. LED-Dekorationen und LED-Leuchtreklamen dar. Es verfügt über einen weltweit anwendbaren Weitbereichseingang von 90 bis 264 VAC mit Derating bei 90 und 100 VAC und erzeugt eine geregelte Nennleistung von 36 W. Ausgegeben wird eine vielfältig einsetzbare 24 VDC Konstantspannung sowie ein Ausgangsstrom von 1,5 A. Die sämtliche Mean Well APV-35-Serie ist des Weiteren widerstandsfähig gegen 300 VAC Spannungsschwankungen für bis zu fünf Sekunden. Damit ist eine stabile Stromversorgung und ein sicherer Betrieb gewährleistet. Mit der kompakten Bauweise sowie der Schutzart IP42 eignen sich die LED-Schaltnetzteile von MeanWell besonders gut für Indoor-Installationen. Die konvektionsgekühlte Produktreihe sorgt weiterhin für einen geräuscharmen Betrieb und kann einen Wirkungsgrad von bis zu 85% erreichen. Nicht zuletzt sind die APV-35-Modelle von Mean Well ausgangsseitig kurzschlussfest und bieten einen Schutz gegen Überlast sowie Überspannung. Die Produktserie erfülle dabei alle grundlegenden Sicherheits- und Störfestigkeitsstandards gemäß UL8750, EN61000-3-2, EN55035 sowie weitere Normen. Mit hoher Zuverlässigkeit sowie herausragender Kosteneffizienz ist die MeanWell APV-35-Serie die optimale Lösung für LED-Beleuchtungen mit Niederspannungen. Nur für den Einbau in Geräten, die einen anderen Primärgebrauch aufweisen als die Beleuchtung, z. B.Kopiergeräte, Overhead- und Diaprojektoren oder für Skalen- und Anzeigebeleuchtung.

Technical Information & Details for MEAN WELL HLG-150H-24A Power Supply Output Power: 151.2 W Output Voltage: 24 V DC Output Current: 6.3 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: 94% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 65 A (Cold Start) @ 230 V AC No-load Power Consumption: < 0.5 W (model dependent) Operating Temperature: −40 °C to +90 °C (Case Temperature) Cooling: Fanless, free air convection Protection Functions: Short circuit, Overload, Over voltage, Over temperature Overvoltage Category: OVC III compliant Isolation Voltage: 3750 V AC between Input and Output Dimensions (L x W x H): 228 mm x 68 mm x 38.8 mm Weight: approx. 1150 g Safety & EMC Certificates: UL8750, EN61347-1, EN61347-2-13, IP65, CE Adjustability: Output voltage and current level adjustable via internal potentiometers Manufacturer Warranty: 7 Years About the MEAN WELL HLG-150H-24A The MEAN WELL HLG-150H-24A stands as a premium, high-performance solution within the LED driver market, engineered for maximum durability and peak efficiency. This 150W powerhouse features a dual-mode output, providing both Constant Voltage and Constant Current capabilities, which ensures compatibility with a vast array of high-end LED lighting architectures. The "A" type designation highlights its user-adjustable design, allowing for precise onsite calibration of the output voltage (22–27V) and current (3.8–6.3A) via built-in potentiometers to meet specific project requirements. Encased in a rugged aluminum housing with an IP65 rating, it is fully protected against dust and water splashes, making it an ideal choice for harsh industrial environments and outdoor street lighting. With an industry-leading efficiency rate of 94% and a fanless thermal design, it operates silently while maintaining a typical lifetime of over 62,000 hours. This commitment to quality is backed by a comprehensive 7-year manufacturer warranty, providing long-term reliability for critical infrastructure and commercial installations.

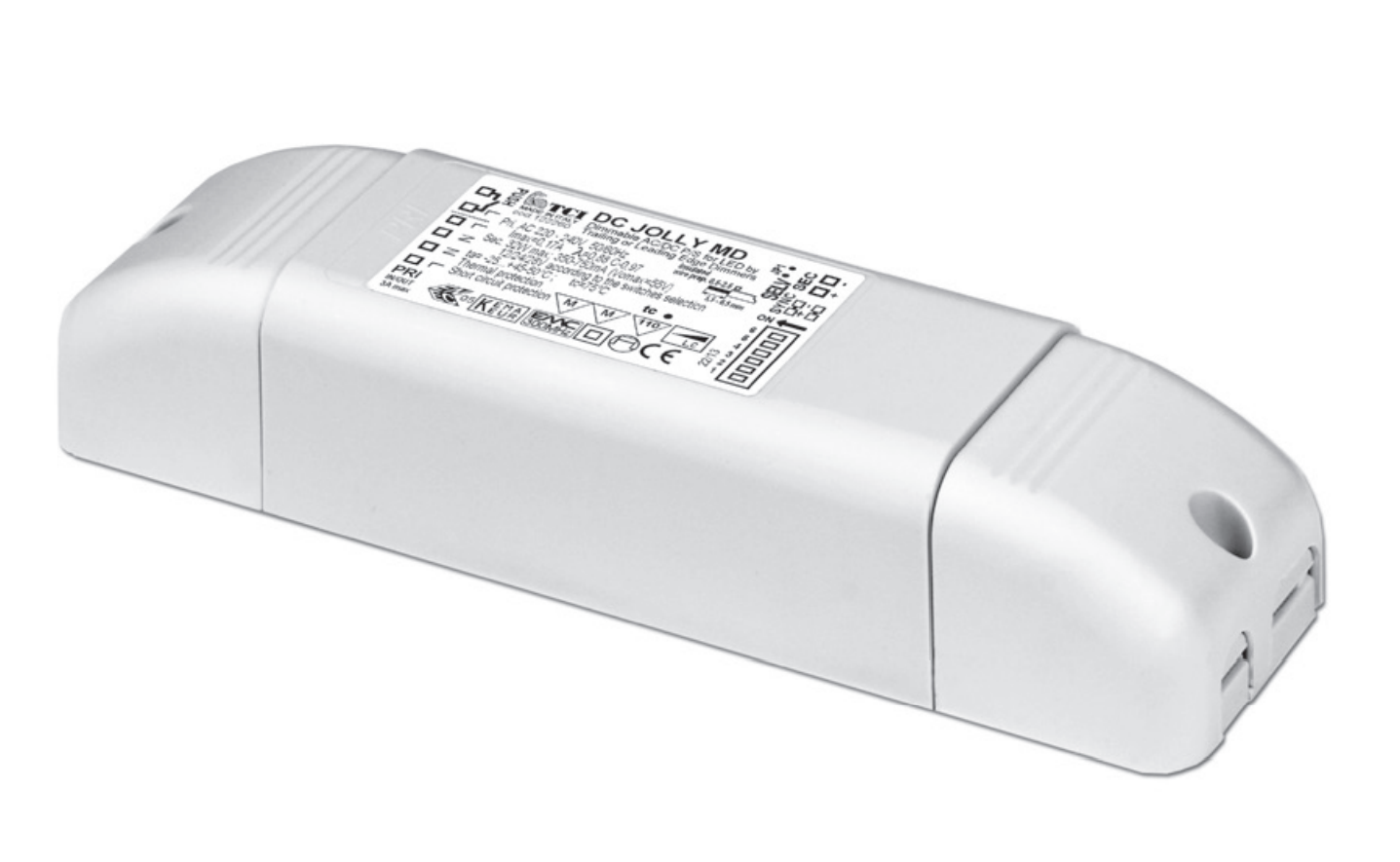

In: 220-240VAC 50-60Hz / Phasecut / Push /  ENEC, MM, SELV(60V) Schutzklasse II, IP20Out: 150 200 250 350 400 450 500mA (2-48VDC)/ 12VDC(6W) 24VDC(12Wmax.) 28VDC (14Wmax.) / 85% eff. / 166x46x34mmConst.: 500mA (12, 24,2VDC)TCI122262
