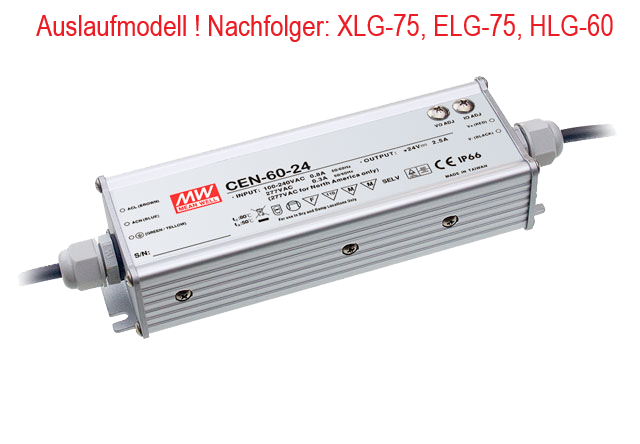

CEN-60-36 Auslaufmodell

Technical Information & Details for the MEAN WELL ELG-75-36A Power Supply Output Power: 75.6 W Output Voltage: 36 V DC (adjustable 32.4 – 39.6 V DC) Output Current: 2.1 A (adjustable 1.05 – 2.1 A) Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 89% Ripple & Noise: ≤ 250 mVp-p Inrush Current: max. 50 A @ 230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +85 °C Cooling: fanless natural convection Protections: Short circuit, overcurrent, overvoltage, overtemperature IP Rating: IP65 Isolation Voltage: 3750 V AC between input and output Dimensions (L x W x H): 180 mm x 63 mm x 35.5 mm Weight: approx. 800 g Safety & EMC Certificates: CE, ENEC, TUV, CB, EAC, UKCA Power Factor Correction (PFC): Active Manufacturer Warranty: 5 Years Information about the MEAN WELL ELG-75-36A The MEAN WELL ELG-75-36A is a high-performance and exceptionally reliable LED power supply that stands out for its incredible flexibility in demanding indoor and outdoor lighting applications. The defining feature of this specific "A" variant is the inclusion of built-in potentiometers, allowing users to precisely tune both the output voltage (ranging from 32.4 to 39.6 V DC) and the constant current (from 1.05 to 2.1 A) to perfectly match the exact electrical requirements of any custom LED project. Housed within a rugged metal enclosure that holds a strict IP65 rating, the device provides outstanding protection against dust and water ingress. Driven by integrated active Power Factor Correction (PFC) technology, this advanced LED driver delivers an impressive energy efficiency of up to 89% while significantly reducing the load on the electrical grid, operating safely and consistently in a dual constant voltage and constant current mode. Engineered for maximum global compatibility, this power supply features an ultra-wide input voltage range of 100 to 305 V AC, making it highly resilient against power fluctuations often found in harsh industrial environments. Its fanless design relies entirely on natural convection for cooling, ensuring silent and dependable operation across an extreme operating temperature range of −40 °C to +85 °C without any risk of mechanical fan failure. To guarantee absolute safety and longevity during continuous operation, the unit is fully equipped with comprehensive protection mechanisms that instantly safeguard against short circuits, overcurrent, overvoltage, and overtemperature events. Backed by a generous 5-year manufacturer warranty, the MEAN WELL ELG-75-36A proves to be an ideal, highly durable power solution for professional deployments including architectural lighting, commercial floodlights, and robust street lamps.

Technical Information & Details on MEAN WELL HLG-60H-36A Power Supply Output Power: 61.2 W Output Voltage: 36 V DC (adjustable 32.4 – 40 V) Output Current: 1.7 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 90 % Ripple & Noise: ≤ 200 mVp-p Inrush Current: typ. 55 A / 26 µs @ 230 VAC No-Load Power Consumption: < 0.75 W Operating Temperature: −40 °C to +80 °C (case temperature) Cooling: fanless natural convection Protection Functions: Short circuit (Hiccup, auto recovery), Overload, Overvoltage, Overtemperature Overvoltage Category: II Isolation Voltage: 3.75 kV AC between input and output Dimensions (H x W x D): 171 mm x 61.5 mm x 36.8 mm Weight: ca. 730 g Safety & EMC Certifications: UL8750, CB, CE, TÜV, EAC, IP65 Manufacturer Warranty: 7 Years Information on MEAN WELL HLG-60H-36A The MEAN WELL HLG-60H-36A offers adjustable flexibility for higher voltages in a professional 61.2 W LED driver power supply featuring excellent efficiency up to 90 % and −40 °C to +80 °C operating temperature for demanding deployments. It delivers fine-tuned 32.4–40 V DC / 1.7 A via built-in potentiometer in constant voltage and constant current modes with IP65 protection for dust and moisture-resistant installations. Rugged aluminum housing, Class 2 certification, and active PFC ensure precise customization and maximum reliability for high-voltage LED arrays and industrial lighting systems.
