Technical Information & Details for the MEAN WELL HLG-320H-12A Power Supply Output Power: 264 W Output Voltage: 12 V DC (Adjustable via internal potentiometer 10.8 – 13.5 V) Output Current: 22 A (Adjustable via internal potentiometer 11 – 22 A) Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: Up to 91% Ripple & Noise: 150 mVp-p Inrush Current: max. 70 A @ 230 V AC (Cold start) Power Factor: PF ≥ 0.95 / 230 V AC Operating Temperature: -40 °C to +90 °C (Case temperature) Cooling: Fanless free air convection Protection Functions: Short circuit, Over current, Over voltage, Over temperature Ingress Protection: IP65 (Dust-tight and protected against water jets) Isolation Voltage: 3750 V AC between input and output Dimensions (L x W x H): 252 mm x 90 mm x 43.8 mm Weight: approx. 1.88 kg Safety & EMC Certificates: UL8750, EN61347-1, EN61347-2-13, EN55015, Type HL LED Indicator: None (A-Type with internal pots) Manufacturer Warranty: 7 Years Information about the MEAN WELL HLG-320H-12 The A-Type model is specifically engineered for professional integration, offering the strategic advantage of on-board adjustment of both voltage and current levels via internal potentiometers. This allows for fine-tuning the power delivery to match specific LED requirements or compensate for voltage drops in long cable runs. Encased in a rugged metal housing with an IP65 rating, this driver is fully protected against dust and moisture, making it an ideal candidate for high-bay lighting, street illumination, and outdoor architectural projects. Its dual-mode constant voltage and constant current output ensures maximum versatility across various circuit designs. The unit operates with a remarkable 91% efficiency, contributing to its cool-running fanless design and an extended typical lifetime of over 62,000 hours. With built-in active PFC and a wide input range up to 305V AC, it remains stable even under fluctuating grid conditions. This industrial-grade power solution is backed by a 7-year manufacturer warranty, reflecting its superior build quality and reliability in mission-critical applications.

Technical Information & Details on MEAN WELL HLG-60H-24A Power Supply Output Power: 60 W Output Voltage: 24 V DC (adjustable 22 – 27 V) Output Current: 2.5 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 89.5 % Ripple & Noise: ≤ 200 mVp-p Inrush Current: typ. 55 A / 26 µs @ 230 VAC No-Load Power Consumption: < 0.75 W Operating Temperature: −40 °C to +80 °C (case temperature) Cooling: fanless natural convection Protection Functions: Short circuit (Hiccup, auto recovery), Overload, Overvoltage, Overtemperature Overvoltage Category: II Isolation Voltage: 3.75 kV AC between input and output Dimensions (H x W x D): 171 mm x 61.5 mm x 36.8 mm Weight: ca. 730 g Safety & EMC Certifications: UL8750, CB, CE, TÜV, EAC, IP65 Manufacturer Warranty: 7 Years Information on MEAN WELL HLG-60H-24A The MEAN WELL HLG-60H-24A offers adjustable flexibility in a professional 60 W LED driver power supply featuring outstanding efficiency up to 89.5 % and −40 °C to +80 °C operating temperature for demanding applications. It delivers fine-tuned 22–27 V DC / 2.5 A via built-in potentiometer in constant voltage and constant current modes (14.4–24 V CC range) with IP65 protection for dust and moisture-resistant installations. Rugged aluminum housing, Class 2 certification, and active PFC ensure optimal customization and maximum reliability for LED panel lighting and industrial systems.

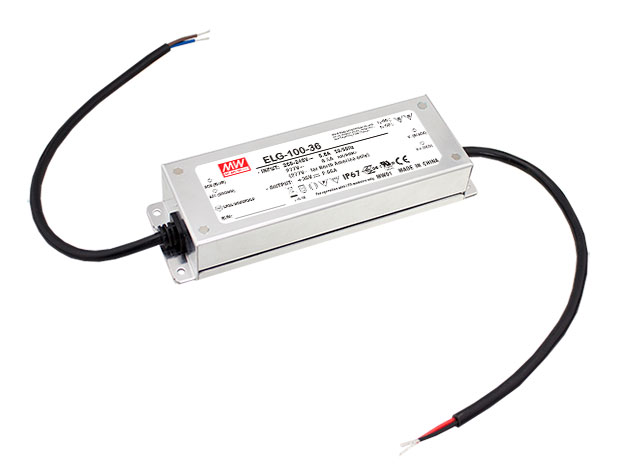

Technische Eigenschaften des MEAN WELL ELG-100-24DA Leistung: 96W Aluminiumgehäuse Integriertes PFC Standby Ladeverbrauch <0,5W IP67 DALI Erdung muss am Gehäuse durchgeführt werden! (Alternativ mit Erdungskabel die 3Y Variante wählen) Allgemeine Lebensdauer >50.000Std. 5 Jahre Garantie Produktbeschreibung zur MEAN WELL ELG-100 Serie Bei der MEAN WELL ELG-100 Serie handelt es sich um 100W AC/DC LED Netzteile, die im dualen Modus einen Konstantstrom- und Konstantspannungsausgang unterstützen. Die ELG-100 Netzteile arbeiten mit einem 180~295VAC Eingangsbereich und bieten verschiedene Ausgangsspannungen im Bereich von 24V bis 54V an. Dank des 91% hohem Wirkungsgrads und dem lüfterlosen Design kann die Serie unter freier Luftkonvektion im Temperaturbereich von -40°C bis +90°C betrieben werden. Durch das verwendete Aluminiumgehäuse und den Schutzklassen IP65/67 finden MEAN WELL ELG-100 Netzteile Anwendung sowohl Indoor-, als auch im Outdoorbereich. Die Serie verfügt weiterhin über verschiedene zusätzliche Funktionen, wie 3 in 1 Dimmung, Smart-Timer-Dimmung oder DALI, welche eine hohe Flexibilität in LED Beleuchtungsanwendungen garantieren.
