Technical Information & Details for the MEAN WELL XLG-25-A Power Supply
- Output Power: 25 W
- Output Voltage: 22 – 54 V DC (Constant Power Mode)
- Output Current: 700 mA (Adjustable 250 mA – 1050 mA)
- Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz
- Efficiency: Up to 88 %
- Ripple & Noise: 5.0% max. @ rated current
- Inrush Current: 50 A @ 230 VAC (Cold Start)
- No-load Power Consumption: < 0.5 W
- Operating Temperature: −40 °C to +85 °C (Tcase)
- Cooling: Fanless natural convection
- Protection Functions: Short circuit, Over current, Over voltage, Over temperature, Input Over Voltage
- Surge Protection: 6KV Surge Immunity (Line-Earth)
- Isolation Voltage: 3750 V AC between Input and Output
- Dimensions (L x W x H): 105 mm x 63 mm x 30 mm
- Weight: Approx. 410 g
- Safety & EMC Certificates: CE, UL8750, ENEC, CB, EAC, CCC
- LED Indicator: N/A (Built-in potentiometer for adjustment)
- Manufacturer Warranty: 5 Years

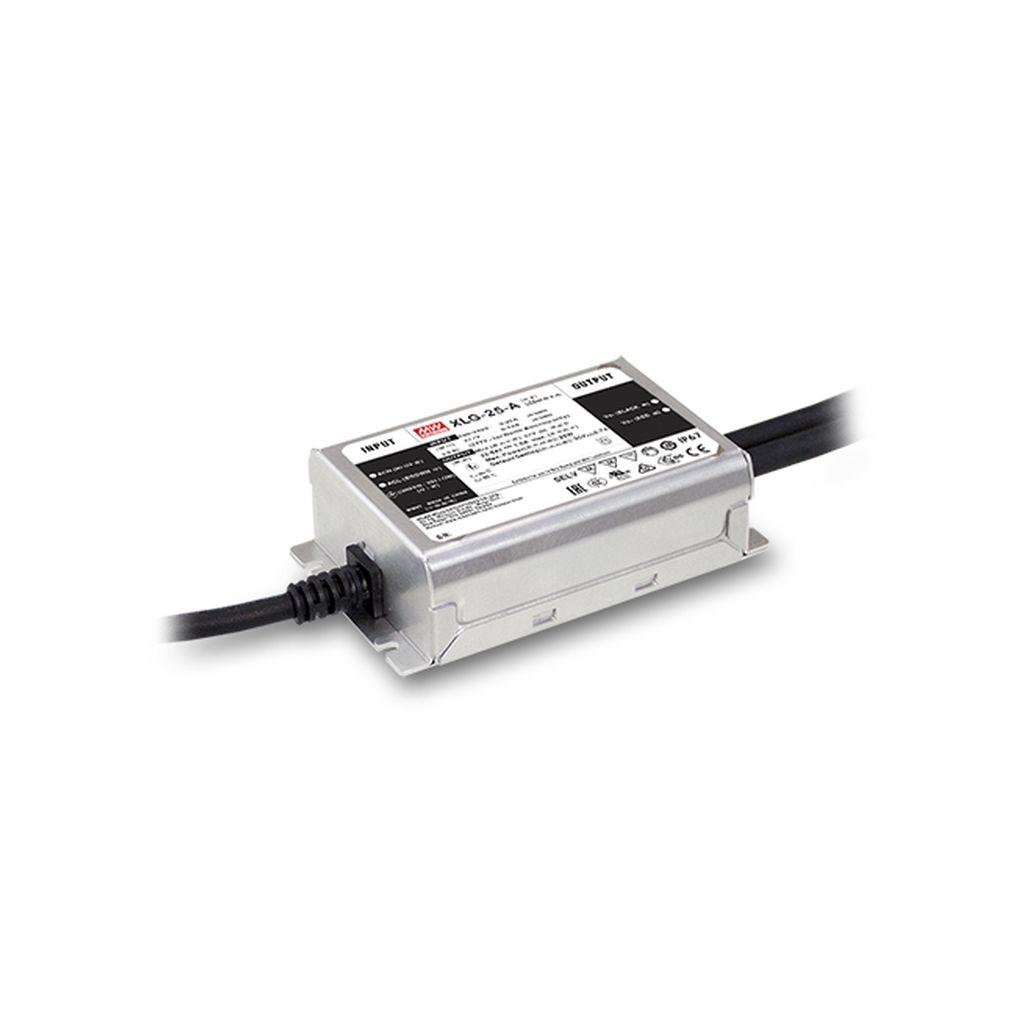

Information about the MEAN WELL XLG-25-A
The MEAN WELL XLG-25-A stands out as a high-performance LED driver engineered with a unique Constant Power Mode architecture that provides developers with immense versatility across various current ratings. Encased in a ruggedized metal housing with an IP67 ingress protection rating, this unit is perfectly suited for both indoor architectural lighting and rigorous outdoor environments like street or bay lighting. It features a built-in active PFC function and meets the latest international safety regulations, including isolation design for both output and dimming circuits to enhance luminaire safety. With a wide temperature tolerance and high efficiency of 88%, the XLG-25-A ensures a long operational lifetime exceeding 50,000 hours even in challenging climates. The inclusion of input overvoltage protection (specifically for the I-version) and its Class 2 power unit rating makes it one of the most stable and secure 25W power solutions available on the market today.
