ELG-150-12A-3Y

Product information "ELG-150-12A-3Y"

Technical Information & Details for MEAN WELL ELG-150-12A-3Y LED Driver

  • Output Power: 120 W (at 200 – 305 V AC) / 84 W (at 100 – 180 V AC)
  • Output Voltage: 12 V DC (Constant current region: 6 – 12 V)
  • Rated Current: 10 A
  • Adjustability: Output voltage (10.8 – 13.2 V) and current level (5 – 10 A) adjustable via internal potentiometers
  • Ripple & Noise (max.): ≤ 150 mVp-p
  • Voltage Tolerance: ±3.0%
  • Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC
  • Power Cord Option (3Y Specification): 3-wire AC input cable (Class I with safety earth ground) for European / global standard installations
  • Efficiency (Typ.): 88%
  • Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load)
  • Ingress Protection: IP65 (suitable for indoor and outdoor installations)
  • Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C)
  • Cooling: Fanless free air convection
  • Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (13.5 – 18 V), Over temperature
  • Form Factor / Housing: Metal housing design with functional Ground (Class I)
  • Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm
  • Weight: Approx. 0.95 kg
  • Manufacturer Warranty: 5 Years

Information about MEAN WELL ELG-150-12A-3Y

The MEAN WELL ELG-150-12A-3Y is a high-performance AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 12 V DC output with a rated current of up to 10 A (120 W output at 200–305 V AC). As an A-Type model, it features an IP65 rating and internal potentiometers under rubber stoppers for output voltage and current adjustment. The 3Y suffix designates the model configured with a 3-wire AC input cable with protective earth grounding for compliance with international safety standards.

Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.


Verfügbare Downloads
Download ELG-150 Datenblatt
Eigenschaften für "ELG-150-12A-3Y"
Approval: CB, CCC, CE, ENEC, MM, SELV, TÜV, UL
Efficiency: 88%
Height: 3, 35,5
Length: 219
Protection Class: Class I
Protection Rating: IP65
Rated current: 10
Series: ELG
Voltage: 12 VDC
Warranty: 5 years
Wattage: 120 W
Weight: 0,95kg
Width: 63

Cutsomers also bought

LPV-20-12
Technical Information & Details of the MEAN WELL LPV-20-12 Power Supply Not approved as an LED driver within the EU! An approved alternative is, for example, the LPF-25 series. Output Power: 20 W Output Voltage: 12 V DC Output Current: 1.67 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 81 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: max. 25 A @230 VAC No-load Power Consumption: < 0.5 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protection Features: Short-circuit, Overload, Overvoltage Overvoltage Category: OVC III Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 26 mm x 35 mm x 118 mm Weight: approx. 190 g Safety & EMC Certificates: CE, UL8750, TUV, CB, EAC, IP67 LED Indicator: - Manufacturer Warranty: 2 years Information about the MEAN WELL LPV-20-12 The MEAN WELL LPV-20-12 is a compact LED power supply with 20 W and stable 12 V DC / 1.67 A output voltage. It excels with excellent efficiency up to 81 %, fanless convection cooling for silent operation, and a fully waterproof IP67 housing. The comprehensive protection features (short-circuit, overload, and overvoltage protection) with automatic recovery ensure maximum operational safety. Perfect for LED lighting, decorative applications, outdoor use, and humid environments – the universal input voltage range 90–264 V AC enables worldwide deployment. With international certifications, the LPV-20-12 offers maximum flexibility, durability, and weatherproof protection in demanding environments.

from €7.20*
LPF-60-12
Technische Eigenschaften des MEAN WELL LPF-60-12 Leistung: 60 W Eingangsbereich: 90 - 305 VAC Ausgangspannung: 12 VDC Konstantsstrom + Konstantspannung (CC + CV) Integrierte aktive PFC-Funktion Class 2 Stromversorgung / Class II Netzteil Schutzart IP 67 Lüfterlose Konstruktion Schutz vor Kurzschluss, Überlast und Überspannung Informationen zum MEAN WELL LPF-60-12 Das Mean Well LPF-60-12 LED-Treiber mit Weitbereichseingang (90 - 305 VAC) liefert eine stabilisierte 12 VDC Ausgangspannung mit einer Nennleistung von 60 W. Das LED-Schaltnetzteil mit einer aktiven PFC-Funktion verfügt über die Betriebsarten Konstantstrom + Konstantsprannung (CC +CV). Wenn Sie Fragen dazu haben rufen Sie uns gerne an. Eine stabile Stromversorgung für vielseitige LED-Beleuchtungsanwendungen wie z. B. Flächenleuchten, Tunnelbeleuchtungen sowie beleuchtete Schilder.  Mit der Schutzart IP 67 und dem Kunststoffgehäuse im Class II Design eignet sich die LPF-60-Serie von MeanWell für eine Umsetzung in trockenen und feuchten Arbeitsumgebungen. Auch dank der lüfterlosen Konstruktion kann die Produktreihe einen geräuscharmen Betrieb bei Gehäusetemperaturen von -40 bis +80 Grad Celsius (Derating ab +50°C) und bei einer relativen Luftfeuchtigkeit von 20% bis 90% bewältigen.  Weiterhin verfügt die komplette LPF-60-Serie von Mean Well über umfassende Schutzmaßnahmen gegen Kurzschluss, Überlast sowie Überspannung. Die Produktreihe ist gemäß Sicherheitsstandard für Class 2 Stromversorgung (UL 1310) zertifiziert, welche ein sicheres Betreiben der LED-Beleuchtungsanlagen gewährleistet.  Die MeanWell LPF-60-Serie besitzt außerdem mehrere Zulassungen und Zertifikate (UL8750, EN 61000-3-2, EN61347-1, EN 61347-2-13), die für LED-Treiber im LED-Beleuchtungssektor notwendig sind. Mit einer Lebensdauer von mehr als 50,000 Stunden ist die Mean Well LPF-60-Serie die zuverlässige und leistungsfähige Lösung für LED-Beleuchtungsprojekte verschiedener Art.

from €21.80*
Tip

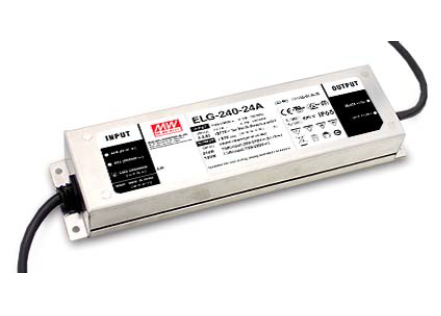

ELG-240-24A
Technical Information & Details for the MEAN WELL ELG-240-24A Power Supply Rated Power: 239.82 W Output Voltage: 24 V DC Output Current: 9.99 A (Constant Current Region 12–24 V) Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: Up to 93% Ripple & Noise: ≤ 350 mVp-p Inrush Current: Cold start 60 A at 230 V AC No-Load Power Consumption: < 0.5 W Operating Temperature: Case temperature (Tcase) from −40 °C to +90 °C Cooling: Fanless free air convection Protection Functions: Short circuit, Overload, Overvoltage, Overtemperature Ingress Protection: IP65 rated for indoor and outdoor installations Withstand Voltage: I/O-FG: 2.0 kV AC, I/O-O/P: 3.75 kV AC Dimensions (L x W x H): 244 mm × 71 mm × 37.5 mm Weight: Approx. 1.22 kg Safety & EMC Standards: UL8750 (Type HL), CSA, IEC/EN 61347, CE, EAC Control Feature: Built-in potentiometer for manual voltage and current adjustment Manufacturer Warranty: 5 years Information Regarding the MEAN WELL ELG-240-24A Engineered for high-performance industrial and outdoor lighting environments, the MEAN WELL ELG-240-24A delivers exceptional reliability and power delivery under demanding operational conditions. Housed in a durable metallic structure featuring an IP65 rating, this driver is fully protected against dust ingress and water jets, making it an ideal choice for exterior architectural setups, street lighting, and heavy-duty industrial floors. Its sophisticated dual-mode constant voltage and constant current operation enables versatile integration across complex system architectures without requiring external converter modules. At the core of this 240W unit lies an advanced topology achieving a high working efficiency of up to 93%, which significantly curtails thermal dissipation and energy waste. Supporting a wide universal input range from 100 to 305V AC, the unit seamlessly accommodates global utility grids and protects against voltage fluctuations. A standout structural asset is its robust thermal performance, supporting a wide case temperature range (Tcase) of −40 °C to +90 °C powered entirely by natural convection cooling without the risk of mechanical fan failures. Designed for field flexibility, the A-type variant includes a built-in, accessible potentiometer that empowers technicians to fine-tune both output voltage and constant current thresholds manually. Comprehensive electronic safeguards protect against abnormal states such as short circuits, overloads, overvoltages, and overtemperatures with automatic fault recovery. Backed by a comprehensive 5-year manufacturer warranty, this power supply minimizes maintenance overhead and secures long-term operational continuity. Complying with rigorous international certifications, including UL8750 Type HL for use in Class I, Division 2 hazardous locations, the device meets elite safety benchmarks. Combining high surge immunity, superior galvanic isolation, and a projected lifetime exceeding 50,000 hours, the MEAN WELL ELG-240-24A represents a dependable engineering choice for professional commercial deployments.

from €42.40*

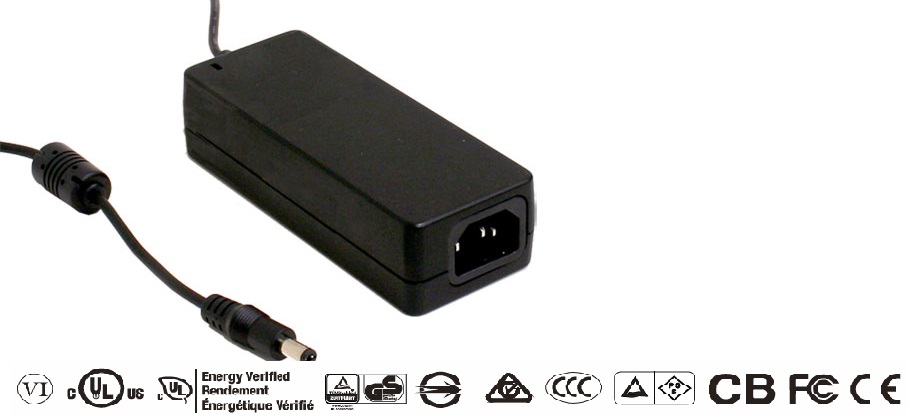

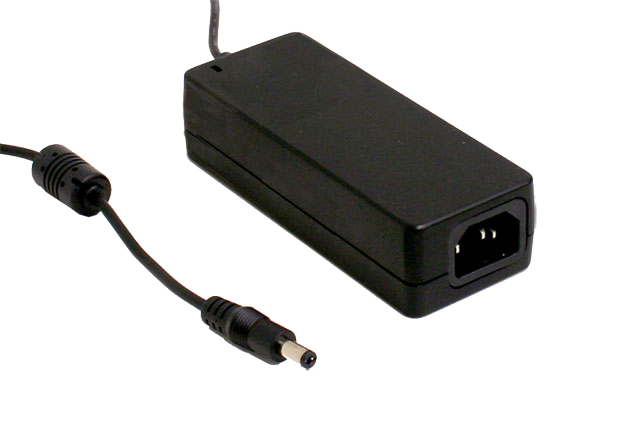

GST60A24-P1J
