Technical Information & Details for the MEAN WELL RS-25-24 Power Supply Output Power: 26.4 W Output Voltage: 24 V DC Output Current: 1.1 A Input Voltage Range: 88 – 264 V AC / 125 – 373 V DC, 47 – 63 Hz Efficiency: 85 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: 45 A / 230 V AC (Cold Start) No Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: Free air convection Protection Functions: Short circuit, Overload, Over voltage Vibration Resistance: 5G vibration test compliance Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 78 mm x 51 mm x 28 mm Weight: 200 g Safety & EMC Certificates: UL62368-1, EN62368-1, CCC, CB, CE, EAC, BSMI LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL RS-25-24 The MEAN WELL RS-25-24 is a professional-grade 26.4W switching power supply that provides a highly stable 24V DC output, a standard voltage for most industrial control systems. This unit is specifically engineered for high reliability in volatile environments, featuring the capability to withstand 300VAC surge inputs for five seconds without damage. Its mechanical integrity is equally impressive, as it is tested to resist vibrations up to 5G, ensuring it remains operational in heavy-duty machinery or transport applications. The integration of 105°C long-life electrolytic capacitors ensures that the power supply maintains a high MTBF (Mean Time Between Failures) even when operating at its peak temperature of 70°C. Efficiency and safety are central to the RS-25-24 design, offering a typical efficiency of 85% and a remarkably low no-load power consumption of less than 0.5W. To prevent system damage during faults, the unit includes comprehensive protections against short circuits and over-voltages, utilizing a Hiccup mode for overload recovery that automatically resets once the fault is cleared. The miniature form factor allows it to be installed in space-constrained enclosures where free air convection provides sufficient cooling. Supported by a 3-year manufacturer warranty and global safety certifications, this power supply is a dependable choice for industrial automation, sensors, and telecommunications equipment.

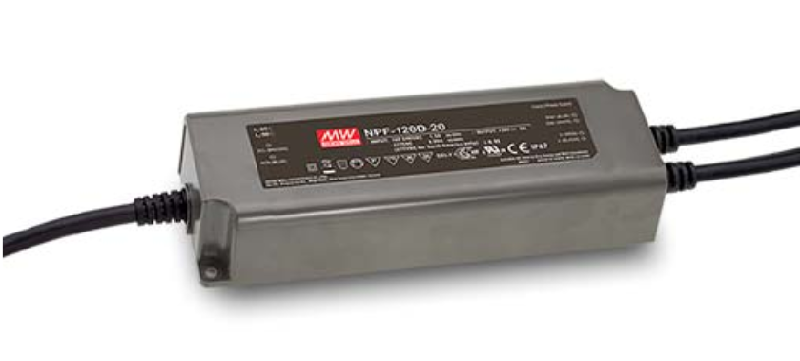

Technical Information & Details for the MEAN WELL NPF-120D-12 Power Supply Rated Power: 121.8 W Output Voltage: 12 V DC Rated Current: 10 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: up to 89 % Current Ripple: 5.0% max. Inrush Current: cold start 60 A at 230 VAC Standby Power Consumption: < 0.5 W Working Temperature: case temperature Tcase -40 °C to +90 °C Cooling: fanless natural convection Protection Functions: Short circuit, Overload, Over voltage, Over temperature Ingress Protection: IP67 Withstand Voltage: I/O-O/P: 3.75 kV AC Dimensions (L x W x H): 191 mm x 63 mm x 37.5 mm Weight: approx. 0.97 kg Safety & EMC Certificates: UL8750, ENEC, CE, EAC Special Feature: Built-in 3-in-1 dimming function Manufacturer Warranty: 5 years Information about the MEAN WELL NPF-120D-12 Powering demanding commercial and architectural lighting with precision, the MEAN WELL NPF-120D-12 delivers exceptional performance and steady constant current output. Built to withstand challenging environments, the unit features an advanced IP67 ingress protection rating that shields internal components from dust, moisture, and temporary submersion. This makes it an ideal choice for both rigorous indoor setups and exposed outdoor installations. System integrators benefit significantly from the versatile built-in 3-in-1 dimming mechanism, which supports 0-10V DC, 10V PWM signals, and resistance controls for smooth brightness adjustments. Eliminating the need for noisy mechanical fans, the advanced convection-cooled housing ensures silent operation and maximizes overall component longevity under continuous load. Operational safety is rigorously maintained through built-in safeguards against short circuits, overloads, and thermal anomalies, featuring automatic recovery after fault clearance. Compliance with global safety directives is officially validated through prestigious UL8750 certifications and ENEC standards, giving engineers total confidence in regulatory approval. Furthermore, the universal input range ensures seamless deployment across various international electrical grids. Backed by an impressive 5 years manufacturer warranty, this power supply represents a secure, high-return investment for professional lighting designers. Combining high efficiency with rugged industrial engineering, it stands ready to fulfill the most demanding project requirements with absolute dependability.

Technical Information & Details for the MEAN WELL RS-25-15 Power Supply Output Power: 25.5 W Output Voltage: 15 V DC Output Current: 1.7 A Input Voltage Range: 88 – 264 V AC / 125 – 373 V DC, 47 – 63 Hz Efficiency: 83.5 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: 45 A / 230 V AC (Cold Start) No Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: Free air convection Protection Functions: Short circuit, Overload, Over voltage Vibration Resistance: 5G vibration test compliance Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 78 mm x 51 mm x 28 mm Weight: 200 g Safety & EMC Certificates: UL62368-1, EN62368-1, CCC, CB, CE, EAC, BSMI LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL RS-25-15 The MEAN WELL RS-25-15 is a high-performance 25.5W switching power supply that delivers a precise 15V DC output, making it an ideal choice for powering industrial control systems and communication equipment. One of its most significant technical advantages is its high surge resistance, capable of withstanding 300VAC input for 5 seconds without sustaining damage. This robustness is complemented by its mechanical durability, as the unit is designed to meet 5G vibration standards, ensuring stable operation even when mounted in environments subject to heavy machinery movement. By utilizing 105°C long-life electrolytic capacitors, the RS-25-15 is engineered for maximum reliability and a prolonged service life under professional operating conditions. Beyond its physical resilience, this power supply is optimized for energy efficiency and safe integration into complex systems. It features a low no-load power consumption of under 0.5W, aligning with modern ecological and cost-saving standards. The safety suite includes short circuit, overload, and over-voltage protections, with a Hiccup mode that facilitates automatic recovery once fault conditions are cleared. Its miniature footprint and effective cooling by free air convection allow it to fit easily into confined spaces while maintaining an operating temperature range of -20°C to +70°C. Backed by global safety certifications and a 3-year manufacturer warranty, it stands as a dependable and versatile power solution for international markets.

Technical Information & Details for the MEAN WELL HLG-120H-15AB Power Supply Rated Power: 120 W Output Voltage (DC): 15 V Rated Current: 8 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC Efficiency (typ.): 92 % Ripple & Noise (max.): 150 mVp-p Adjustability: Voltage (13.5–17V) and current (4–8A) via internal potentiometers Dimming Technology: 3-in-1 dimming (1–10V DC, 10V PWM signal, or resistance) Operating Temp. (Case): −40 °C to +80 °C IP Rating: IP65 Typical Lifetime: > 62,000 hours Manufacturer Warranty: 7 Years Details about the MEAN WELL HLG-120H-15AB The MEAN WELL HLG-120H-15AB is the premier configuration in the 120W series, offering a unique hybrid of manual and electronic control features. Designed for sophisticated lighting architectures, this "AB-Type" model provides installers with the ultimate toolset for both installation calibration and ongoing dynamic operation. The core advantage of this unit is its comprehensive adjustment architecture. It features built-in potentiometers located under protective rubber seals, allowing for the manual fine-tuning of output voltage and current. This is paired with an external 3-in-1 dimming control cable, which supports 1-10V DC, 10V PWM signals, and external resistance. This combination allows for a high degree of precision, enabling the user to set a performance baseline and vary the light output as needed via building automation systems. Featuring a dual-mode constant voltage and constant current output, the HLG-120H-15AB ensures high stability across diverse LED configurations. The IP65-rated aluminum housing facilitates efficient thermal management and provides robust protection against environmental ingress. With 92% efficiency and active PFC, the driver meets stringent energy requirements while maintaining a lifespan of over 62,000 hours. Backed by a 7-year warranty and carrying the "Type HL" rating for hazardous locations, it is perfectly suited for smart urban lighting, high-bay industrial luminaires, and professional-grade horticultural lighting systems.

Technische Eigenschaften des MEAN WELL LPF-60-12 Leistung: 60 W Eingangsbereich: 90 - 305 VAC Ausgangspannung: 12 VDC Konstantsstrom + Konstantspannung (CC + CV) Integrierte aktive PFC-Funktion Class 2 Stromversorgung / Class II Netzteil Schutzart IP 67 Lüfterlose Konstruktion Schutz vor Kurzschluss, Überlast und Überspannung Informationen zum MEAN WELL LPF-60-12 Das Mean Well LPF-60-12 LED-Treiber mit Weitbereichseingang (90 - 305 VAC) liefert eine stabilisierte 12 VDC Ausgangspannung mit einer Nennleistung von 60 W. Das LED-Schaltnetzteil mit einer aktiven PFC-Funktion verfügt über die Betriebsarten Konstantstrom + Konstantsprannung (CC +CV). Wenn Sie Fragen dazu haben rufen Sie uns gerne an. Eine stabile Stromversorgung für vielseitige LED-Beleuchtungsanwendungen wie z. B. Flächenleuchten, Tunnelbeleuchtungen sowie beleuchtete Schilder.  Mit der Schutzart IP 67 und dem Kunststoffgehäuse im Class II Design eignet sich die LPF-60-Serie von MeanWell für eine Umsetzung in trockenen und feuchten Arbeitsumgebungen. Auch dank der lüfterlosen Konstruktion kann die Produktreihe einen geräuscharmen Betrieb bei Gehäusetemperaturen von -40 bis +80 Grad Celsius (Derating ab +50°C) und bei einer relativen Luftfeuchtigkeit von 20% bis 90% bewältigen.  Weiterhin verfügt die komplette LPF-60-Serie von Mean Well über umfassende Schutzmaßnahmen gegen Kurzschluss, Überlast sowie Überspannung. Die Produktreihe ist gemäß Sicherheitsstandard für Class 2 Stromversorgung (UL 1310) zertifiziert, welche ein sicheres Betreiben der LED-Beleuchtungsanlagen gewährleistet.  Die MeanWell LPF-60-Serie besitzt außerdem mehrere Zulassungen und Zertifikate (UL8750, EN 61000-3-2, EN61347-1, EN 61347-2-13), die für LED-Treiber im LED-Beleuchtungssektor notwendig sind. Mit einer Lebensdauer von mehr als 50,000 Stunden ist die Mean Well LPF-60-Serie die zuverlässige und leistungsfähige Lösung für LED-Beleuchtungsprojekte verschiedener Art.
