Technical Information & Details for the MEAN WELL RS-25-5 Power Supply Output Power: 25 W Output Voltage: 5 V DC Output Current: 5 A Input Voltage Range: 88 – 264 V AC / 125 – 373 V DC, 47 – 63 Hz Efficiency: 78.5 % Ripple & Noise: ≤ 80 mVp-p Inrush Current: 45 A / 230 V AC (Cold Start) No Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: Free air convection Protection Functions: Short circuit, Overload, Over voltage Vibration Resistance: 5G vibration test compliance Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 78 mm x 51 mm x 28 mm Weight: 200 g Safety & EMC Certificates: UL62368-1, TUV, CB, CE, EAC, CCC LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL RS-25-5 The MEAN WELL RS-25-5 is a highly reliable, 25W single-output switching power supply designed for efficiency and longevity in demanding environments. This compact unit is distinguished by its ability to withstand 300VAC surge inputs for up to five seconds, protecting sensitive downstream components from unpredictable grid fluctuations. Its robust construction allows it to pass a 5G vibration test, making it an excellent choice for industrial machinery and transport applications where mechanical stability is paramount. The use of 105°C long-life electrolytic capacitors ensures that the unit maintains a high Mean Time Between Failures (MTBF), even when operating at its upper temperature limit of 70°C. Functionality is further enhanced by its universal AC input and a "no-load" power consumption of less than 0.5W, aligning with modern energy-saving standards. The RS-25-5 features a Hiccup mode protection system for overloads, which allows the unit to recover automatically once a fault condition is removed, reducing maintenance downtime. With its miniature profile and cooling by free air convection, it integrates seamlessly into confined control cabinets or telecommunications racks. This model serves as a cost-effective yet high-performance solution for users requiring stable 5V DC power backed by international safety certifications and a comprehensive three-year warranty.

Technical Information & Details for the MEAN WELL RS-25-12 Power Supply Output Power: 25.2 W Output Voltage: 12 V DC Output Current: 2.1 A Input Voltage Range: 88 – 264 V AC / 125 – 373 V DC, 47 – 63 Hz Efficiency: 81.5 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: 45 A / 230 V AC (Cold Start) No Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: Free air convection Protection Functions: Short circuit, Overload, Over voltage Vibration Resistance: 5G vibration test compliance Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 78 mm x 51 mm x 28 mm Weight: 200 g Safety & EMC Certificates: UL62368-1, EN62368-1, CCC, CB, CE, EAC, BSMI LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL RS-25-12 The MEAN WELL RS-25-12 is a highly efficient 25.2W switching power supply designed to provide a stable 12V DC output for a variety of industrial and commercial applications. A standout feature of this model is its exceptional electrical durability, as it is engineered to withstand 300VAC surge inputs for up to five seconds without damage. This makes it an ideal component for environments with fluctuating power quality. Furthermore, the unit is built to survive harsh mechanical conditions, having passed 5G vibration testing, which ensures its reliability when mounted on high-vibration machinery or in transport-related installations. The use of 105°C long-life electrolytic capacitors throughout the internal circuitry guarantees a long service life even under sustained thermal load. Operationally, the RS-25-12 offers a universal AC input range and maintains an incredibly low no-load power consumption of less than 0.5W, supporting modern green energy initiatives. Safety is a primary focus, with built-in protections against short circuits, overloads, and over-voltages; the Hiccup mode protection allows the device to automatically resume normal operation once a fault is cleared, minimizing the need for manual resets. Its miniature profile and cooling by free air convection allow for easy integration into compact control cabinets or telecommunications enclosures. Backed by a 3-year manufacturer warranty and a multitude of international safety certifications like UL and TUV, it represents a professional-grade solution for reliable 12V power delivery.

Technical Information & Details for the MEAN WELL RS-25-15 Power Supply Output Power: 25.5 W Output Voltage: 15 V DC Output Current: 1.7 A Input Voltage Range: 88 – 264 V AC / 125 – 373 V DC, 47 – 63 Hz Efficiency: 83.5 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: 45 A / 230 V AC (Cold Start) No Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: Free air convection Protection Functions: Short circuit, Overload, Over voltage Vibration Resistance: 5G vibration test compliance Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 78 mm x 51 mm x 28 mm Weight: 200 g Safety & EMC Certificates: UL62368-1, EN62368-1, CCC, CB, CE, EAC, BSMI LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL RS-25-15 The MEAN WELL RS-25-15 is a high-performance 25.5W switching power supply that delivers a precise 15V DC output, making it an ideal choice for powering industrial control systems and communication equipment. One of its most significant technical advantages is its high surge resistance, capable of withstanding 300VAC input for 5 seconds without sustaining damage. This robustness is complemented by its mechanical durability, as the unit is designed to meet 5G vibration standards, ensuring stable operation even when mounted in environments subject to heavy machinery movement. By utilizing 105°C long-life electrolytic capacitors, the RS-25-15 is engineered for maximum reliability and a prolonged service life under professional operating conditions. Beyond its physical resilience, this power supply is optimized for energy efficiency and safe integration into complex systems. It features a low no-load power consumption of under 0.5W, aligning with modern ecological and cost-saving standards. The safety suite includes short circuit, overload, and over-voltage protections, with a Hiccup mode that facilitates automatic recovery once fault conditions are cleared. Its miniature footprint and effective cooling by free air convection allow it to fit easily into confined spaces while maintaining an operating temperature range of -20°C to +70°C. Backed by global safety certifications and a 3-year manufacturer warranty, it stands as a dependable and versatile power solution for international markets.

Technical Information & Details for the MEAN WELL RS-25-24 Power Supply Output Power: 26.4 W Output Voltage: 24 V DC Output Current: 1.1 A Input Voltage Range: 88 – 264 V AC / 125 – 373 V DC, 47 – 63 Hz Efficiency: 85 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: 45 A / 230 V AC (Cold Start) No Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: Free air convection Protection Functions: Short circuit, Overload, Over voltage Vibration Resistance: 5G vibration test compliance Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 78 mm x 51 mm x 28 mm Weight: 200 g Safety & EMC Certificates: UL62368-1, EN62368-1, CCC, CB, CE, EAC, BSMI LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL RS-25-24 The MEAN WELL RS-25-24 is a professional-grade 26.4W switching power supply that provides a highly stable 24V DC output, a standard voltage for most industrial control systems. This unit is specifically engineered for high reliability in volatile environments, featuring the capability to withstand 300VAC surge inputs for five seconds without damage. Its mechanical integrity is equally impressive, as it is tested to resist vibrations up to 5G, ensuring it remains operational in heavy-duty machinery or transport applications. The integration of 105°C long-life electrolytic capacitors ensures that the power supply maintains a high MTBF (Mean Time Between Failures) even when operating at its peak temperature of 70°C. Efficiency and safety are central to the RS-25-24 design, offering a typical efficiency of 85% and a remarkably low no-load power consumption of less than 0.5W. To prevent system damage during faults, the unit includes comprehensive protections against short circuits and over-voltages, utilizing a Hiccup mode for overload recovery that automatically resets once the fault is cleared. The miniature form factor allows it to be installed in space-constrained enclosures where free air convection provides sufficient cooling. Supported by a 3-year manufacturer warranty and global safety certifications, this power supply is a dependable choice for industrial automation, sensors, and telecommunications equipment.

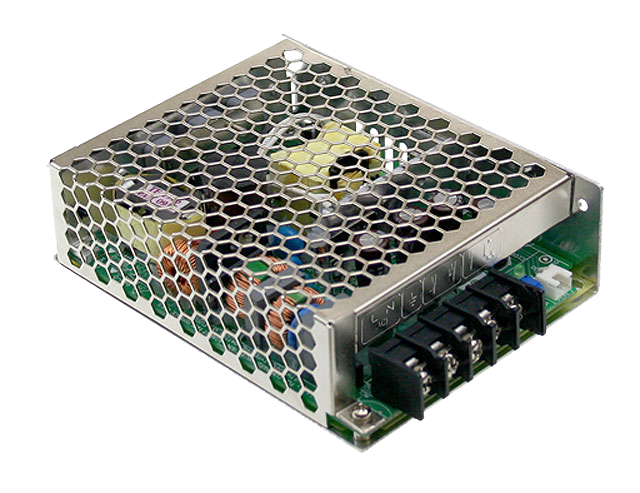

Technical Information & Details for the MEAN WELL HRP-75-7.5 Power Supply Output Power: 75 W Output Voltage: 7.5 V DC Output Current: 10 A Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz Efficiency: 84 % Ripple & Noise: ≤ 80 mVp-p Inrush Current: 35 A @115 VAC / 65 A @230 VAC No Load Power Consumption: < 0.5 W Operating Temperature: -40 °C to +70 °C Cooling: Free air convection Protection Functions: Short Circuit, Overload, Over Voltage, Over Temperature (Optional) Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 129 mm x 98 mm x 38 mm Weight: 0.47 Kg Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC, CB, CE Remote Control: Built-in Remote ON-OFF Control Manufacturer Warranty: 5 Years Information on the MEAN WELL HRP-75-7.5 The MEAN WELL HRP-75-7.5 is a premium 75W enclosed power supply engineered to provide a stable 7.5V output for specialized industrial electronics and control systems. A standout feature of this model is the built-in active Power Factor Correction (PFC), which maintains high electrical efficiency and minimizes harmonic distortion, ensuring the unit meets stringent global energy standards. The 1U low-profile mechanical design, measuring only 38mm in height, allows for high-density installation in compact cabinets and slim machinery where space is a critical constraint. Its robust construction is reinforced by 105°C long-life electrolytic capacitors, which guarantee a significantly extended operational lifespan even when the unit is subjected to continuous, high-load industrial cycles. Beyond its core power delivery, the HRP-75-7.5 offers sophisticated integration features such as built-in remote ON-OFF control, enabling automated power management without the need for manual intervention. The device is designed with environmental sustainability in mind, maintaining a no-load power consumption of less than 0.5W. It excels in extreme environments, capable of operating reliably in temperatures ranging from -40 to +70°C through natural air convection, thus eliminating the mechanical failure risks associated with cooling fans. With a comprehensive 5-year manufacturer warranty and protection against 300VAC surges for 5 seconds, this power supply is a dependable choice for high-availability applications in automation, telecommunications, and testing equipment.

Technical Information & Details for the MEAN WELL HRP-75-12 Power Supply Output Power: 75.6 W Output Voltage: 12 V DC Output Current: 6.3 A Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz Efficiency: 88 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: 35 A @115 VAC / 65 A @230 VAC No Load Power Consumption: < 0.5 W Operating Temperature: -40 °C to +70 °C Cooling: Free air convection Protection Functions: Short Circuit, Overload, Over Voltage, Over Temperature (Optional) Isolation Voltage: 3000 V AC between Input and Output Dimensions (L x W x H): 129 mm x 98 mm x 38 mm Weight: 0.47 Kg Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC, CB, CE Remote Control: Built-in Remote ON-OFF Control Manufacturer Warranty: 5 Years Information on the MEAN WELL HRP-75-12 The MEAN WELL HRP-75-12 is a high-grade 75W enclosed power supply specifically engineered for industrial-strength reliability and precision voltage regulation. This model is distinguished by its built-in active Power Factor Correction (PFC) function, which ensures an optimized power factor of PF > 0.9, maximizing electrical efficiency while meeting strict harmonic current regulations. The 1U low-profile design, with a height of only 38mm, allows for seamless integration into slim mechanical chassis and high-density rack systems where space is limited. Its robust architecture is further enhanced by 105°C long-life electrolytic capacitors and the ability to withstand a 300VAC surge input for 5 seconds, making it ideal for environments prone to power fluctuations. Advanced functionality defines the HRP-75-12, featuring a built-in remote ON-OFF control that facilitates sophisticated energy management and automated system control. The unit demonstrates excellent environmental performance with a no-load power consumption of less than 0.5W, complying with modern green energy standards. It operates with high stability across an extreme temperature range from -40 to +70°C using natural air convection, eliminating the failure points associated with mechanical fans. Supported by a 5-year manufacturer warranty and international certifications such as UL62368-1 and TUV, this power supply provides a reliable 12V DC source for sensitive industrial automation, telecommunications, and testing equipment.
