Technical Information & Details for the MEAN WELL UHP-350-24 Power Supply Output Power: 350.4 W Output Voltage: 24 V DC Output Current: 14.6 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 94% Ripple & Noise: ≤ 240 mVp-p Inrush Current: max. 30 A @115 VAC / 60 A @230 VAC No-Load Power Consumption: < 0.75 W Operating Temperature: −30 °C to +70 °C Cooling: Fanless natural convection Protections: Short circuit, Overload, Over voltage, Over temperature Overvoltage Category: OVC III Isolation Voltage: 3750 V AC input to output Dimensions (H x W x D): 220 mm x 62 mm x 31 mm Weight: approx. 680 g Safety & EMC Certificates: UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC, CB, CE LED Indicator: Power On Indicator Manufacturer Warranty: 3 years Information about the MEAN WELL UHP-350-24 High-efficiency power delivery meets a ultra-slim 31 mm construction in this 24V industrial supply, engineered to maximize performance in confined control cabinets. Operating entirely without internal fans, it ensures absolute silence and exceptional reliability backed by a rigid 5G anti-vibration capability for mobile or heavy machinery. Designed to perform across punishing thermal environments, it supports an extended operating temperature range from -30 °C to +70 °C. Power integrity is further enhanced by robust surge tolerance against a 300 VAC surge input for 5 seconds, fulfilling global safety requirements backed by a solid 3-year warranty.

Technical Information & Details for the MEAN WELL LRS-150F-24 Power Supply Output Power: 156 W Output Voltage: 24 V DC Output Current: 6.5 A Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz Efficiency: 89 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: 60 A @230 VAC (Cold Start) No Load Power Consumption: < 0.5 W Operating Temperature: −30 °C to +70 °C Cooling: Free air convection (fanless) Protection Functions: Short circuit, Overload, Over voltage, Over temperature Over Voltage Category: OVC III Isolation Voltage: 4000 V AC between Input and Output Dimensions (L x W x H): 159 mm x 97 mm x 30 mm Weight: 0.42 kg Safety & EMC Certificates: UL 62368-1, TUV EN 62368-1, EN 60335-1, EN 61558-1/-2-16, AS/NZS 62368.1 LED Display: LED indicator for Power On Manufacturer Warranty: 3 Years Detailed Information on the MEAN WELL LRS-150F-24 The MEAN WELL LRS-150F-24 is a highly efficient 156W single-output enclosed power supply designed with a low-profile 30mm 1U design. This compact form factor is specifically engineered for space-constrained industrial environments where vertical clearance is limited. The unit operates with a full range universal AC input from 85 to 264VAC, ensuring it can be deployed globally without the need for manual input voltage selection. Its sophisticated metallic mesh case design optimizes thermal management, allowing the power supply to maintain peak performance through natural air convection without the mechanical reliability concerns of an internal fan. Safety is a paramount feature of the LRS-150F-24, as it is built to withstand 5G vibration tests and can tolerate a 300VAC surge input for up to five seconds. It is certified under Over Voltage Category III (OVC III), making it suitable for demanding fixed installation systems, and complies with EN 60335-1 for household appliances. With an extremely low no-load power consumption of less than 0.5W, the unit helps end-systems meet strict international energy regulations. This power supply is an ideal, high-reliability solution for industrial automation machinery, control systems, and mechanical or electrical equipment, backed by a comprehensive 3-year manufacturer warranty.

Technical Information & Details for the MEAN WELL NDR-240-24 Power Supply Output Power: 240 W Output Voltage: 24 V DC Output Current: 10 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 89 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 45 A @230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: fanless natural convection Protection Features: short-circuit, overload, overvoltage, overtemperature Overvoltage Category: OVC II Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 125.2 mm x 63 mm x 113.5 mm Weight: approx. 1.2 kg Safety & EMC Certificates: CE, UL 508, TUV, CB, EAC LED Indicator: Power On Indicator Manufacturer Warranty: 3 years About the MEAN WELL NDR-240-24 The MEAN WELL NDR-240-24 is a high-power 240 W DIN-rail power supply with built-in active PFC for maximum efficiency and stability at 24 V DC / 10 A output. It excels with excellent efficiency up to 89 %, completely fanless convection cooling, and rugged metal housing for demanding industrial environments. Full protection features with constant current mode and automatic recovery ensure maximum operational safety against short-circuit, overload, and overvoltage. The universal 90–264 V AC input range makes it ideal for large PLC systems, machine building, plant control, and industrial automation. With international certifications, the NDR-240-24 offers high power density, extreme durability, and perfect integration into professional control cabinets.

Technical Information & Details for the MEAN WELL UHP-200-12 Power Supply Output Power: 201.6 W Output Voltage: 12 V DC Output Current: 16.8 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 94% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 40 A @115 VAC / 80 A @230 VAC Operating Temperature: −30 °C to +70 °C Cooling: Fanless design, 200W convection Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: 3.75 KVAC between input and output Dimensions (L x W x H): 194 mm x 55 mm x 26 mm Weight: approx. 468 g Safety & EMC Certificates: UL 62368-1, TUV EN62368-1, EN60335-1, CCC, EAC LED Indicator: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL UHP-200-12 The MEAN WELL UHP-200-12 is a premier power solution that combines a robust 201.6W output with a slim 26mm low-profile design, perfectly suited for modern, compact cabinet installations. This 12V model is highly sought after for its extraordinary efficiency of up to 94%, which significantly reduces energy waste and heat generation during operation. Its fanless architecture ensures a completely silent and maintenance-free experience, as the unit relies on natural air convection or heat-conducting plates to maintain thermal stability. With built-in active PFC and the capability to withstand 300VAC surge inputs, it provides an exceptionally stable voltage source for sensitive industrial electronics. Durability is a core characteristic of this series, featuring 5G anti-vibration resistance and a design qualified for high-altitude operation up to 5000 meters. The UHP-200-12 is versatile enough for a wide range of sectors, meeting the EN60335-1 and UL62368-1 safety standards required for both household appliances and industrial automation machinery. It also includes professional-grade features such as an LED power indicator and an optional DC OK active signal, making it a reliable choice for LED displays, mechanical equipment, and telecommunication systems where space is at a premium and performance cannot be compromised.

Technical Information & Details for the MEAN WELL UHP-350-12 Power Supply Output Power: 350.4 W Output Voltage: 12 V DC Output Current: 29.2 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 91% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 30 A @115 VAC / 60 A @230 VAC No-Load Power Consumption: < 0.75 W Operating Temperature: −30 °C to +70 °C Cooling: Fanless natural convection Protections: Short circuit, Overload, Over voltage, Over temperature Overvoltage Category: OVC III Isolation Voltage: 3750 V AC input to output Dimensions (H x W x D): 220 mm x 62 mm x 31 mm Weight: approx. 680 g Safety & EMC Certificates: UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC, CB, CE LED Indicator: Power On Indicator Manufacturer Warranty: 3 years Information about the MEAN WELL UHP-350-12 Delivering heavy-duty performance in a low-profile 31 mm casing, this 12V DC power supply provides up to 29.2A of output using efficient convection cooling. The unit's solid-state design handles harsh physical demands effortless with its 5G anti-vibration capability, avoiding the mechanical failure points of traditional fan-cooled models. Operating uninterrupted across a wide operating temperature range from -30 °C to +70 °C, it also safely absorbs line transients via a withstand capability for a 300 VAC surge input for 5 seconds. Compliance with rigorous standards like UL 62368-1 and BS EN/EN60335-1 confirms its suitability for industrial machinery, PoE power delivery, and automation terminals.

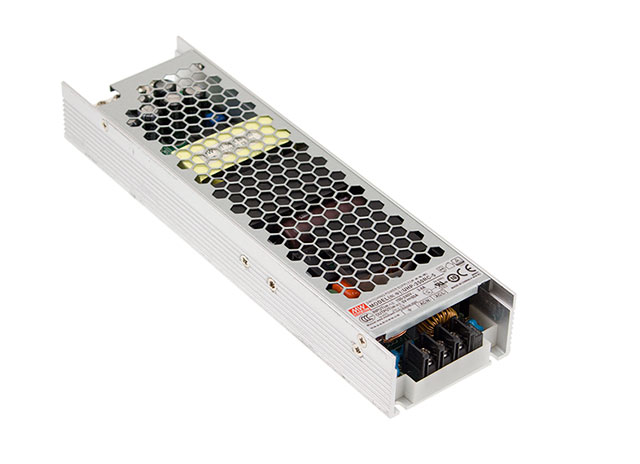

Technical Information & Details for the MEAN WELL UHP-350-36 Power Supply Output Power: 351 W Output Voltage: 36 V DC Output Current: 9.75 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 94% Ripple & Noise: ≤ 250 mVp-p Inrush Current: max. 30 A @115 VAC / 60 A @230 VAC No-Load Power Consumption: < 0.75 W Operating Temperature: −30 °C to +70 °C Cooling: Fanless natural convection Protections: Short circuit, Overload, Over voltage, Over temperature Overvoltage Category: OVC III Isolation Voltage: 3750 V AC input to output Dimensions (H x W x D): 220 mm x 62 mm x 31 mm Weight: approx. 680 g Safety & EMC Certificates: UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC, CB, CE LED Indicator: Power On Indicator Manufacturer Warranty: 3 years Information about the MEAN WELL UHP-350-36 Tailored for high-reliability industrial automation and control equipment, this 36V power source integrates 351W of conversion capability inside a compact 31 mm low-profile enclosure. The fanless design ensures silent operation free from mechanical wear, while offering structural resilience via a certified 5G anti-vibration capability suited for dynamic environments. Built to perform reliably across variable climates, it easily withstands an expanded operating temperature range from -30 °C to +70 °C. Input line security is maintained through surge immunity handling a 300 VAC surge input for 5 seconds, backed comprehensively by international safety compliances and a dependable 3-year warranty.
