DRS-240-24

Technical Information & Details for MEAN WELL HLG-185H-C1050A Power Supply Output Power: 200 W Output Voltage Range: 95 – 190 V DC Output Current: 1050 mA (adjustable via internal potentiometer) Current ADJ. Range: 525 mA to 1050 mA Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC Efficiency: 94 % Power Factor: PF ≥ 0.98 / 115 VAC, PF ≥ 0.95 / 230 VAC Current Ripple: max. 5.0% Operating Temperature: −40 °C to +90 °C (T-case) Cooling: Fanless natural convection Ingress Protection: IP65 rated Protection Functions: Short circuit, Over voltage, Over temperature Isolation Voltage: 3750 V AC (Input to Output) Dimensions (L x W x H): 228 mm x 68 mm x 38.8 mm Weight: 1.15 kg Safety Standards: UL8750, EN61347-1, EN61347-2-13, CE, EAC Typical Lifetime: > 62,000 hours Manufacturer Warranty: 7 years Information about the MEAN WELL HLG-185H-C1050A The MEAN WELL HLG-185H-C1050A is a high-performance 200W LED driver engineered for constant current mode operation, providing a reliable power source for high-power LED arrays. The "A" version stands out due to its built-in potentiometer, which allows for manual fine-tuning of the output current level between 525 mA and 1050 mA. This flexibility enables site-specific optimization of light intensity, ensuring that the LED system operates at peak efficiency without the need for complex external control wiring. With an industry-leading efficiency of 94%, this driver significantly reduces thermal stress, promoting a longer lifespan for all connected components. Encased in a rugged IP65 rated metal housing, the unit is built to withstand dusty and moist conditions typical of industrial warehouses, parking garages, and canopy lighting. The fanless design utilizes natural air convection to maintain safe operating temperatures even in harsh environments up to +90 °C. Coupled with a built-in active PFC function and a massive 7-year manufacturer warranty, the HLG-185H-C1050A ensures a maintenance-free operation for over 62,000 hours. It is the ideal choice for professional lighting installers who require a robust, high-voltage constant current driver with easy manual adjustment capabilities.

Technical Information & Details for MEAN WELL DUPS20 DC-UPS Module Rated Output Current: 20 A Input Voltage Range: 24 – 29 V DC Output Voltage Range: 21 – 29 V DC Battery Charging Current: 2 A Supported Battery Capacities: 4 AH – 135 AH (Lead-acid) Normal Battery Voltage: 24 V DC (e.g., 2 x 12 V in series) Operating Temperature: −30 °C to +70 °C Cooling: Fanless free air convection Protection Functions: Battery reverse polarity, Short circuit, Deep discharge, Over-discharge current Relay Contacts: DC BUS OK, Battery Discharge, Battery Fail (max. 30V/1A) LED Indicators: Green (DC OK), Yellow (Discharge), Red (Fail/Warning) Isolation Resistance: > 100M Ohms / 500V DC Dimensions (H x W x D): 125.2 mm x 40 mm x 113.5 mm Weight: 310 g Safety & EMC Certificates: UL62368-1, EAC, CE, UKCA, BS EN/EN55032 Class B Manufacturer Warranty: 3 Years Information about the MEAN WELL DUPS20 The MEAN WELL DUPS20 is a high-performance 20A DIN rail type DC-UPS controller designed to provide seamless backup functionality for 24V industrial power systems. When paired with a primary power supply and external lead-acid batteries, it ensures continuous system operation by immediately connecting the load to the battery pack during AC mains failure. One of its standout characteristics is the comprehensive diagnostic capability, featuring a battery test function that activates every 30 seconds to detect faulty cells or connection issues before a crisis occurs. The unit is remarkably efficient, housed in a compact 40mm slim design that optimizes rail space in crowded cabinets. It also features a sophisticated battery management system with low voltage disconnect (LVD) to prevent deep discharge, thereby protecting your battery investment. Engineered for high reliability, it supports a wide variety of battery capacities from 4AH up to 135AH, making it a versatile solution for semiconductor fabrication, industrial control systems, and critical communication infrastructure where uninterrupted power delivery is essential.

In: 10-56VDC / 490mA /  Eff. 96% / 33x21x13mm Out: 6-52VDC / 500mAUrsprungsland TW Zolltarifnr. 85044055

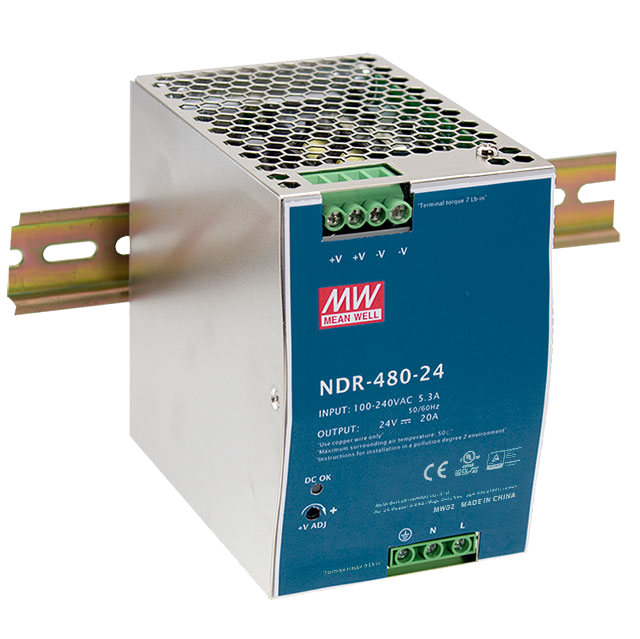

Technical Information & Details of the MEAN WELL NDR-480-24 Power Supply Output Power: 480 W Output Voltage: 24 V DC Output Current: 20 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 92.5 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @115 VAC / 60 A @230 VAC No-load Power Consumption: < 0.75 W Operating Temperature: −20 °C to +70 °C Cooling: fanless natural convection Protection Features: Short-circuit, Overload, Overvoltage, Overtemperature Overvoltage Category: OVC II Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 125.2 mm x 85.5 mm x 128.5 mm Weight: approx. 1.8 kg Safety & EMC Certificates: CE, UL 508, TUV, CB, EAC LED Indicator: Power On status indicator Manufacturer Warranty: 3 years Information about the MEAN WELL NDR-480-24 The MEAN WELL NDR-480-24 is a high-performance DIN rail power supply with 480 W and stable 24 V DC / 20 A output voltage. It excels with excellent efficiency up to 92.5 %, fanless convection cooling for silent operation, and a powerful aluminum housing design. The comprehensive protection features (short-circuit, overload, overvoltage, and overtemperature protection) with automatic recovery ensure maximum operational safety. Perfect for PLC controls, heavy industrial automation, conveyor systems, and machine building – the universal input voltage range 90–264 V AC enables worldwide deployment. With international certifications, the NDR-480-24 offers maximum energy efficiency, durability, and reliability in demanding industrial environments.
