MDR-10-24

Product information "MDR-10-24"

Technical Information & Details for the MEAN WELL MDR-10-24 Power Supply

  • Output Power: 10 W
  • Output Voltage: 24 V DC
  • Output Current: 0.42 A
  • Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz
  • Efficiency: 84 %
  • Ripple & Noise: ≤ 150 mVp-p
  • Inrush Current: max. 35 A @115 VAC / 70 A @230 VAC
  • No-load Power Consumption: < 0.75 W
  • Operating Temperature: -20 °C to +70 °C
  • Cooling: Free air convection
  • Protections: Short circuit, Overload, Over voltage
  • Isolation Resistance: 100M Ohms / 500VDC
  • Dimensions (W x H x D): 22.5 mm x 90 mm x 100 mm
  • Weight: 0.15 kg
  • Safety & EMC Certificates: UL508, TUV EN62368-1, EAC, CB, BSMI, CE
  • LED Indicator: Power On LED indicator
  • Manufacturer Warranty: 3 Years

Information on the MEAN WELL MDR-10-24

The MEAN WELL MDR-10-24 is a high-performance 24V DC industrial power supply designed for efficient mounting on DIN rail TS-35/7.5 or 15. Its ultra-slim 22.5mm profile significantly optimizes space within industrial control panels and cabinets. A key competitive advantage is the built-in DC OK active signal, providing a dedicated interface for remote monitoring and system health checks. This unit is engineered for energy efficiency, boasting an 84% typical efficiency rating and a low no-load power consumption of less than 0.75W. Operating via fanless free air convection cooling, it ensures silent and reliable performance across a wide temperature range. Safety is prioritized with specialized hiccup-mode protection against short circuits and overloads, complemented by rigorous 100% full load burn-in testing. With a 3-year warranty and global certifications, the MDR-10-24 is a dependable choice for powering PLCs, sensors, and other 24V automation components.


Verfügbare Downloads
Download MDR-10 Datenblatt
Eigenschaften für "MDR-10-24"
Approval: CB, CE, TÜV, UL
Design: Switch cabinet
Efficiency: 84%
Height: 90
Length: 22,5
Phases: One-Phase
Rated current: 0,42
Series: MDR
Voltage: 24 VDC
Warranty: 3 years
Wattage: 10 W
Weight: 0,15kg
Width: 100

Cutsomers also bought

MDR-10-12
Technical Information & Details for the MEAN WELL MDR-10-12 Power Supply Output Power: 10 W Output Voltage: 12 V DC Output Current: 0.84 A Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC Efficiency: 81 % Ripple & Noise: ≤ 120 mVp-p Inrush Current: 35 A @115 VAC / 70 A @230 VAC No-load Power Consumption: < 0.75 W Operating Temperature: -20 °C to +70 °C Cooling: Free air convection Protections: Short circuit, Overload, Over voltage Isolation Resistance: 100M Ohms / 500VDC Dimensions (W x H x D): 22.5 mm x 90 mm x 100 mm Weight: 0.15 kg Safety Standards: UL508, TUV EN62368-1, EAC, CB, BSMI LED Indicator: LED indicator for power on Manufacturer Warranty: 3 Years Information on the MEAN WELL MDR-10-12 The MEAN WELL MDR-10-12 is a high-performance 10W industrial power supply tailored for DIN rail installations where cabinet space is at a premium. Its ultra-slim 22.5mm profile allows for significant space savings on TS-35 rails without sacrificing industrial-grade durability. A standout technical characteristic is the built-in DC OK active signal, which provides a dedicated output to facilitate remote status monitoring and automated system responses. Engineered for longevity, the unit features a fanless design that relies on natural convection cooling, ensuring silent operation and reducing mechanical failure points. Reliability is further bolstered by a 100% full load burn-in test and robust protection circuitry, including automatic recovery hiccup mode for overloads and short circuits. With its wide input range (85-264VAC) and high isolation resistance, the MDR-10-12 is a premier choice for powering sensors, PLCs, and small-scale automation equipment requiring a stable 12V DC supply.

from €9.80*
NDR-120-24
Technical Information & Details for the MEAN WELL NDR‑120‑24 Power Supply Output Power: 120 W Output Voltage: 24 V DC Output Current: 5 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 88 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 20 A @115 VAC / 40 A @230 VAC No-Load Power Consumption: < 0.75 W Operating Temperature: −20 °C to +70 °C Cooling: fanless natural convection Protection Features: short-circuit, overload, overvoltage, overtemperature Overvoltage Category: OVC II Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 125.2 mm x 40 mm x 113.5 mm Weight: approx. 670 g Safety & EMC Certificates: CE, UL 508, TUV, CB, EAC LED Indicator: Power On Indicator Manufacturer Warranty: 3 years About the MEAN WELL NDR-120-24 The MEAN WELL NDR-120-24 is a powerful DIN-rail industrial power supply delivering 120 W with stable 24 V DC / 5 A output. It excels with superior efficiency up to 88 %, fanless natural convection cooling for silent operation, and a ultra-narrow 40 mm metal housing. Comprehensive protection features (short-circuit, overload, overvoltage, overtemperature) with automatic recovery ensure maximum operational safety. Ideal for PLC controls, industrial automation, sensor networks, and building management systems – the universal 90–264 V AC input range enables global deployment. With international certifications, the NDR-120-24 provides optimal energy efficiency, durability, and space savings in demanding industrial environments.

from €23.10*
ELG-200-24
Technical Information & Details for MEAN WELL ELG-200-24 Power Supply Output Power: 199.68 W Output Current: 8.33 A Output Voltage: 24 V DC Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 92% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 60 A @230 VAC Standby Power Consumption: < 0.5 W Operating Temperature: −40 °C to +90 °C (case temperature Tcase) Cooling: fanless free air convection Protections: short circuit, over current, over voltage, over temperature Overvoltage Category: OVC II Isolation Voltage: 3750 V AC input to output Dimensions (L x W x H): 244 mm x 71 mm x 37.5 mm Weight: approx. 1220 g Safety & EMC Certificates: CE, UL8750 (Type HL), EN61347-1, EN61347-2-13, EAC, BIS Protection Rating & Feature: IP67, non-dimmable constant voltage/constant current output, standard input cable Manufacturer Warranty: 5 years Information on the MEAN WELL ELG-200-24 Direct supply stability for standard 24 V LED installations is the core strength of the MEAN WELL ELG-200-24. Operating with continuous dual-mode constant voltage and constant current capabilities, this non-dimmable power unit efficiently outputs close to 200 W for industrial and architectural lighting setups. Its heavy-duty aluminum enclosure is built to stringent IP67 standards, preventing any intrusion of water or dust in harsh outdoor environments. Standard compliance with Type HL requirements allows safe operation in Class I, Division 2 hazardous zones. Engineered to endure harsh mechanical vibrations with its certified 5G vibration rating, this reliable power supply is backed by a full 5-year warranty.

from €40.00*
HDR-60-12
Technical Information & Details about the MEAN WELL HDR-60-12 Power Supply Output Power: 60 W Output Voltage: 12 V DC Output Current: 4,5 A Current Range: 0 – 4,5 A Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational), 47 – 63 Hz Efficiency: up to 88 % Ripple & Noise: ≤ 120 mVp-p Output Voltage Adjustment Range: 10,8 – 13,8 V DC Voltage Tolerance: ±1,0 % Line Regulation: ±1,0 % Load Regulation: ±1,0 % Setup, Rise Time: 500 ms, 50 ms @230 V AC / 115 V AC (full load) Hold-up Time: 30 ms @230 V AC / 12 ms @115 V AC (full load) Inrush Current: 30 A @115 V AC / 60 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Operating Temperature: −30 °C to +70 °C (with derating according to curve) Cooling: fanless free air convection Protection Functions: short circuit (hiccup mode, auto recovery), overload (constant current limiting 50–100 % of rated output voltage, auto recovery), overvoltage (shut down, re‑power to recover) Overvoltage Category: OVC III (up to 2000 m altitude) Isolation Voltage: 4000 V AC between input and output Isolation Resistance: ≥ 100 MΩ @ 500 V DC, 25 °C, 70 % RH Dimensions (W x H x D): 52,5 mm x 90 mm x 54,5 mm Weight: approx. 190 g Housing Material: insulating plastic, Class II, ultra-slim step-shape Mounting: DIN rail TS35/7,5 or TS35/15 Safety & EMC Certifications: IEC 62368-1, UL 62368-1, UL 508, TUV BS EN/EN 61558-2-16, BS EN/EN 61558-1, EAC TP TC 004, BSMI, BIS IS13252, compliant with BS EN/EN 55032, BS EN/EN 55035, BS EN/EN 61000-6-2, BS EN/EN 61204-3 LED Indicator: Power On LED indicator Manufacturer Warranty: 3 years About the MEAN WELL HDR-60-12 The MEAN WELL HDR-60-12 is a 60 W ultra-slim DIN-rail power supply that delivers a robust 12 V DC / 4,5 A output in a compact 52,5 mm wide step-shape housing, ideal for space-constrained distribution boards and industrial control cabinets. Its wide 85–264 V AC / 120–370 V DC input range and high efficiency up to 88 % support energy-efficient operation in building automation, home automation, and industrial control environments. The adjustable 10,8–13,8 V output range allows precise tuning of the 12 V bus to compensate for line voltage drops, ensuring reliable supply for relays, actuators, sensors, and control electronics. The Class II plastic enclosure provides reinforced insulation and eliminates the need for a protective earth connection, which improves electrical safety and simplifies installation. With fanless free air convection, low no-load power consumption below 0.3 W, a wide operating temperature range from −30 °C to +70 °C, and comprehensive protection and certification features, the HDR-60-12 is a durable, low-maintenance 12 V power solution for demanding household and industrial automation projects.

from €16.10*
SDR-240-24
Technical Information & Details for the MEAN WELL SDR-240-24 Power Supply Output Power: 240 W (360 W Peak for 3 seconds) Output Voltage: 24 V DC Output Current: 10 A Input Voltage Range: 88 – 264 V AC / 124 – 370 V DC, 47 – 63 Hz Efficiency: up to 94 % Ripple & Noise: ≤ 50 mVp-p Inrush Current: 33 A @ 115 VAC / 55 A @ 230 VAC Power Factor: PF > 0.93 Operating Temperature: −25 °C to +70 °C Cooling: Free air convection (fanless) Protections: Short circuit, Overload, Over voltage, Over temperature DC OK Signal: Built-in DC OK relay contact Isolation Voltage: 3000 V AC between Input and Output Dimensions (W x H x D): 63 mm x 125.2 mm x 113.5 mm Weight: 1.03 kg Safety & EMC Certificates: UL 508, TUV BS EN/EN62368-1, EAC, CE, CB LED Display: Power On Indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL SDR-240-24 The MEAN WELL SDR-240-24 is a high-performance industrial power supply designed for DIN rail mounting, offering an exceptional efficiency of up to 94%. This high efficiency significantly reduces power dissipation and heat generation, allowing the unit to operate reliably through free air convection without the need for active cooling fans. A standout characteristic is its 150% peak load capability, which enables the power supply to deliver up to 360W for 3 seconds. This feature is particularly crucial for industrial applications involving inductive or capacitive loads that require a high initial startup current, ensuring system stability without over-dimensioning the entire power architecture. Beyond its raw power, the SDR-240-24 features built-in active PFC function (Power Factor Correction), ensuring compliance with harmonic current regulations and optimizing energy usage. The slim 63mm width design saves critical space on the TS-35/7.5 or 15 rail, making it an ideal choice for crowded control cabinets. For enhanced system monitoring, it includes a DC OK relay contact, providing a simple way to integrate status signals into a PLC or supervisory system. With comprehensive industrial immunity levels and a rugged metal housing, this unit is perfectly suited for heavy-duty automation, telecommunications, and renewable energy environments where reliability and long-term durability are non-negotiable.

from €74.70*

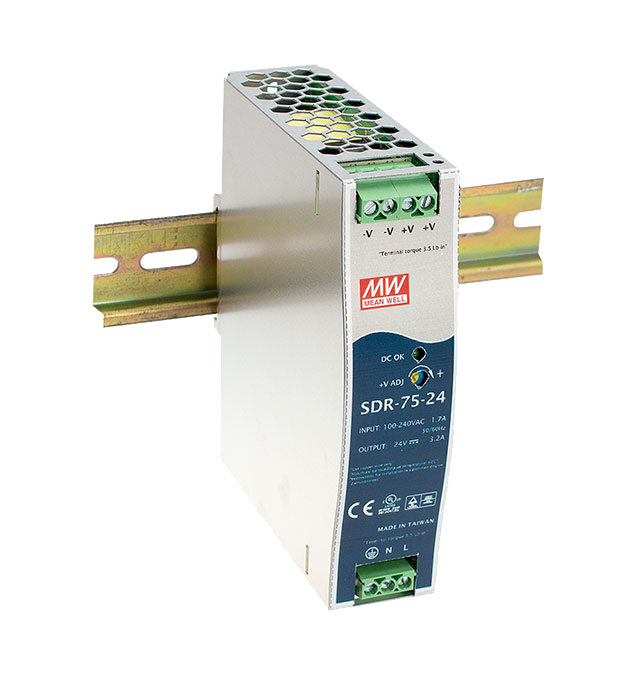

SDR-75-24
