ORH-36-24Y

Quantity	Unit price
from 1	€40.44*
from 5	€38.50*
from 10	€36.80*
from 20	€35.77*

Prices excl. VAT plus shipping costs zzgl. Versandkosten

Product number: 201367

Product information "ORH-36-24Y"

Technical Information & Details for the Comatec ORH-36-24Y Power Supply

Output Power: 36 W
Output Voltage: 24 V DC
Output Current: 1.5 A
Input Voltage Range: 195 – 265 V AC, 48 – 63 Hz
Efficiency: up to 89.5 %
Ripple & Noise: < 50 mVpp (Line), 200 mVpp (Switching)
Inrush Current: max. 10 Apk (@265 VAC)
No-Load Power Consumption: < 230 mW
Operating Temperature: −10 °C to +50 °C
Cooling: Natural convection, fanless
Protection Functions: Overload, Over-voltage, High Temperature, Short-circuit (Hiccup Mode)
Protection Class & IP Rating: Class II (in electrical box), IP64 (with proper IP64 cable connections)
Isolation Voltage: 4242 V DC (Dielectric strength PRI/SEC)
Dimensions (H x W x D): Dedicated trunking box housing
Weight: approx. 150 g
Safety & EMC Certificates: CE, EN60335-1, EN55032 (Class B), RoHS, ErP
Product Life: > 100,000 hours

Information about the Comatec ORH-36-24Y

Engineered specifically for installation inside junction and trunking boxes, the Comatec ORH-36-24Y delivers efficient switch-mode power conversion for decentralized applications. Providing a steady Output Voltage: of 24 V DC at 36 watts, this unit fits neatly where space is at a absolute premium. Installers benefit from its specialized form factor designed to integrate smoothly into standard building infrastructure.

Operational safety is a core strength, featuring robust electronic safeguards including hiccup-mode current limiting to handle overloads and short circuits safely. Compliance with rigorous regulatory frameworks is verified through key Safety & EMC Certificates: like EN60335-1 and CE standards. Furthermore, natural convection cooling ensures reliable, silent operation without mechanical fans.

Designed for prolonged field deployment, the internal architecture achieves an exceptional calculated component lifetime exceeding 100,000 hours. When installed correctly, the unit achieves an Protection Class & IP Rating: of IP64 (using appropriate sealed connections), guarding against dust and moisture ingress. This makes it an ideal choice for hidden, long-term installations in diverse environments.

Ultimately, the reinforced dielectric insulation strength of 4242 V DC between primary and secondary circuits guarantees high operational safety. Combined with ultra-low no-load power consumption under 230 mW, it fully addresses modern energy-saving directives (ErP). It represents a professional, compact solution for modern electrical wiring needs.

Weiterführende Links zu "ORH-36-24Y"

Fragen zum Artikel?
Weitere Artikel von Comatec

Verfügbare Downloads

Download ORH36 Datenblatt

Eigenschaften für "ORH-36-24Y"

Approval:	CE
Height:	53,7
Length:	51,7
Rated current:	1,5
Round:	Ja
Voltage:	24 VDC
Wattage:	36 W
Weight:	0,150kg
Width:	32

Cutsomers also bought

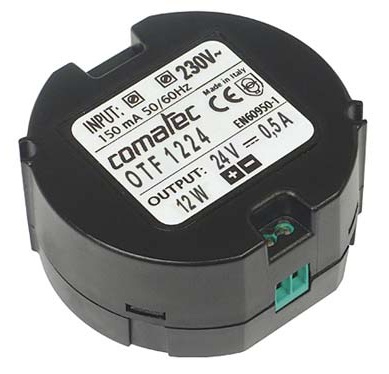

OTF-12-24
