OTF-12-24

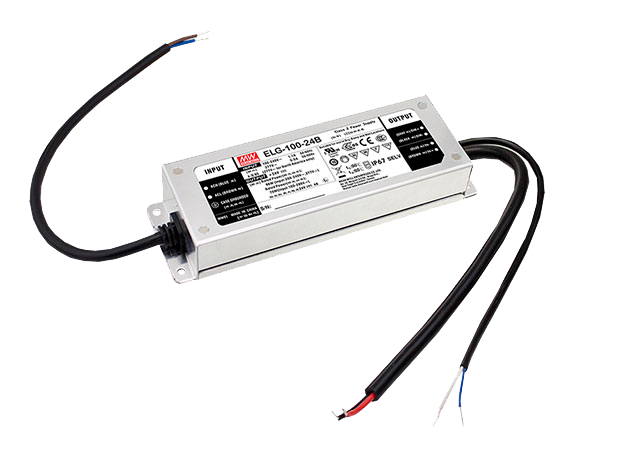

Technical Information & Details for MEAN WELL ELG-100-24AB Power Supply Output Power: 96 W (at 200–305 V AC) / 70 W (at 100–180 V AC) Output Voltage: 24 V DC Output Current: 4.0 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: Up to 90% Ripple & Noise: ≤ 200 mVp-p Inrush Current: COLD START 60 A @ 230 V AC No Load / Standby Power: < 0.5 W Operating Temperature: −40 °C to +90 °C (Case temperature Tcase) Cooling: Fanless free air convection Protections: Short circuit (Hiccup mode), Overload (Constant current limiting), Over voltage, Over temperature Isolation Voltage: 3750 V AC between Input and Output Dimming & Adjustment: 3-in-1 dimming (0-10V, PWM, resistance) + internal Vo/Io potentiometers (AB-Type) Ingress Protection / Housing: IP65, Metal housing Dimensions (L x W x H): 199 mm x 63 mm x 35.5 mm Weight: approx. 850 g Safety & EMC Standards: UL8750 (Type HL), EN61347-1, EN61347-2-13, EN55015, EAC, CB, CE AC Input Connection: 2-wire AC input cable (Standard model) Warranty: 5 Years Information about MEAN WELL ELG-100-24AB Featuring a dual adjustment scheme, the MEAN WELL ELG-100-24AB pairs versatile 3-in-1 dimming (0-10V, PWM, resistance) control with internal potentiometers engineered for precise manual voltage and current tuning. Built into a high-grade metallic enclosure rated at IP65, it successfully prevents water jet penetration and dust build-up. The unit relies on quiet convection cooling to ensure stable output stability across an operating case temperature span from -40 °C to +90 °C. Standardized under UL8750 (Type HL) safety criteria, this driver is suitable for Class I, Division 2 hazardous zone installations and comes covered by an extended 5 years manufacturer warranty.

Technical Information & Details for the Comatec ORH-36-24Y Power Supply Output Power: 36 W Output Voltage: 24 V DC Output Current: 1.5 A Input Voltage Range: 195 – 265 V AC, 48 – 63 Hz Efficiency: up to 89.5 % Ripple & Noise: < 50 mVpp (Line), 200 mVpp (Switching) Inrush Current: max. 10 Apk (@265 VAC) No-Load Power Consumption: < 230 mW Operating Temperature: −10 °C to +50 °C Cooling: Natural convection, fanless Protection Functions: Overload, Over-voltage, High Temperature, Short-circuit (Hiccup Mode) Protection Class & IP Rating: Class II (in electrical box), IP64 (with proper IP64 cable connections) Isolation Voltage: 4242 V DC (Dielectric strength PRI/SEC) Dimensions (H x W x D): Dedicated trunking box housing Weight: approx. 150 g Safety & EMC Certificates: CE, EN60335-1, EN55032 (Class B), RoHS, ErP Product Life: > 100,000 hours Information about the Comatec ORH-36-24Y Engineered specifically for installation inside junction and trunking boxes, the Comatec ORH-36-24Y delivers efficient switch-mode power conversion for decentralized applications. Providing a steady Output Voltage: of 24 V DC at 36 watts, this unit fits neatly where space is at a absolute premium. Installers benefit from its specialized form factor designed to integrate smoothly into standard building infrastructure. Operational safety is a core strength, featuring robust electronic safeguards including hiccup-mode current limiting to handle overloads and short circuits safely. Compliance with rigorous regulatory frameworks is verified through key Safety & EMC Certificates: like EN60335-1 and CE standards. Furthermore, natural convection cooling ensures reliable, silent operation without mechanical fans. Designed for prolonged field deployment, the internal architecture achieves an exceptional calculated component lifetime exceeding 100,000 hours. When installed correctly, the unit achieves an Protection Class & IP Rating: of IP64 (using appropriate sealed connections), guarding against dust and moisture ingress. This makes it an ideal choice for hidden, long-term installations in diverse environments. Ultimately, the reinforced dielectric insulation strength of 4242 V DC between primary and secondary circuits guarantees high operational safety. Combined with ultra-low no-load power consumption under 230 mW, it fully addresses modern energy-saving directives (ErP). It represents a professional, compact solution for modern electrical wiring needs.
