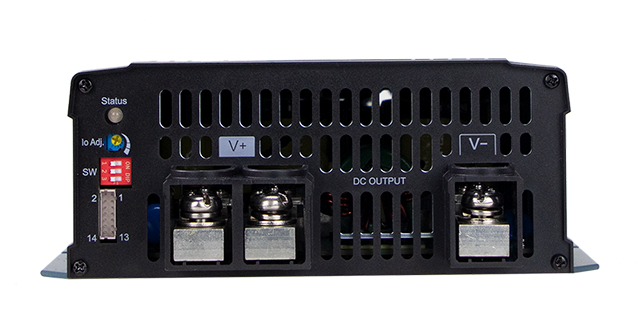

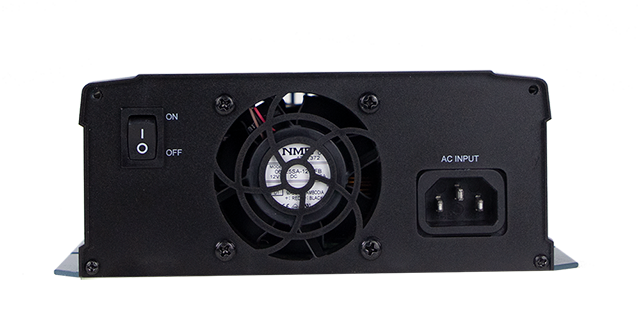

For Trucki application with current firmware Technical Specifications & Details for MEAN WELL NPB-1700-48 Charger Maximum Output Power: 1680 W Nominal Output Voltage: 48 V DC Charging Voltage Range: 42 V – 80 V (Adjustable) Maximum Charging Current: 25 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: Up to 94 % Power Factor: PF > 0.98 / 115 VAC (Full Load) Recommended Battery Capacity: 100 – 330 Ah Operating Temperature: −30 °C to +70 °C Cooling: Thermal controlled DC fan for noise reduction Protection Functions: Short circuit, Over voltage, Over temperature, Battery under voltage, Reverse polarity Communication: Built-in CANBus protocol for control, setting, and monitoring Charging Stages: Selectable 2 or 3-stage charging curves Dimensions (L x W x H): 307.7 mm x 184 mm x 70 mm Weight: Approx. 2.96 kg Safety & EMC Certificates: CB, DEKRA, UL62368-1, EN60335-1/-2-29, CE, EAC LED Indicator: Multi-color status LED (Charging, Full, Abnormal) Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-1700-48 The MEAN WELL NPB-1700-48 stands as a premier 1680W high-reliability charger, engineered to meet the rigorous demands of modern industrial and telecommunication power systems. Its most significant strength is the ultra-wide output range of 42 V to 80 V, powered by advanced auto-ranging technology that detects battery voltage automatically to ensure safe and efficient charging for various chemistries like Li-ion (LiFePO4) and Lead-acid (Gel, AGM). Designed with a fully digital control scheme, it features a built-in CANBus 2.0B interface for seamless integration into smart networks, allowing for remote monitoring and the programming of custom charging curves via the SBP-001 unit. For onsite flexibility, the device incorporates front-panel DIP switches to easily toggle between 2-stage and 3-stage charging or select from four preset curves. Exceptional durability is guaranteed by the non-destructive battery reverse polarity protection and a thermal-controlled fan system that maintains performance across a wide temperature spectrum of -30 °C to +70 °C. With a peak efficiency of 94 % and a 3-year manufacturer warranty, the NPB-1700-48 provides an unmatched charging solution for AGVs, heavy-duty specialty vehicles, and high-capacity backup energy storage.

Für Trucki Anwendung mit aktueller Firmware In: 90-264VAC 47-63Hz  127-370VDC  Out: 55,2-57,6VDC /programable with SBP-001: 42~80VDC / Max. 1210W / 18A / Eff. 94% / 250x158x67mmTyp. Akku: 60-210Ah Battery Charger

Für Trucki Anwendung mit aktueller Firmware In: 90-264VAC 47-63Hz  127-370VDC  Out: 27,6-28,8VDC / programable with SBP-001: 21-42VDC / Max. 1210W / 36A / Eff. 93% / 250x158x67mmTyp. Akku: 120-420Ah Battery Charger

Technical Information & Details about the MEAN WELL HDR-60-5 Power Supply Output Power: 54 W Output Voltage: 5 V DC Output Current: 6,5 A Current Range: 0 – 6,5 A Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational), 47 – 63 Hz Efficiency: up to 87,5 % Ripple & Noise: ≤ 80 mVp-p Output Voltage Adjustment Range: 4,5 – 5,5 V DC Voltage Tolerance: ±2,0 % Line Regulation: ±1,0 % Load Regulation: ±1,0 % Setup, Rise Time: 500 ms, 50 ms @230 V AC / 115 V AC (full load) Hold-up Time: 30 ms @230 V AC / 12 ms @115 V AC (full load) Inrush Current: 30 A @115 V AC / 60 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Operating Temperature: −30 °C to +70 °C (with derating according to curve) Cooling: fanless free air convection Protection Functions: short circuit (hiccup mode, auto recovery), overload (constant current limiting 50–100 % of rated output voltage, auto recovery), overvoltage (shut down, re‑power to recover) Overvoltage Category: OVC III (up to 2000 m altitude) Isolation Voltage: 4000 V AC between input and output Isolation Resistance: ≥ 100 MΩ @ 500 V DC, 25 °C, 70 % RH Dimensions (W x H x D): 52,5 mm x 90 mm x 54,5 mm Weight: approx. 190 g Housing Material: insulating plastic, Class II, ultra-slim step-shape Mounting: DIN rail TS35/7,5 or TS35/15 Safety & EMC Certifications: IEC 62368-1, UL 62368-1, UL 508, TUV BS EN/EN 61558-2-16, BS EN/EN 61558-1, EAC TP TC 004, BSMI, BIS IS13252, compliant with BS EN/EN 55032, BS EN/EN 55035, BS EN/EN 61000-6-2, BS EN/EN 61204-3 LED Indicator: Power On LED indicator Manufacturer Warranty: 3 years About the MEAN WELL HDR-60-5 The MEAN WELL HDR-60-5 is a 60 W ultra-slim DIN-rail power supply that provides a powerful 5 V DC / 6,5 A output in a compact 52,5 mm (3 SU) wide step-shape housing, ideal for applications that require a high-current 5 V rail in narrow distribution boards. Its wide 85–264 V AC / 120–370 V DC input range and high efficiency up to 87,5 % support energy-efficient operation in home automation, industrial control, and communication systems. The adjustable 4,5–5,5 V output range allows precise tuning of the 5 V bus to compensate for voltage drops along wiring, ensuring stable supply for logic controllers, gateways, HMIs, and embedded electronics. The Class II plastic enclosure offers reinforced insulation and eliminates the need for a protective earth connection, enhancing user safety and simplifying installation. With fanless free air convection, low no-load power consumption below 0.3 W, a wide operating temperature range from −30 °C to +70 °C, and comprehensive protection and certification features, the HDR-60-5 is a robust, long-life 5 V power solution for demanding household and industrial automation applications.
