• Series Name: UHP-1500
• Model No.: UHP-1500-48
• Communication Protocol: CANBus protocol (Blank type)
• Rated Power: 1512W
• Rated Current: 31.5A
• DC Voltage: 48V (DC O/P range: 48–57.6V)
• Voltage Adjustment Range: 48–57.6V (by built-in potentiometer SVR)
• Ripple & Noise (Max.): 350 mV p-p
• Voltage Tolerance: ±1.0%
• Line Regulation: ±0.5%
• Load Regulation: ±0.5%
• Input Voltage Range: 90–264 Vac (250–370 Vdc)
• Frequency Range: 47–63 Hz
• Power Factor (Typ.): PF > 0.95 / 230 Vac, PF > 0.99 / 115 Vac at full load
• Efficiency (Typ.): 95%
• AC Current (Typ.): 8A / 230 Vac, 11A / 115 Vac
• Inrush Current (Typ.): Cold start 60A / 230 Vac, 30A / 115 Vac
• Leakage Current: < 0.75 mA / 240 Vac
• Working Temperature Range: −30 °C to +70 °C
• Protection Functions: Short circuit, Overload (105–125% rated current), Over voltage (60–67V), Over temperature
• Auxiliary Power: 12V @ 0.4A
• Dimensions (L x W x H): 290 mm x 140 mm x 41 mm
• Weight: 2.51 kg
• Safety & EMC Standards: UL62368-1, DEKRA BS EN/EN62368-1, EAC TP TC 004, BS EN/EN55032 Class B (Conducted) / Class A (Radiated)
• Warranty: 5 years

Information about the UHP-1500-48

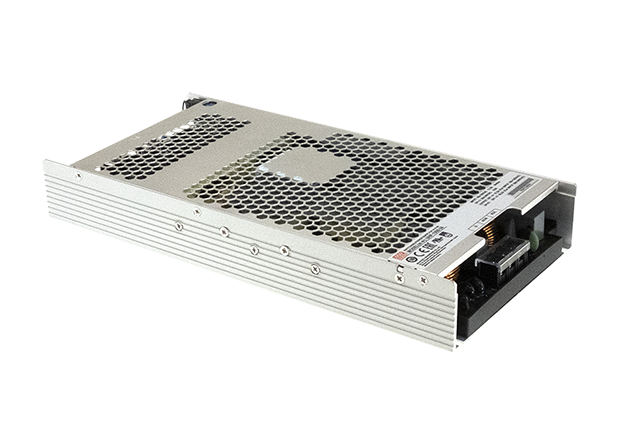

The MEAN WELL UHP-1500-48 is a 1500W single-output slim power supply featuring a low profile design of just 41 mm. Engineered with a fanless and conduction-cooled design, it achieves a high efficiency of up to 95% and operates reliably under free air convection across a wide temperature range from −30 °C to +70 °C.

This standard blank-type model integrates a built-in CANBus protocol for digital communication, monitoring, and control. It also offers output voltage programming (50–120%) and constant current level programming (20–100%), complemented by complete electronic protections, remote ON-OFF control, an active DC-OK signal, and a robust 5G anti-vibration capability suited for demanding industrial automation, control systems, and test equipment.
