Technical Information & Details for the MEAN WELL MDR-60-24 Power Supply Output Power: 60 W Output Voltage: 24 V DC Output Current: 2.5 A Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz Efficiency: 87% Ripple & Noise: ≤ 150 mVp-p Inrush Current: 30 A @ 115 VAC / 60 A @ 230 VAC No-load Power Consumption: < 0.75 W Operating Temperature: −20 °C to +70 °C Cooling: Fanless free air convection Protections: Short circuit, Overload (Constant current limiting), Over voltage Special Functions: DC OK relay contact Isolation Voltage: 3000 V AC I/P-O/P Dimensions (W x H x D): 40 mm x 90 mm x 100 mm Weight: 287 g Safety & EMC Certificates: UL508, UL62368-1, TUV EN62368-1, Class I Div 2 Hazardous Locations T4 LED Indicator: Power-On LED indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL MDR-60-24 The MEAN WELL MDR-60-24 serves as a robust and highly efficient 24V power solution specifically tailored for industrial DIN rail applications[cite: 3, 4, 19]. Its compact 40mm design ensures it fits easily onto TS-35/7.5 or 15 rails, making it a perfect fit for crowded control panels[cite: 8, 19]. A standout feature is the built-in DC OK relay contact, which provides a simple yet effective way to monitor output health remotely[cite: 11, 66]. Engineered for harsh environments, it carries Class I, Div 2 hazardous location certification and operates reliably across a wide temperature range from -20 to +70°C[cite: 9, 19]. The power supply is designed with energy efficiency in mind, boasting an 87% typical efficiency and a no-load power consumption of less than 0.75W[cite: 12, 19]. Equipped with constant current limiting protection and automatic recovery, the MDR-60-24 guarantees long-term stability and minimal maintenance for critical automation tasks[cite: 19].

Technical Information & Details for the MEAN WELL SDR-480-24 Power Supply Output Power: 480 W (720 W Peak) Output Voltage: 24 V DC Output Current: 20 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 94% Ripple & Noise: ≤ 100 mVp-p Inrush Current: 40 A @ 115 VAC / 80 A @ 230 VAC Power Factor: PF > 0.94 Operating Temperature: -25 °C to +70 °C Cooling: Free air convection Protection Functions: Short circuit, Overload, Over voltage, Over temperature Voltage Adjustment Range: 24 – 28 V Isolation Voltage: 3000 V AC I/P-O/P Dimensions (W x H x D): 85.5 mm x 125.2 mm x 128.5 mm Weight: 1.6 kg Safety & EMC Certificates: UL 508, TUV EN62368-1, BS EN/EN61000-6-2, EAC, CE Status Indicators: DC OK relay contact and LED indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL SDR-480-24 The MEAN WELL SDR-480-24 stands out as a high-performance solution for demanding industrial environments, boasting an impressive efficiency of up to 94%. This high efficiency significantly minimizes power dissipation, allowing the unit to operate reliably using only free air convection cooling within a slim 85.5mm chassis. One of its most critical advantages is the 150% peak load capability, which enables the power supply to deliver up to 720W for 3 seconds. This feature is particularly vital for powering loads with high startup currents, such as motors or capacitive loads, ensuring system stability without the need to over-dimension the power supply unit. Engineered for maximum reliability, the SDR-480-24 includes a built-in active PFC function and a DC OK relay contact for remote monitoring of the output status. The unit is fully compliant with industrial immunity levels (EN61000-6-2) and carries UL 508 approval, making it a robust choice for industrial control systems, fabrication equipment, and automation machinery. With its constant current limiting circuit and comprehensive protections against short circuits and over-temperature, this DIN rail power supply ensures long-term operational safety and minimal maintenance requirements in complex hardware setups.

155W Einzelausgang mit Ladegerät (UPS Funktion) 155W Single Output with Battery Charger (UPS Function)

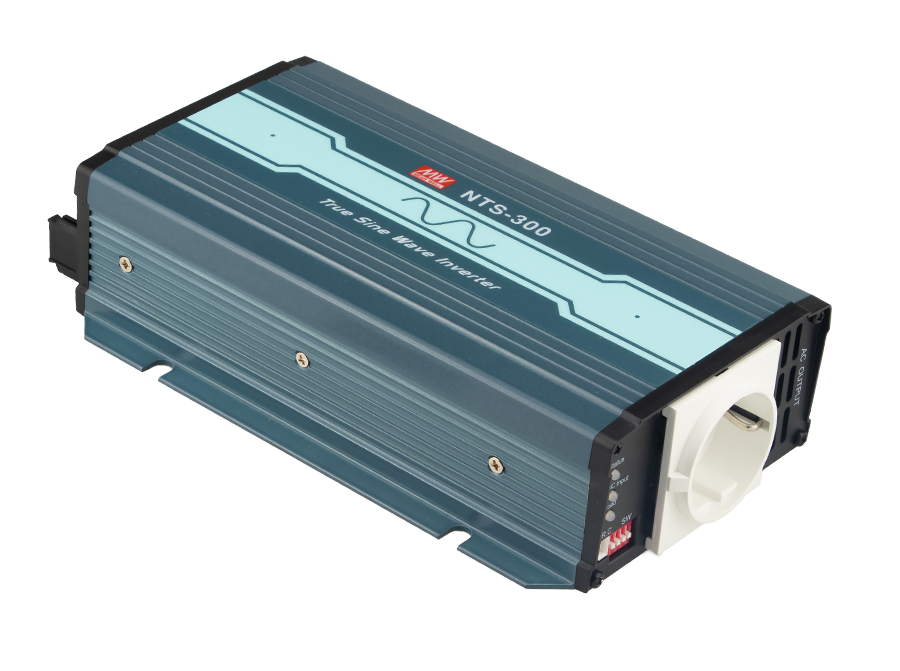

Technical Information & Details for the MEAN WELL NTS-300-224EU Power Inverter Output Power: 300 W (Continuous) / 600 W (Surge) Output Voltage: 230 V AC (Selectable 200/220/230/240 Vac) Output Frequency: 50 Hz / 60 Hz (Selectable) DC Input Voltage: 24 V DC Input Voltage Range: 20 – 33 V DC Efficiency: up to 92% Waveform: True Sine Wave (THD < 3%) No Load Dissipation: ≤ 1.3 W (Saving Mode) Operating Temperature: −25 °C to +65 °C Cooling: Fanless design by free air convection Protections: Reverse polarity, DC low alarm/shutdown, Over voltage, Short circuit, Overload, Over temperature Battery Types: Lead-acid or Li-ion batteries Remote Control: Power ON-OFF remote control capability Dimensions (L x W x H): 210 mm x 130 mm x 55 mm Weight: approx. 1.3 kg Safety & EMC Certificates: CB, DEKRA, E13, EAC, CE, BS EN/EN62368-1 LED Display: Front panel indicators for operation status Manufacturer Warranty: 3 years Detailed Information on the MEAN WELL NTS-300-224EU The MEAN WELL NTS-300-224EU is a highly reliable 300W off-grid true sine wave DC-AC power inverter specifically engineered for 24V battery systems. Utilizing an advanced digital MCU control, this inverter delivers a clean true sine wave output with less than 3% THD, ensuring the safe operation of sensitive professional equipment such as medical tools, high-end laptops, and precision telecommunications hardware. Its fanless design utilizes natural air convection for cooling, providing a completely silent energy solution that is perfectly suited for use in quiet environments like residential mobile homes, research vessels, or remote monitoring stations where mechanical noise is prohibited. A primary strength of the NTS-300 series is its 600W peak surge power capability, which provides the necessary overhead to start inductive loads and small motors without triggering system shutdowns. The device offers unmatched versatility through user-adjustable DIP switches, allowing for the easy configuration of AC output voltage and frequency to match regional requirements. Furthermore, the integrated energy-saving mode reduces no-load power consumption to as little as 1.3W, maximizing the longevity of the connected battery bank. Built for durability, it features conformal coating for environmental protection and a wide operating temperature range from -25°C to +65°C, making it a robust choice for solar energy systems, marine yachts, and emergency vehicle power backups.
