Technical Information & Details of the MEAN WELL HDR-15-24 Power Supply Output Power: 15.2 W Output Voltage: 24 V DC Output Current: 0.63 A Output Current Range: 0 – 0.63 A Output Voltage Adjustment Range: 21.6 – 29 V DC Ripple & Noise: ≤ 150 mVp-p Voltage Tolerance: ±1.0 % Line Regulation: ±1.0 % Load Regulation: ±1.0 % Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational) Input Frequency: 47 – 63 Hz Efficiency (typ.): 86 % AC Input Current (typ.): 0.5 A @115 V AC / 0.25 A @230 V AC Inrush Current (typ.): 25 A @115 V AC / 45 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Overload Protection: 110 – 145 % of rated power, constant current limiting within 50 – 100 % of rated output voltage, hiccup mode when Vout < 50 %, auto recovery Overvoltage Protection: 30 – 36 V DC, shut off output, clamping by zener diode Operating Temperature: −30 °C to +70 °C (derating according to curve) Operating Humidity: 20 – 90 % RH, non-condensing Storage Temperature / Humidity: −40 °C to +85 °C, 10 – 95 % RH, non-condensing Temperature Coefficient: ±0.03 % / °C (0 – 50 °C) Vibration Resistance: 10 – 500 Hz, 2 G, 10 min./cycle, 60 min. per axis (X, Y, Z) Operating Altitude: up to 2,000 m (derating above 2,000 m) Isolation Voltage: 4 kVAC (input–output) Isolation Resistance: > 100 MΩ @500 VDC, 25 °C, 70 % RH Dimensions (W x H x D): 17.5 mm x 90 mm x 54.5 mm Weight: approx. 74 g Mounting: DIN rail TS35/7.5 or TS35/15, ultra-slim 1-SU step-shape housing Housing / Isolation Class: plastic housing, isolation Class II, LPS (Limited Power Source) Front Indicators / Controls: LED indicator for power on, adjustable DC output voltage Safety Approvals: UL62368‑1, UL508, TUV BS EN/EN61558‑2‑16, BS EN/EN61558‑1, IEC62368‑1, EAC TP TC 004, BSMI CNS15598‑1, BIS IS13252 (Part1) (except 48 V) EMC Emission: EN55032 (CISPR32), CNS15936 Class B; EN61000‑3‑2, EN61000‑3‑3 EMC Immunity: EN55035, EN61000‑6‑2, EN61204‑3; EN61000‑4‑2/3/4/5/6/8/11 MTBF (typ.): 3,724,300 h (Tel

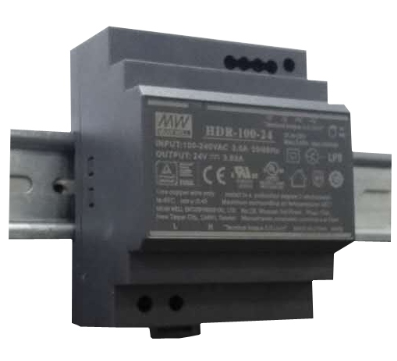

Technical Information & Details about the MEAN WELL HDR-100-24 Power Supply Output Power: 92 W Output Voltage: 24 V DC Output Current: 3.83 A Current Range: 0 – 3.83 A Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational), 47 – 63 Hz Efficiency: up to 90 % Ripple & Noise: ≤ 150 mVp-p Output Voltage Adjustment Range (LPS type): 24 – 25.5 V DC Extended Adjustment Range (Non‑LPS “N” type): 21.6 – 29 V DC Voltage Tolerance: ±2.0 % Line Regulation: ±1.0 % Load Regulation: ±1.0 % Setup, Rise Time: 500 ms, 60 ms @230 V AC / 115 V AC (full load) Hold-up Time: 30 ms @230 V AC / 12 ms @115 V AC (full load) AC Input Current (typ.): 3 A @115 V AC / 1.6 A @230 V AC Inrush Current: 35 A @115 V AC / 70 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Operating Temperature: −30 °C to +70 °C (with derating according to curve) Operating Humidity: 20 – 90 % RH, non‑condensing Storage Conditions: −40 °C to +85 °C, 10 – 95 % RH, non‑condensing Cooling: fanless free air convection Protection Features: short circuit (hiccup mode, auto recovery), overload (constant current limiting within 50–100 % of rated output voltage, auto recovery), overvoltage (shut down, re‑power to recover) Overvoltage Protection Threshold: 30 – 36 V DC Overvoltage Category: OVC III (up to 2000 m altitude) Isolation Voltage: 4000 V AC between input and output Isolation Resistance: ≥ 100 MΩ @ 500 V DC, 25 °C, 70 % RH Dimensions (W x H x D): 70 mm x 90 mm x 54.5 mm Weight: approx. 270 g Housing Material: insulating plastic housing, Class II, ultra‑slim 4‑SU step‑shape Mounting: DIN rail TS35/7.5 or TS35/15 Vibration Resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z) Safety & EMC Certificates: UL 62368‑1, UL 508, TUV BS EN/EN 61558‑2‑16, BS EN/EN 61558‑1, IEC 62368‑1, EAC TP TC 004, BSMI CNS15598‑1, BIS IS13252, compliant with BS EN/EN 55032, BS EN/EN 55035, BS EN/EN 61000‑6‑2, BS EN/EN 61204‑3 LPS Classification: Pass LPS for “blank” models (up to 92 W, narrower adjustment range), Non‑LPS for “N” models (up to 100.8 W with wider adjustment range) LED Indicator: Power‑On status LED Manufacturer Warranty: 3 years About the MEAN WELL HDR-100-24 The MEAN WELL HDR-100-24 is an ultra‑slim 100 W class DIN‑rail power supply that provides a regulated 24 V DC output at up to 3.83 A in a compact 70 mm (4 SU) housing, ideal for space‑constrained 24 V control panels. With a universal input range, high efficiency up to 90 %, very low no‑load consumption and fanless free air convection, it delivers an energy‑efficient 24 V bus for building automation, household control systems and industrial control cabinets. LPS‑compliant “blank” models with a tighter adjustment window and higher‑power “N” versions with an extended adjustment range up to 29 V give designers flexibility between safety classification and additional voltage headroom. Together with the Class II plastic enclosure, comprehensive protection features and broad international approvals, HDR-100-24 is a robust, low‑maintenance 24 V power solution for PLCs, I/O modules, valves, relays and other 24 V control electronics.

Technical Information & Details about the MEAN WELL HDR-60-24 Power Supply Output Power: 60 W Output Voltage: 24 V DC Output Current: 2,5 A Current Range: 0 – 2,5 A Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational), 47 – 63 Hz Efficiency: up to 90 % Ripple & Noise: ≤ 150 mVp-p Output Voltage Adjustment Range: 21,6 – 29 V DC Voltage Tolerance: ±1,0 % Line Regulation: ±1,0 % Load Regulation: ±1,0 % Setup, Rise Time: 500 ms, 50 ms @230 V AC / 115 V AC (full load) Hold-up Time: 30 ms @230 V AC / 12 ms @115 V AC (full load) Inrush Current: 30 A @115 V AC / 60 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Operating Temperature: −30 °C to +70 °C (with derating according to curve) Cooling: fanless free air convection Protection Functions: short circuit (hiccup mode, auto recovery), overload (constant current limiting within 50–100 % of rated output voltage, auto recovery), overvoltage (shut down, re‑power to recover) Overvoltage Category: OVC III (up to 2000 m altitude) Isolation Voltage: 4000 V AC between input and output Isolation Resistance: ≥ 100 MΩ @ 500 V DC, 25 °C, 70 % RH Dimensions (W x H x D): 52,5 mm x 90 mm x 54,5 mm Weight: approx. 190 g Housing Material: insulating plastic housing, Class II, ultra slim step-shape Mounting: DIN rail TS35/7,5 or TS35/15 Safety & EMC Certifications: IEC 62368-1, UL 62368-1, UL 508, TUV BS EN/EN 61558-2-16, BS EN/EN 61558-1, EAC, BSMI, BIS IS13252, compliant with BS EN/EN 55032, BS EN/EN 55035, BS EN/EN 61000-6-2, BS EN/EN 61204-3 LED Indicator: Power On LED indicator Manufacturer Warranty: 3 years About the MEAN WELL HDR-60-24 The MEAN WELL HDR-60-24 is a 60 W ultra slim DIN-rail power supply that delivers a regulated 24 V DC / 2,5 A output in a compact 52.5 mm wide step-shape housing, ideal for space-constrained distribution boards and control cabinets. Its wide universal input range of 85–264 V AC or 120–370 V DC and high efficiency up to 90 % support energy-efficient operation in building automation, home control, and industrial control systems that rely on a stable 24 V bus. The adjustable 21,6–29 V output range allows precise tuning of the 24 V rail to compensate for voltage drops and to reliably power PLCs, sensors, relays, and I/O modules. The Class II plastic enclosure with reinforced insulation increases electrical safety and removes the need for a protective earth connection, simplifying installation and panel design. With fanless free air convection, very low no-load power consumption below 0.3 W, a wide operating temperature range from −30 °C to +70 °C, and comprehensive protection and certification features, the HDR-60-24 provides a robust, long-life 24 V power solution for demanding household and industrial automation applications.

Breve PSS 10 230V/24V Leistung: 10 VA Primärspannung: 230 VAC Sekundärspannung: 24 VAC Strom: 0,42 A Schutzklasse II und Schutzart IP40 Gewicht: 0,32 kg Doppelte Isolation Isolationsklasse B Schutz vor Überlast und Kurzschluss Schnelle Montage auf DIN-Hutschiene T35 Fertigung gemäß EN 61558-2-4, EN 61558-2-6 Weitere Information zu den Breve PSS Transformatoren Bei der PSS-Serie des Herstellers Breve handelt es sich um gekapselte Trenn- oder Sicherheitstransformatoren, welche für die Montage in Anlagen mit den DIN-Hutschienen T35 geeignet sind. Besonders die schnelle und einfache Montage, möglich durch das hochwertige, aufschnappbare Isolierstoffgehäuse, sprechen für die PSS Transformatoren von Breve. Aufgrund der doppelten Isolation ist eine weitere Erdung nicht notwendig. Weiterhin sind die Trasformatoren mit der Schutzklasse II ausgestattet und verfügen über die Schutzarten IP20 (N-Serie), IP30 und IP40 (PSS 10, PSS 20). Der Betrieb kann bei einer maximalen Umgebungstemperatur von 40°C aufgenommen werden. Zusätzlich sind die PSS Transformatoren standardmäßig gemäß den Sicherheitsnormen EN 61558-2-4 und EN 61558-2-6 gefertigt.

Technical Information & Details for the MEAN WELL NDR‑120‑12 Power Supply Output Power: 120 W Output Voltage: 12 V DC Output Current: 10 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 87 % Ripple & Noise: ≤ 120 mVp‑p Inrush Current: max. 20 A @115 VAC / 40 A @230 VAC No‑Load Power Consumption: < 0.75 W Operating Temperature: −20 °C to +70 °C Cooling: fanless, natural convection Protection Features: short‑circuit, overload, over‑voltage, over‑temperature Overvoltage Category: OVC II Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 125.2 mm × 40 mm × 113.5 mm Weight: approx. 670 g Safety & EMC Certificates: CE, UL 508, TÜV, CB, EAC LED Indicator: Power On Indicator Manufacturer Warranty: 3 years Information about the MEAN WELL NDR‑120‑12 The MEAN WELL NDR‑120‑12 is a high‑performance DIN‑rail industrial power supply delivering 120 W of rated power with a stable 12 V DC / 10 A output. It offers a high efficiency of up to 87 %, a compact 40 mm wide metal housing, and fanless natural convection cooling for quiet and reliable operation. Comprehensive protection circuits (short‑circuit, overload, over‑voltage, over‑temperature) and automatic recovery ensure maximum safety. With its wide input range of 90–264 V AC, this power supply is ideal for PLC systems, sensor networks, building automation, and industrial control applications where long‑term reliability and space efficiency are crucial. Certified by CE, UL, and TÜV, the NDR‑120‑12 delivers durable, energy‑efficient, and trusted power performance for modern industrial environments.
