• Output Power: up to 20 W
• Output Voltage: 2 – 54 V DC (depending on mA setting)
• Output Current: 250, 350, 400, 450, 500, 550, 600, 700 mA (constant)
• Input Voltage Range: 198 – 264 V AC / 170 – 280 V DC, 50 – 60 Hz
• Efficiency: > 88 %
• Output Current Ripple: ≤ 3 %
• Inrush Current: 5 A (50 µsec)
• Power Factor: 0.97
• Operating Temperature: −25 °C to +50 °C
• Cooling: Natural convection
• Protections: Overheating, Short circuits, Mains voltage spikes, Overloads
• Protection Class: IP20; Class II protection against electric shock
• Insulation Voltage: 2kV DIFF / 4kV COMM
• Dimensions (L x W x H): 111 mm x 52 mm x 22 mm
• Weight: approx. 108 g
• Safety & EMC Certificates: EN 55015, EN 61347-1, EN 61547, EN 62384, SELV
• Special Features: DIP-SWITCH for current selection; Active PFC
• Manufacturer Warranty: up to 10 years

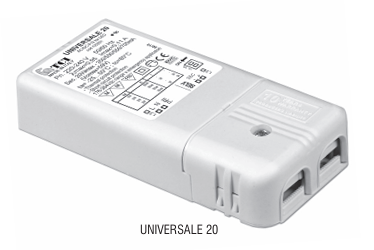

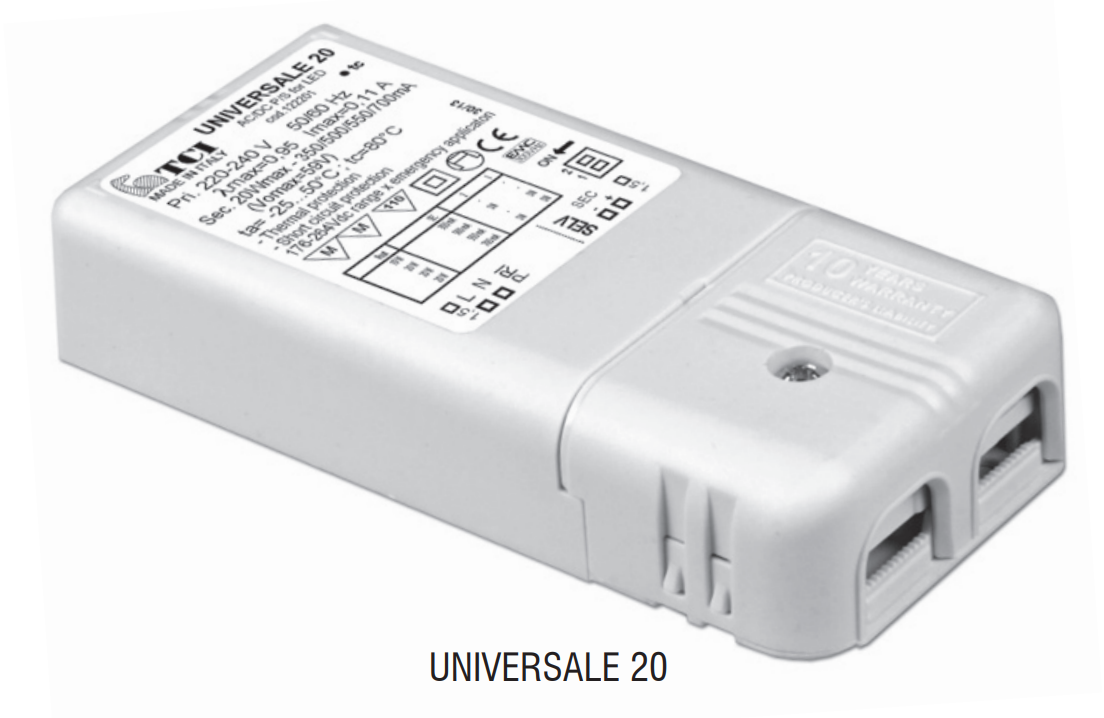

Information about TCI UNIVERSALE 20

The TCI UNIVERSALE 20 stands out as a highly versatile non-dimmable multipower driver engineered for indoor professional lighting solutions. Its defining characteristic is the user-accessible DIP-switch system, which allows for the manual selection of output currents ranging from 250 mA to 700 mA. This flexibility makes it a universal solution for various LED modules, significantly reducing inventory complexity for contractors and manufacturers. Designed as an independent IP20 driver, it features a slim, compact profile equipped with a terminal cover and cable retainer, ensuring a safe and streamlined installation process for both direct and indirect contact environments.

Technical performance is a core strength of this unit, featuring an Active Power Factor Corrector and an impressive energy efficiency rating exceeding 88%. It is meticulously designed to provide Ripple-Free lighting, achieving a flickering index of Pst LM ≤1 and SVM≤0.4, which is essential for visual comfort and high-quality workspaces. Beyond standard lighting, its unique double output impedance makes it suitable for integration into household electrical appliances like cooker hoods. Supported by a robust warranty of up to 10 years and built with high-grade Italian engineering, this driver ensures long-term reliability and protection against overloads and mains voltage spikes in demanding industrial or residential settings.
