• Output Power: 1 W – 20 W
• Output Voltage: 2 V – 54 V DC (Constant Current) / 24 V DC (Constant Voltage)
• Output Current: 100, 140, 180, 220, 260, 300, 340, 380 mA (Selectable via DIP-SWITCH)
• Input Voltage Range: 110 – 240 V AC / 170 – 280 V DC, 50 – 60 Hz
• Efficiency: > 87 %
• Ripple & Noise: ≤ 3 % (Output Current Ripple)
• Inrush Current: 5 A / 50 µsec
• No-load Power: Low standby consumption
• Operating Temperature: -25 °C to +50 °C
• Cooling: Fanless natural convection
• Safety Protections: Overheating, short circuits, mains voltage spikes, and overloads
• Insulation Class: Class II protection against electric shock
• Isolation Voltage: Active PFC with 2kV Differential / 4kV Common Mode surge protection
• Dimensions (L x W x H): 111 mm x 52 mm x 22 mm
• Weight: 100 g
• Safety & EMC Certificates: CE, EN 55015, EN 61347-1, EN 61347-2-13, EN 61547, EAC
• DIP-SWITCH Selection: Multipower driver for precise current configuration
• Manufacturer Warranty: Up to 10 years (based on failure rate)

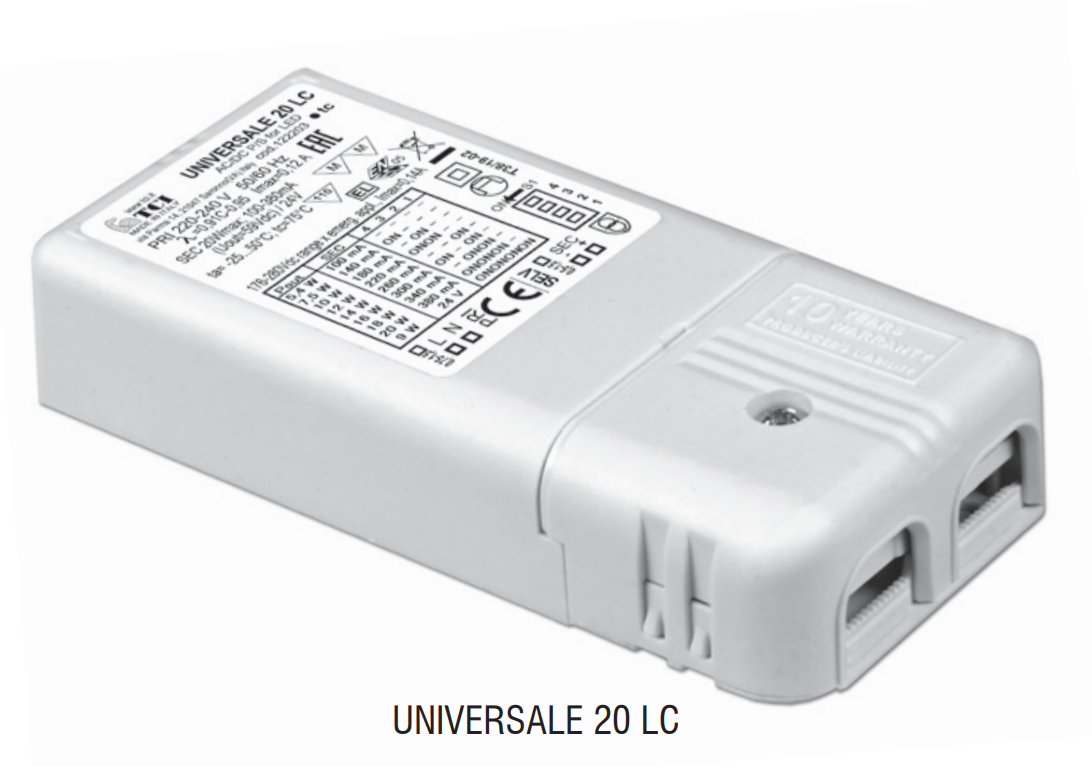

Information about the TCI UNIVERSALE 20 LC

The TCI UNIVERSALE 20 LC (Code 122203) is a highly versatile, professional-grade multipower LED driver designed for indoor lighting applications requiring high reliability and flexibility. Its primary strength lies in the integrated DIP-SWITCH technology, which allows users to select from eight different constant current levels ranging from 100mA to 380mA, or a dedicated 24V constant voltage mode. This adaptability makes it an all-in-one solution for various LED modules, significantly reducing inventory complexity for installers. Furthermore, the driver features an Active Power Factor Corrector (PFC) and high efficiency of over 87%, ensuring optimal energy performance and compliance with strict modern lighting standards.

Safety and longevity are core characteristics of this Italian-made driver, which is built into a compact IP20 independent housing with a height of only 22mm, perfect for tight ceiling voids or slim luminaire designs. It provides robust protection against common electrical issues such as overheating, short circuits, and mains voltage spikes, maintaining a stable current regulation of ±5% even during temperature fluctuations. A unique feature is its double output impedance, which qualifies it for use in household electrical appliances like cooker hoods. With a 10-year warranty option and low output ripple below 3%, the UNIVERSALE 20 LC guarantees flicker-free performance and long-term durability for high-end residential and commercial lighting projects.
