APV-12-24

Product information "APV-12-24"

Technische Eigenschaften des MEAN WELL APV-12-24

  • Nennleistung: 12 W
  • Eingangsbereich: 90 bis 264VAC
  • Ausgangsspannung: 24 VDC
  • Class II Netzteil
  • Schutzart IP42
  • Kühlung durch freie Luftkonvektion
  • Schutz vor Kurzschluss, Überspannung und Überlast

Informationen zum MEAN WELL APV-12-24

Beim Mean Well APV-12-24 handelt es sich um ein zuverlässiges LED-Netzgerät mit einer kompakten Bauform. Eingangsseitig kann es mit einem weiten AC-Spannungsbereich zwischen 90 und 264 V (Derating bei 90 – 100 VAC) gespeist werden. Zudem liefert das Schaltnetzteil von MeanWell eine geregelte 12 W Leistung bei einem 2 A Strom sowie bei einer vielfältig einsetzbaren Ausgangsspannung von 24 VDC.

Als zertifizierte Class II Netzteile mit der Schutzart IP42 im Kunststoffgehäuse können die APV-12-Modelle von Mean Well in verschiedensten Innenbereichen installiert werden. Daher sind die LED-Netzteile für umfassende LED-Anwendungen wie z. B. dekorative LED-Beleuchtungen sowie LED-Anzeigenschilder besonders gut geeignet. Mit dem lüfterlosen Design lässt sich die Produktreihe von MeanWell durch freie Luftkonvektion kühlen. Dies sorgt nicht nur für einen geräuscharmen Betrieb bei Temperaturen von -30 bis +70°C, sondern gewährleistet auch eine gute Arbeitseffizienz mit einem Wirkungsgrad von bis zu 85%.

Nicht zuletzt bietet die APV-12-Serie von Mean Well einen Schutz gegen Kurzschluss, Überlast sowie Überspannung. Die LED-Schaltnetzteile erfüllen dabei alle regulatorischen Sicherheits- und Störfestigkeitsstandards gemäß UL8750, EN61000-3-2, EN55035 sowie weitere Anforderungen. Ausgezeichnet durch die hohe Zuverlässigkeit sowie die herausragende Kosteneffizienz ist die MeanWell APV-12-Serie die optimale Lösung für LED-Beleuchtungen mit Niederspannungen.


Verfügbare Downloads
Download APV-12 Datenblatt
Eigenschaften für "APV-12-24"
Approval: CB, CCC, CE, SELV, UL
Efficiency: 84%
Height: 29
Length: 77
Protection Class: Class 2, Class II
Protection Rating: IP42
Rated current: 0,5
Series: APV
Voltage: 24 VDC
Warranty: 2 years
Wattage: 12 W
Weight: 0,08kg
Width: 40

Cutsomers also bought

APV-35-24
Technical Information & Details for the MEAN WELL APV-35-24 Power Supply Not approved for use as an LED driver within the EU! An approved alternative is, e.g., the LPF-25 series Output Power: 36 W Output Voltage: 24 V DC Output Current: 0 – 1.5 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 84% Ripple & Noise: max. 150 mVp-p Inrush Current: Cold start 45 A (twidth = 440 µs measured at 50% Ipeak) at 230 V AC Protection Features: Short circuit, overload (110 – 160%), overvoltage (27 – 32.4 V) Protection Rating & Class: IP42, Class 2 power unit, LPS compliant Operating Temperature: −30 °C to +70 °C Isolation Voltage: 3 kV AC (input to output) Vibration Resistance: 10 – 500 Hz, 2G 10 min./1 cycle for 60 min. each along X, Y, Z axes Dimensions (L x W x H): 84 mm x 57 mm x 29.5 mm Weight: approx. 0.18 kg Safety & EMC Standards: UL8750, CSA-C22.2 No. 250.0-13, BIS IS15885, EAC TP TC 004, BS EN/EN 62368-1, CE Manufacturer Warranty: 2 years Information about the MEAN WELL APV-35-24 Cost-sensitive general electronics and illuminated display assemblies operating in semi-exposed environments require a dependable constant-voltage source housed within a protective enclosure. Providing a stable 24-volt output with a 36-watt capacity, the MEAN WELL APV-35-24 is built inside a fully isolated plastic chassis to handle routine installation challenges. Its universal AC input range accepts voltages from 90 to 264 V AC while successfully absorbing temporary 300 V AC surge peaks for up to five seconds. Physical integration is highly efficient thanks to ultra-compact dimensions measuring 84 by 57 by 29.5 millimeters. Environmental sealing meets IP42 standards alongside Class 2 power unit and Limited Power Source (LPS) approvals, permitting safe secondary-circuit deployment without requiring a physical ground wire. Thermal dispersion relies completely on natural free-air convection, eliminating fans to guarantee silent operation and higher long-term reliability. Operational safety features automatic hiccup-mode recovery for overloads between 110 and 160 percent, alongside comprehensive protection against short circuits and output overvoltage. Electrical isolation between input and output wiring is thoroughly tested at 3 kV AC, satisfying strict international safety mandates. Furthermore, the internal layout is reinforced to withstand significant mechanical vibrations up to 2G across three distinct axes during mobile or heavy-machinery operation. Supported by global compliance certifications including UL and CE marks, this power supply unit delivers reliable performance backed by a 2-year manufacturer warranty. Pre-stripped wire leads and lightweight construction simplify physical placement in tight control boxes or decorative enclosures. For installation only in devices whose primary use is other than lighting, e.g.,copiers, overhead and slide projectors, or for scale and display lighting.

from €8.90*
LPV-60-24
Technical Information & Details of the MEAN WELL LPV-60-24 Power Supply Not approved as an LED driver within the EU! An approved alternative is, for example, the LPF-60 series. Output Power: 60 W Output Voltage: 24 V DC Output Current: 2.5 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 86 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @230 VAC No-load Power Consumption: < 0.5 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protection Features: Short-circuit, Overload, Overvoltage Overvoltage Category: OVC III Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 32 mm x 42.5 mm x 162.5 mm Weight: approx. 420 g Safety & EMC Certificates: CE, UL1310, TUV, CB, EAC, IP67 LED Indicator: - Manufacturer Warranty: 2 years Information about the MEAN WELL LPV-60-24 The MEAN WELL LPV-60-24 is a powerful LED power supply with 60 W and stable 24 V DC / 2.5 A output voltage. It excels with excellent efficiency up to 86 %, fanless convection cooling for silent operation, and a fully waterproof IP67 housing. The comprehensive protection features (short-circuit, overload, and overvoltage protection) with automatic recovery ensure maximum operational safety. Perfect for LED strips, modules, outdoor lighting, and humid environments – the universal input voltage range 90–264 V AC enables worldwide deployment. With international certifications, the LPV-60-24 offers maximum flexibility, durability, and weatherproof protection in demanding environments.

from €11.40*
LPV-100-24
Technical Information & Details about the MEAN WELL LPV-100-24 Power Supply Rated output power: 100.8 W DC output voltage: 24 V DC Rated output current: 4.2 A Current range: 0 – 4.2 A Input voltage range: 90 – 264 V AC (127 – 370 V DC), 47 – 63 Hz Efficiency (typical): about 88 % Ripple & noise (max.): ≤ 150 mVp-p Output voltage range (O.V.P. region): 27.6 – 32.4 V DC Voltage tolerance: ±5.0 % Line regulation: ±2.0 % Load regulation: ±5.0 % Setup, rise time: 2000 ms, 25 ms at 230 V AC / 115 V AC (first cold start) Hold-up time (typ.): 50 ms at 230 V AC / 14 ms at 115 V AC (full load) AC input current (typ.): 2.2 A at 115 V AC / 1.2 A at 230 V AC Inrush current (typ.): 75 A at 230 V AC (cold start, twidth ≈ 700 μs) Leakage current: < 0.25 mA at 240 V AC Overload protection: 110 – 150 % of rated output power, hiccup mode, auto recovery after fault removal Overvoltage protection: shut down output voltage at 27.6 – 32.4 V, re‑power on to recover Operating temperature: −25 °C to +70 °C (derating required, see curve) Operating humidity: 20 – 90 % RH, non‑condensing Storage conditions: −40 °C to +80 °C, 10 – 95 % RH Cooling method: free air convection (fanless) Withstand voltage: 3000 V AC between input and output Isolation resistance: > 100 MΩ at 500 V DC, 25 °C, 70 % RH Ingress protection rating: IP67, fully encapsulated plastic case Dimensions (L x W x H): 190 mm x 52 mm x 37 mm Weight: approx. 610 g Vibration resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z) EMC emission: BS EN/EN 55032 Class B, BS EN/EN 61000‑3‑2 Class A (≤80 % load), BS EN/EN 61000‑3‑3 EMC immunity: BS EN/EN 61000‑4‑2,‑3,‑4,‑5,‑6,‑8,‑11; BS EN/EN 55035 Safety approvals: UL 8750, CSA C22.2 No. 250.13‑12, UL 879, CSA C22.2 No. 207‑M89, BIS IS 15885, IEC/BS EN/EN 62368‑1, EAC Case design: fully isolated, encapsulated plastic case for damp and dusty environments MTBF (typical): 4,497,100 h (Telcordia SR‑332, 25 °C) Manufacturer warranty: 2 years About the MEAN WELL LPV-100-24 The MEAN WELL LPV-100-24 is a 100 W class constant‑voltage switching power supply that provides a regulated 24 V DC output at up to 4.2 A, fully encapsulated in an IP67 plastic housing for reliable use in harsh environments. Its universal AC input range, high efficiency, short‑circuit, overload and overvoltage protection, and fanless free air convection make it suitable for indoor and sheltered outdoor applications. With compact dimensions, strong isolation and broad safety and EMC approvals, LPV-100-24 is a robust 24 V source for LED strips, signage, control systems and other low‑voltage equipment that require a rugged, dust‑ and splash‑proof power supply.

from €18.70*

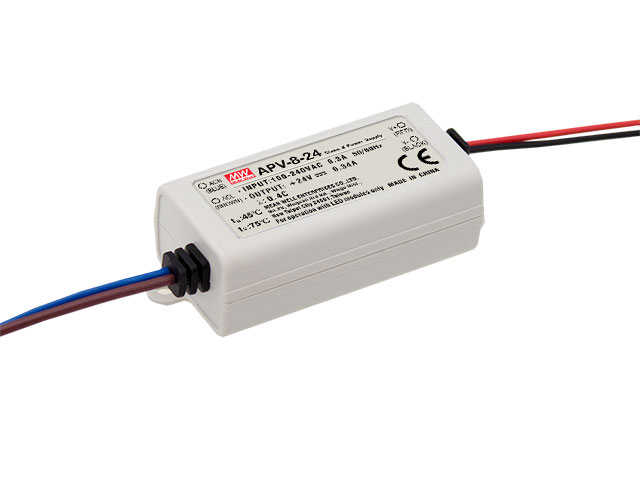

APV-8-24
Technical Information & Details for the MEAN WELL APV-8-24 Power Supply Output Power: 8.04 W Output Voltage: 24 V DC Output Current: 0.34 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC Efficiency: 81 % Ripple & Noise: 250 mVp-p Inrush Current: Cold start 70 A at 230 V AC No Load Power Consumption: < 0.5 W Operating Temperature: −30 °C to +70 °C Cooling: Free air convection Protections: Short circuit, overload, over voltage Protection Rating: IP42 Withstand Voltage: 3.75 kV AC I/P-O/P Dimensions (L x W x H): 60 mm x 30 mm x 23.5 mm Weight: Approx. 0.05 kg Safety & EMC Standards: UL8750, BS EN/EN 62368-1, EAC Manufacturer Warranty: 2 years Information about the MEAN WELL APV-8-24 Designed to deliver steady electronic performance in limited spaces, this component incorporates an IP42 ingress protection structure. It operates reliably under challenging thermal conditions stretching up to +70 °C without issue. Supported by a dependable 2 years manufacturer warranty, the unit provides long-lasting operational stability for various setups. Its wide-range input options further optimize integration flexibility.

from €3.90*
HDR-15-24
Technical Information & Details of the MEAN WELL HDR-15-24 Power Supply Output Power: 15.2 W Output Voltage: 24 V DC Output Current: 0.63 A Output Current Range: 0 – 0.63 A Output Voltage Adjustment Range: 21.6 – 29 V DC Ripple & Noise: ≤ 150 mVp-p Voltage Tolerance: ±1.0 % Line Regulation: ±1.0 % Load Regulation: ±1.0 % Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational) Input Frequency: 47 – 63 Hz Efficiency (typ.): 86 % AC Input Current (typ.): 0.5 A @115 V AC / 0.25 A @230 V AC Inrush Current (typ.): 25 A @115 V AC / 45 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Overload Protection: 110 – 145 % of rated power, constant current limiting within 50 – 100 % of rated output voltage, hiccup mode when Vout < 50 %, auto recovery Overvoltage Protection: 30 – 36 V DC, shut off output, clamping by zener diode Operating Temperature: −30 °C to +70 °C (derating according to curve) Operating Humidity: 20 – 90 % RH, non-condensing Storage Temperature / Humidity: −40 °C to +85 °C, 10 – 95 % RH, non-condensing Temperature Coefficient: ±0.03 % / °C (0 – 50 °C) Vibration Resistance: 10 – 500 Hz, 2 G, 10 min./cycle, 60 min. per axis (X, Y, Z) Operating Altitude: up to 2,000 m (derating above 2,000 m) Isolation Voltage: 4 kVAC (input–output) Isolation Resistance: > 100 MΩ @500 VDC, 25 °C, 70 % RH Dimensions (W x H x D): 17.5 mm x 90 mm x 54.5 mm Weight: approx. 74 g Mounting: DIN rail TS35/7.5 or TS35/15, ultra-slim 1-SU step-shape housing Housing / Isolation Class: plastic housing, isolation Class II, LPS (Limited Power Source) Front Indicators / Controls: LED indicator for power on, adjustable DC output voltage Safety Approvals: UL62368‑1, UL508, TUV BS EN/EN61558‑2‑16, BS EN/EN61558‑1, IEC62368‑1, EAC TP TC 004, BSMI CNS15598‑1, BIS IS13252 (Part1) (except 48 V) EMC Emission: EN55032 (CISPR32), CNS15936 Class B; EN61000‑3‑2, EN61000‑3‑3 EMC Immunity: EN55035, EN61000‑6‑2, EN61204‑3; EN61000‑4‑2/3/4/5/6/8/11 MTBF (typ.): 3,724,300 h (Tel

from €9.60*

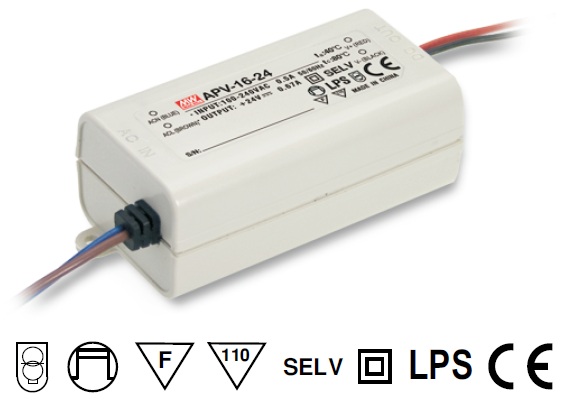

APV-16-24
