Quantity | Unit price |
---|---|
From 1 | €23.98 * |
From 5 | €22.84 * |
From 10 | €21.90 * |
From 20 | €21.18 * |
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 13940
Technische Eigenschaften des MEAN WELL PLN-30-48
Leistung: 30,24W
Universeller... more

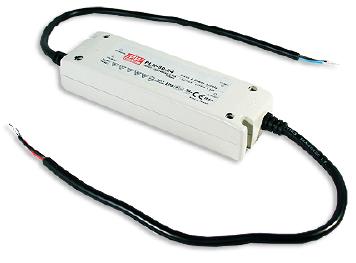

Product information "PLN-30-48"
Technische Eigenschaften des MEAN WELL PLN-30-48
- Leistung: 30,24W
- Universeller AC Eingang/ Breiter Eingangsbereich von 90 bis 264VAC
- Schutz vor Kurzschluss/ Überstrom/ Überspannung/ Überhitzung
- Kühlung durch freie Luftkonvektion
- Eingebaute Konstantstrombegrenzungsschaltung mit einstellbarem OCP Level
- Vollständig isoliertes Plastikgehäuse
- Integrierte, aktive PFC-Funktion
- IP64 Design für Indoor und Outdoor Installationen
- Schmale und kompakte Größe
- Class II Schaltnetzteil/ kein FG
- 100% Volllast burn-in Test
- Hohe Zuverlässigkeit, niedrige Kosten: bestes Preis-Leistungsverhältnis
- Geeignet für feuchte/ nasse Umgebung
- Geeignet für LED Beleuchtungen und LED Displays
- 2 Jahre Garantie
Related links to "PLN-30-48"
Available downloads:
Hier können Sie alle Eigenschaften sehen more
Eigenschaften für "PLN-30-48"
Voltage: | 48 VDC |
Power: | 30 Watt |
Protection type: | IP64 |
Protection class: | Class II, Class 2 |
Efficiency: | 85,5 % |
Rated current: | 0,63 A |
Warranty: | Two years |
Safety approvals: | CE, CB, CCC, MM, SELV, TÜV, UL |
Height: | 30 mm |
Width: | 47 mm |
Length: | 145 mm |
Weight: | 0,22kg, 0, |
