• Output Power: 40 W
• Output Voltage: 12 V DC
• Output Current: 0 – 3.34 A
• Input Voltage Range: 198 – 264 V AC, 47 – 63 Hz
• Efficiency: up to 86 %
• Displacement Factor: ≥ 0.9
• Inrush Current: 26.9 A (Twidth: 205.2 μs)
• No Load Power: < 0.5 W
• Operating Temperature: -20 °C to +70 °C
• Cooling: Free air convection
• Protection Functions: Over Load, Short Circuit, Over Temperature (Auto Resume)
• IP Rating: IP67 (Waterproof)
• Isolation Voltage: 3750 V AC (Input to Output)
• Dimensions (L x W x H): 148 mm x 42 mm x 30 mm
• Wiring: Pre-wired (0.36m H05RN-F)
• Safety & EMC Certificates: CE, CB, SELV, EN 61347-1, EN 61347-2-13
• Special Feature: Built-in active PFC function & Flicker-free
• Manufacturer Warranty: 3 Years

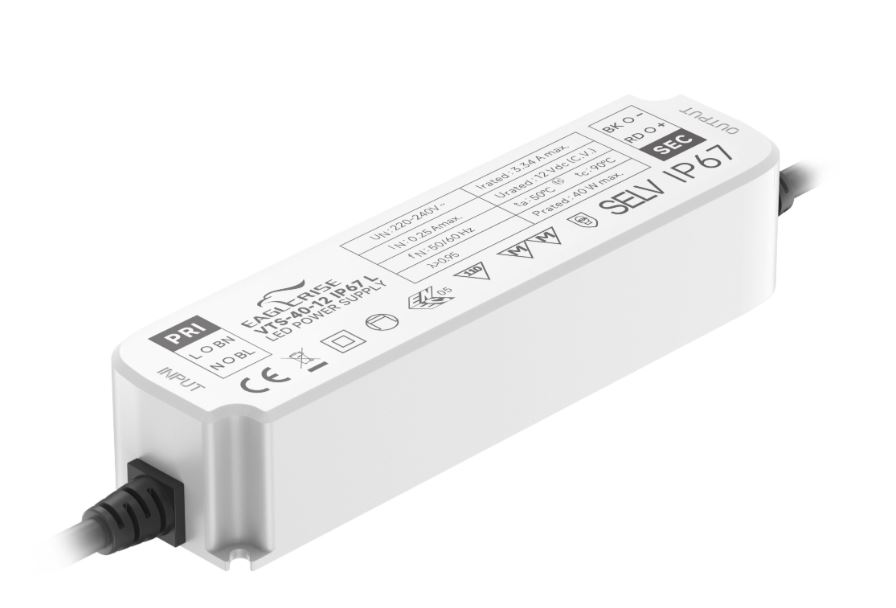

Information about the EAGLERISE VTS-40-12 IP67 L

The EAGLERISE VTS-40-12 IP67 L is a high-performance, 40W constant voltage LED driver specifically engineered for demanding environments where moisture and dust protection are paramount. Its robust IP67-rated waterproof plastic case ensures reliable operation in dry, damp, and wet locations, making it an ideal choice for outdoor LED strips and architectural lighting. This driver distinguishes itself with a built-in active PFC function that achieves a power factor of 0.95, significantly reducing electrical interference and improving energy utilization. The advanced thermal design allows for cool operation via natural air convection, which directly contributes to its impressive service life of over 50,000 hours at specific operating temperatures. Safety is integrated at every level, featuring 2kV line-to-line surge protection alongside automated recovery for short circuits and overloads, providing a flicker-free, stable power source for sensitive professional lighting applications.
