SE20-12VFP

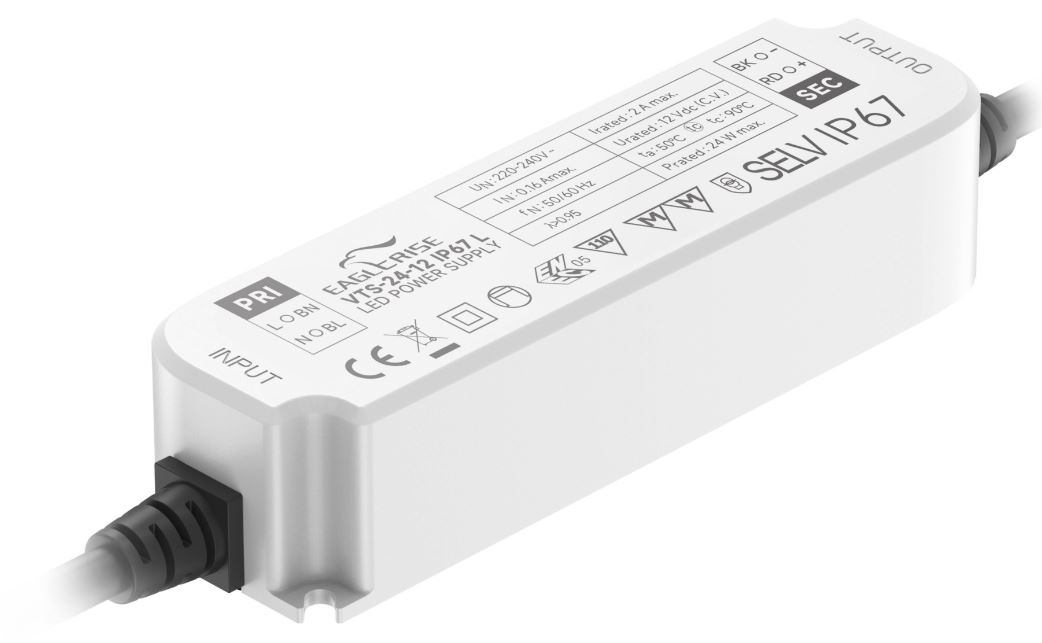

Technical Information & Details for the EAGLERISE VTS-24-12 IP67 L Power Supply Output Power: 24 W Output Voltage: 12 V DC Output Current: 0 – 2 A Input Voltage Range: 198 – 264 V AC, 47 – 63 Hz Efficiency: 86% Ripple & Noise: ±5% (LF/HF current ripple) Inrush Current: 20.8 A (Twidth 119.8 μs) No-load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +75 °C Cooling: Fanless free air convection Protection Functions: Short Circuit (SCP), Over Load (OLP), Over Temperature (OTP), Over Voltage Protection Rating: IP67 (Waterproof) Power Factor (PF): 0.95 Dimensions (L x W x H): 118 mm x 35 mm x 26 mm Enclosure Material: Compact Plastic Case Safety & EMC Certificates: CE, CB, SELV, EN 61347-1, EN 61347-2-13 Special Feature: Flicker-free performance Manufacturer Warranty: 3 Years Information about the EAGLERISE VTS-24-12 IP67 L The EAGLERISE VTS-24-12 IP67 L stands as a premium constant-voltage solution specifically engineered for high-performance LED applications such as LED strips and signage. Its most striking characteristic is the **fully encapsulated IP67 waterproof design**, making it suitable for UL-rated dry, damp, and even wet locations where environmental protection is paramount. This driver incorporates a **built-in active PFC function** and maintains a high efficiency of up to 86%, ensuring the unit runs cooler while significantly enhancing long-term reliability and product life. Users benefit from a **sophisticated flicker-free output**, which is essential for maintaining visual comfort and high-quality lighting environments. Beyond its compact form factor, the device is armed with **comprehensive all-around protection**, including a 2kV input surge defense and automatic recovery protocols for short circuits and thermal overloads. Designed for a lifetime exceeding 50,000 hours, it offers a perfect balance of efficiency, durability, and safety for both residential and industrial lighting projects.

In: 180-264VAC 47-63HzOut: 12VDC max. 15W / 1,25A / Eff. 83% / SELV,110,  Schutzklasse 2 113x37x18mm
