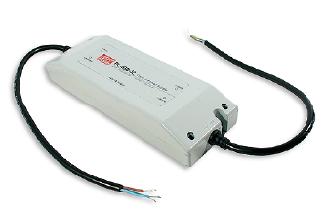

PLN-100-20
| Quantity | Unit price |
|---|---|
| From 1 | €40.30 * |
| From 5 | €38.40 * |
| From 10 | €36.70 * |
| From 20 | €35.60 * |
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 14344
Technische Eigenschaften des MEAN WELL PLN-100-20
Leistung: 96W
Universeller... more
Product information "PLN-100-20"
Technische Eigenschaften des MEAN WELL PLN-100-20
- Leistung: 96W
- Universeller AC Eingang/ Breiter Eingangsbereich von 90 bis 264VAC
- Schutz vor Kurzschluss/ Überstrom/ Überspannung/ Überhitzung
- Kühlung durch freie Luftkonvektion
- Eingebaute Konstantstrombegrenzungsschaltung mit einstellbarem OCP Level
- Vollständig isoliertes Plastikgehäuse
- Integrierte, aktive PFC-Funktion
- IP64 Design für Indoor und Outdoor Installationen
- Schmale und kompakte Größe
- Class II Schaltnetzteil/ kein FG
- 100% Volllast burn-in Test
- Hohe Zuverlässigkeit, niedrige Kosten: bestes Preis-Leistungsverhältnis
- Geeignet für feuchte/ nasse Umgebung
- Geeignet für LED Beleuchtungen und LED Displays
- 2 Jahre Garantie
Related links to "PLN-100-20"
Available downloads:
Hier können Sie alle Eigenschaften sehen more
Eigenschaften für "PLN-100-20"
| Voltage: | 20 VDC |
| Power: | 100 Watt |
| Protection type: | IP64 |
| Protection class: | Class 2 |
| Efficiency: | 88,5 % |
| Rated current: | 4,8 A |
| Warranty: | Two years |
| Safety approvals: | CE, CB, CCC, MM, SELV, TÜV, UL |
| Height: | 35 mm |
| Width: | 70,5 mm |
| Length: | 200 mm |
| Weight: | 0,52kg, 0, |
