• Output Power: 62.1 W
• Output Voltage: 54 V DC
• Output Current: 1.15 A
• Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz
• Efficiency: up to 90.5 %
• Ripple & Noise: ≤ 300 mVp-p
• Inrush Current: max. 55 A @230 VAC
• No-Load Power Consumption: < 0.75 W
• Operating Temperature: −40 °C to +80 °C
• Cooling: fanless free air convection
• Protections: Short circuit, Over current, Over voltage, Over temperature (auto recovery)
• Surge Immunity: 4 kV (IEC61000-4-5)
• Isolation Voltage: 3.75 kV AC input to output
• Dimensions (L x W x H): 171 mm x 61.5 mm x 36.8 mm
• Weight: ca. 730 g
• Safety & EMC Certifications: UL8750, TUV EN61347-1/-2-13, CB, CE, EAC, KC
• Dimming: 3-in-1 (1-10 V, 10 V PWM, Resistance)
• IP Rating: IP67
• Manufacturer Warranty: 7 years

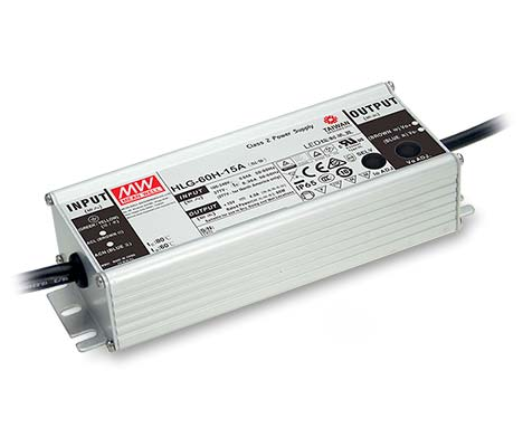

Information on MEAN WELL HLG-60H-54B

The MEAN WELL HLG-60H-54B is a rugged IP67 waterproof 62 W LED power supply with dual CV+CC mode for demanding indoor and outdoor applications. It excels with high reliability across extreme temperatures from -40 °C to +80 °C, fanless cooling, and a lifespan over 62,000 hours under full load. Built-in active PFC (Power Factor >0.95) ensures efficient energy use, while the wide input voltage range up to 305 V AC provides global flexibility.

Key Strengths: 3-in-1 dimming function (1-10V, PWM, Resistive) for precise light control from 10-100%, Hazardous Location (Type HL) certified for hazardous environments, and 4 kV surge protection for maximum durability. Perfect for LED streetlights, high-bay lighting, greenhouse LEDs, parking lights, and fishing lamps – featuring a full metal housing (Class I) and automatic protection recovery.
