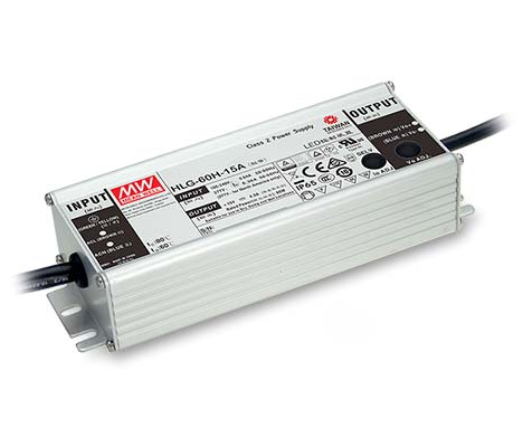

Technical Information & Details on MEAN WELL HLG-60H-15B Power Supply
- Output Power: 60 W
- Output Voltage: 15 V DC
- Output Current: 4 A
- Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz
- Efficiency: up to 87.5 %
- Ripple & Noise: ≤ 150 mVp-p
- Inrush Current: typ. 55 A / 26 µs @ 230 VAC
- No-Load Power Consumption: < 0.75 W
- Operating Temperature: −40 °C to +80 °C (case temperature)
- Cooling: fanless natural convection
- Protection Functions: Short circuit (Hiccup, auto recovery), Overload, Overvoltage, Overtemperature
- Overvoltage Category: II
- Isolation Voltage: 3.75 kV AC between input and output
- Dimensions (H x W x D): 171 mm x 61.5 mm x 36.8 mm
- Weight: ca. 730 g
- Safety & EMC Certifications: UL8750, CB, CE, TÜV, EAC, IP67
- Manufacturer Warranty: 7 Years
Information on MEAN WELL HLG-60H-15B
The MEAN WELL HLG-60H-15B is a dimmable, waterproof 60 W LED driver power supply featuring high efficiency up to 87.5 % and wide operating temperature range from -40 °C to +80 °C for demanding applications. It delivers stable 15 V DC / 4 A output in constant voltage and constant current modes with innovative 3-in-1 dimming function (1-10 V DC, 10 V PWM, resistance) for precise light control. Full IP67 protection, rugged metal housing, and comprehensive protections with auto-recovery make it perfect for professional outdoor LED lighting in industrial, street, and architectural settings with maximum flexibility.
