• Rated Power: 121.5 W
• Output Voltage: 54 V DC
• Rated Current: 2.25 A
• Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz
• Efficiency: up to 89 %
• Current Ripple: 5.0% max.
• Inrush Current: cold start 60 A at 230 VAC
• Standby Power Consumption: < 0.5 W
• Working Temperature: case temperature Tcase -40 °C to +90 °C
• Cooling: fanless natural convection
• Protection Functions: Short circuit, Overload, Over voltage, Over temperature
• Ingress Protection: IP67
• Withstand Voltage: I/O-O/P: 3.75 kV AC
• Dimensions (L x W x H): 191 mm x 63 mm x 37.5 mm
• Weight: approx. 0.97 kg
• Safety & EMC Certificates: UL8750, ENEC, CE, EAC
• Special Feature: Built-in 3-in-1 dimming function
• Manufacturer Warranty: 5 years

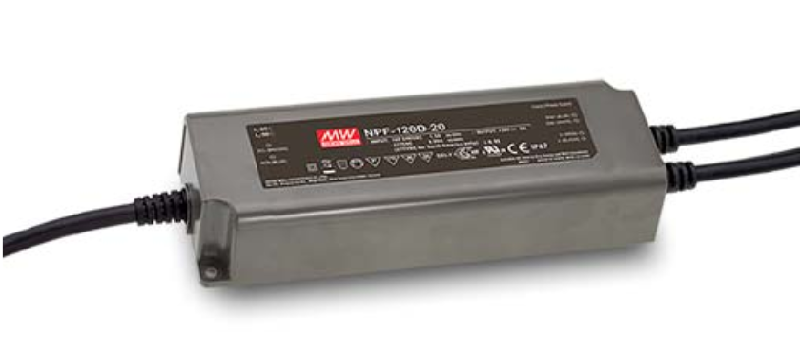

Information about the MEAN WELL NPF-120D-54

Architectural lighting professionals and industrial system integrators demand exceptional reliability, which the MEAN WELL NPF-120D-54 power supply delivers through precision constant current output. Encased in a fully potted housing featuring an advanced IP67 ingress protection rating, the unit expertly shields internal electronics from heavy moisture, dust, and outdoor environmental challenges. Five remarkable engineering highlights set this model apart: First, its exceptional case operating range of Tcase -40 °C to +90 °C ensures stable performance under extreme thermal fluctuations. Second, the versatile built-in 3-in-1 dimming interface provides smooth brightness control via 0-10V DC, PWM signals, or resistance adjustments.

Third, the advanced fanless cooling architecture relies completely on natural convection to achieve total acoustic silence while eliminating mechanical failure points. Fourth, an impressive efficiency rating of up to 89 % minimizes power loss across extended operational cycles. Fifth, strict global safety compliance is officially validated through prestigious UL8750 certifications and ENEC standards, providing absolute peace of mind for commercial deployments.

Comprehensive internal safeguards protect against short circuits, overloads, overvoltages, and thermal anomalies, incorporating reliable automatic recovery mechanisms to minimize downtime. Furthermore, the universal AC input range facilitates seamless integration into diverse electrical grids worldwide without requiring additional grid adapters.

Backed by a comprehensive 5 years manufacturer warranty, this robust power supply represents a secure, high-value investment for professional installations. Combining superior durability, advanced technical capabilities, and elite engineering, it stands ready to fulfill the most stringent project requirements with absolute dependability.
