• Output Power: 50 W
• Output Current (Default): 1 A
• Constant Current Region: 22 – 54 V DC
• Current Adjustment Range: 0.53 – 2.1 A
• Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz
• Efficiency: up to 90 %
• Current Ripple: max. 5.0% @ rated current
• Inrush Current: 50 A (twidth=350us) at 230 VAC
• No Load Power Consumption: < 0.5 W
• Operating Temperature: -40 °C to +90 °C (Tcase)
• Cooling: Free air convection
• Protection Functions: Over power, Short circuit, Over temperature, Input over voltage
• Ingress Protection: IP67 rating
• Isolation Voltage: 3750 V AC between Input and Output
• Dimensions (L x W x H): 105 mm x 63 mm x 30 mm
• Weight: ca. 410 g
• Safety & EMC Certificates: UL, ENEC, TUV, CB, EAC, CE, CCC
• Manufacturer Warranty: 5 Years

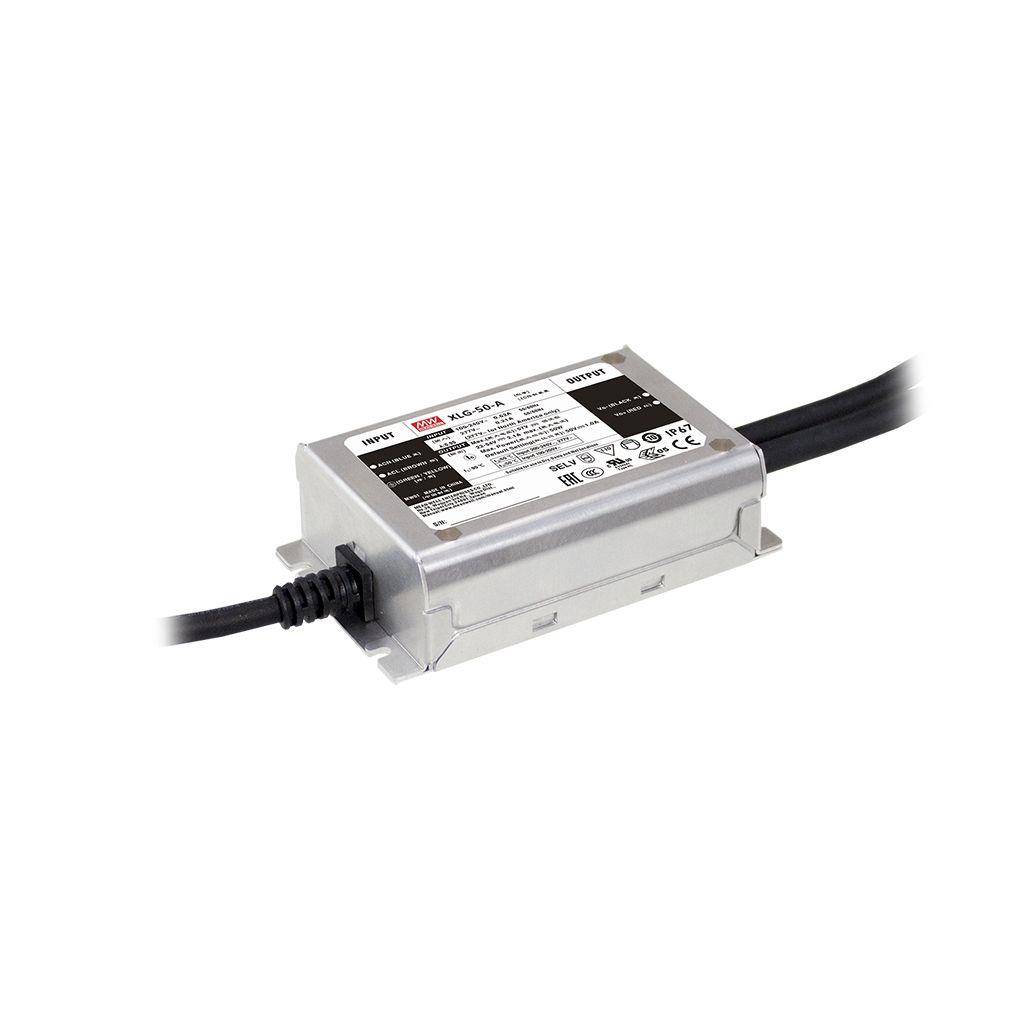

Information about the MEAN WELL XLG-50-A

The MEAN WELL XLG-50-A represents a significant advancement in LED driver technology, specifically engineered with a unique constant power mode design that provides ultimate flexibility for a wide range of lighting applications. This 50W driver is distinguished by its high-performance metal housing and an IP67 ingress protection level, making it exceptionally durable for both demanding indoor and rugged outdoor environments such as street lighting and architectural installations. A standout feature of the A-Type model is the integrated internal potentiometer, which allows for precise manual adjustment of the output current to match specific LED requirements. Its broad input range of 90 to 305V AC and built-in active PFC function ensure high efficiency of up to 90% and low total harmonic distortion, even under varying load conditions. Furthermore, the unit can survive a 440V AC input stress for up to 48 hours, offering a level of robustness and long-term reliability that is backed by an industry-leading 5-year warranty.
