• Rated Output Power: 35 W
• Constant Current Region: 300 – 1000 mA (700 mA default)
• Output Voltage Region: 27 – 56 V DC
• Input Voltage Range: 180 – 295 V AC, 47 – 63 Hz
• Efficiency: up to 88 %
• Power Factor: PF ≥ 0.95 at 230 V AC (load ≥ 50 %)
• Working Temperature (Case): Tcase −25 °C to +80 °C
• Cooling: Fanless free air convection
• Protections: Short circuit, Over voltage, Over temperature
• Withstand Voltage / Isolation Resistance: I/P-O/P: 3.75 kV AC, 100 MΩ / 500 V DC
• Dimensions (L x W x H): 280 mm x 30 mm x 21 mm
• Weight: approx. 0.22 kg
• Safety Standards & Certificates: UL8750, ENEC EN61347, CB, CE, EAC, BIS
• Operation Mode: Non-dimming constant current driver
• Manufacturer Warranty: 5 years

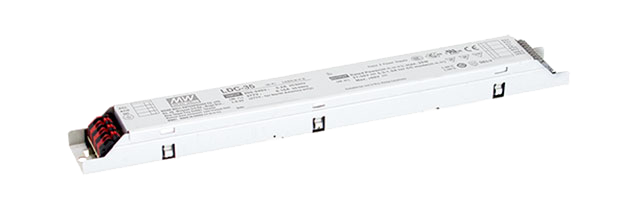

Information about the MEAN WELL LDC-35

Designed for straightforward, non-dimmable linear illumination requirements, the MEAN WELL LDC-35 standard series delivers dependable constant power output tailored for robust commercial fixtures. Featuring an exceptionally slim and low-profile metal housing, this driver fits seamlessly into narrow luminaire channels, trunking systems, and compact architectural spaces. Lighting designers and system integrators appreciate its reliable performance combined with an easily adjustable output current range for precise lighting setups.

Operational efficiency reaches up to 88%, supported by an active Power Factor Correction (PFC) function that ensures high energy utilization and low harmonic distortion. The completely fanless thermal design relies entirely on natural air convection, guaranteeing silent operation and eliminating vulnerable moving components. Furthermore, built-in temperature compensation via an external NTC thermistor protects connected LED arrays by dynamically scaling current output when critical thermal thresholds are approached.

Compliance with rigorous global safety standards including UL8750 and ENEC underscores the robust engineering behind this driver, ensuring effortless system certification for final installations. The unit operates dependably across a wide case temperature span from −25 °C up to +80 °C, backed by comprehensive electronic safeguards featuring automatic recovery from short circuits, overvoltages, and overtemperatures. Designed for longevity, the driver achieves a typical lifetime exceeding 50,000 hours when operated under standard thermal conditions.

Long-term operational confidence is further reinforced by a comprehensive manufacturer warranty backed for 5 years by MEAN WELL. Whether deployed in functional office layouts, retail environments, or continuous linear architectural runs, the LDC-35 merges steadfast power delivery, slim mechanical integration, and dependable operation into a single premium solution.
