• Rated Power: 57.75 W
• Output Current: 1050 mA
• Constant Current Region: 37 – 55 V DC
• Input Voltage Range: 90 – 295 V AC / 127 – 417 V DC, 47 – 63 Hz
• Efficiency: up to 90 %
• Current Ripple: ≤ 25% max. @rated current
• Inrush Current: max. 45 A @230 VAC
• Leakage Current: < 0.75 mA / 277 VAC
• Operating Temperature: −40 °C to +85 °C (Tcase)
• Cooling: Fanless free air convection
• Protection Functions: Over Current (Hiccup mode), Over Temperature (Shut down)
• Power Factor: PF > 0.95 / 230 VAC at full load
• Isolation Voltage: 3750 V AC between input and output
• Dimensions (D x H): 110 mm x 60.5 mm
• Weight: ca. 500 g
• Safety & EMC Certificates: UL8750, ENEC EN61347-1, EN61347-2-13, EAC, CB, CE
• Housing Material: Circular plastic enclosure (Class II design)
• Manufacturer Warranty: 5 years

Information about the MEAN WELL HBG-60-1050

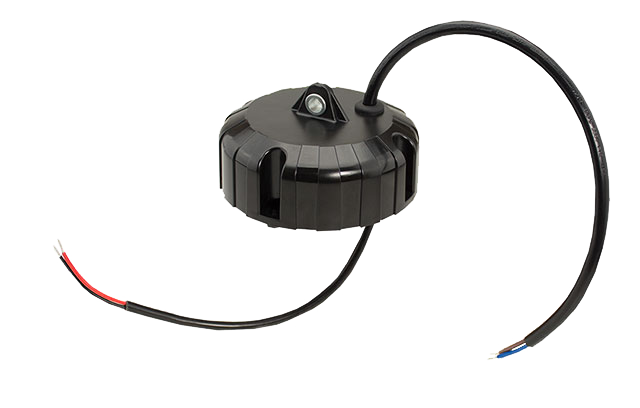

The MEAN WELL HBG-60-1050 is a highly specialized 60W AC/DC LED driver, uniquely characterized by its circular plastic housing. This specific form factor is engineered for seamless integration into LED bay, stage, and spot lighting fixtures where traditional rectangular drivers often face spatial constraints. By utilizing a Class II design without a functional earth, it ensures a high degree of safety and flexibility in various installation environments. The driver operates with a high efficiency of up to 90% and features a built-in active PFC function, ensuring optimal power usage and minimal harmonic distortion even under varying load conditions.

Durability and long-term reliability are core strengths of the HBG-60 series, which boasts a typical lifetime of over 50,000 hours. The fanless design allows for silent operation and enables the unit to withstand extreme temperatures ranging from -40°C to +85°C under free air convection. Furthermore, the unit is fully potted with a plastic enclosure that protects internal components, making it an excellent choice for demanding industrial and commercial lighting applications. With a robust 5-year warranty and global safety certifications including UL and ENEC, this driver provides a stable and secure constant current output for professional-grade LED modules.
