• Rated Power: 250.25 W
• Output Voltage Range: 71 – 143 V DC (Constant Current Region)
• Rated Current: 1750 mA (Adjustable 875 – 1750 mA via potentiometer)
• Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz
• Efficiency: Up to 93 %
• Current Ripple: 5.0% max. @ rated current
• Inrush Current: Cold start 75 A (t_width = 700 µs at 230 V AC)
• No-load Power Consumption: < 0.5 W
• Operating Temperature: −40 °C to +90 °C (Tcase)
• Cooling: Free air convection
• Protections: Short circuit, Over voltage, Over temperature
• Surge Immunity: 4KV Line-Earth, 2KV Line-Line
• Isolation Voltage: 3.75 KV AC (Input to Output)
• Dimensions (L x W x H): 244.2 mm x 68 mm x 38.8 mm
• Weight: Approx. 1300 g
• Safety & EMC Standards: UL8750, EN61347-1, EN61347-2-13, IP65, EAC
• Adjustment Feature: Internal Potentiometer for Current Setting
• Manufacturer Warranty: 7 Years

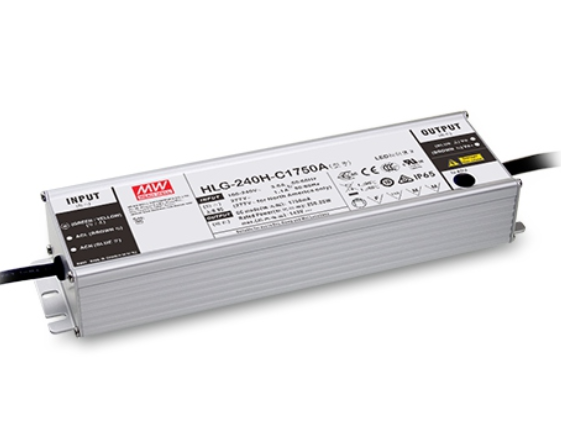

Information about the MEAN WELL HLG-240H-C1750A

The MEAN WELL HLG-240H-C1750A is a premier 250W AC/DC LED driver engineered for high-power constant current lighting solutions. This A-Type variant is distinguished by its heavy-duty aluminum enclosure with an IP65 rating, ensuring maximum protection against dust and water ingress in challenging indoor and outdoor environments. A core advantage of this model is the built-in internal potentiometer, which grants installers the flexibility to manually fine-tune the output current from 875 mA to 1750 mA, enabling perfect synchronization with specific LED array requirements and thermal management strategies. Achieving an efficiency of up to 93 %, the driver maintains a low thermal footprint, allowing for reliable fanless operation even at elevated case temperatures reaching +90 °C. The unit includes active Power Factor Correction (PFC) and is "Type HL" rated, making it safe for use in Class I, Division 2 hazardous locations such as industrial plants or refineries. Specifically designed for LED street lighting, high-bay architectural fixtures, and fishing lamps, its robust design is validated by a typical lifetime of more than 62,000 hours and is supported by a comprehensive 7-year manufacturer warranty, representing a top-tier choice for long-term infrastructure reliability.
