Technical Information & Details for MEAN WELL HLG-185H-C1400A Power Supply
- Output Power: 200.2 W
- Output Voltage Range: 71 – 143 V DC
- Output Current: 1400 mA (adjustable via internal potentiometer)
- Current ADJ. Range: 700 mA to 1400 mA
- Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC
- Efficiency: 94 %
- Power Factor: PF ≥ 0.98 / 115 VAC, PF ≥ 0.95 / 230 VAC
- Current Ripple: max. 5.0%
- Operating Temperature: −40 °C to +90 °C (T-case)
- Cooling: Fanless natural convection
- Ingress Protection: IP65 rated
- Protection Functions: Short circuit, Over voltage, Over temperature
- Isolation Voltage: 3750 V AC (Input to Output)
- Dimensions (L x W x H): 228 mm x 68 mm x 38.8 mm
- Weight: 1.15 kg
- Safety Standards: UL8750, EN61347-1, EN61347-2-13, CE, EAC
- Typical Lifetime: > 62,000 hours
- Manufacturer Warranty: 7 years

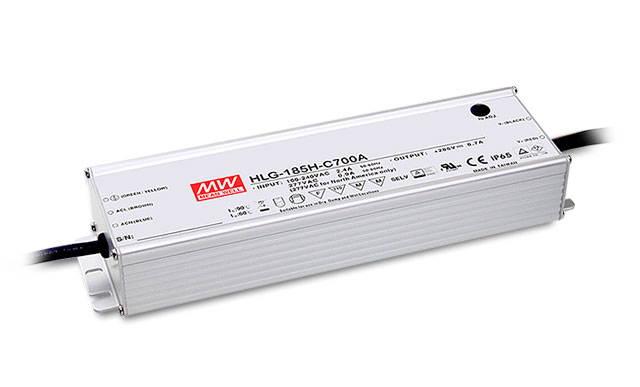

Information about the MEAN WELL HLG-185H-C1400A
The MEAN WELL HLG-185H-C1400A is a high-performance 200W LED driver engineered for constant current mode operation in demanding lighting environments. The defining feature of the "A" type model is its internal potentiometer, which allows for manual fine-tuning of the output current between 700 mA and 1400 mA. This capability is essential for static installations where a specific brightness level needs to be set and maintained without the complexity of external dimming controllers. With an industry-leading efficiency of up to 94%, this driver ensures maximum energy savings and minimized heat dissipation within its rugged aluminum housing.
Built for resilience, the unit features an IP65 ingress protection rating, making it highly resistant to dust and moisture, suitable for industrial high bay lighting, LED street lamps, and architectural spotlights. Its fanless design operates via natural air convection, ensuring stable and silent performance across a wide thermal range from -40 °C up to +90 °C. Supported by active PFC technology and a comprehensive 7-year manufacturer warranty, the HLG-185H-C1400A provides a reliable and maintenance-free power solution for over 62,000 hours, meeting the highest standards for professional lighting infrastructure.
