Technical Information & Details for MEAN WELL HLG-185H-C700A Power Supply
- Output Power: 200.2 W
- Output Voltage Range: 143 – 286 V DC
- Output Current: 700 mA (adjustable via internal potentiometer)
- Current ADJ. Range: 350 mA to 700 mA
- Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC
- Efficiency: 94 %
- Power Factor: PF ≥ 0.98 / 115 VAC, PF ≥ 0.95 / 230 VAC
- Current Ripple: max. 5.0%
- Operating Temperature: −40 °C to +90 °C (T-case)
- Cooling: Fanless natural convection
- Ingress Protection: IP65 rated
- Protection Functions: Short circuit, Over voltage, Over temperature
- Isolation Voltage: 3750 V AC (Input/Output)
- Dimensions (L x W x H): 228 mm x 68 mm x 38.8 mm
- Weight: 1.15 kg
- Safety Standards: UL8750, EN61347-1, EN61347-2-13, CE, EAC
- Typical Lifetime: > 62,000 hours
- Manufacturer Warranty: 7 years

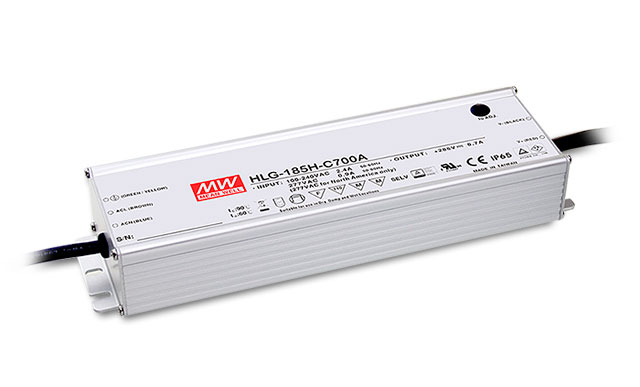

Information on the MEAN WELL HLG-185H-C700A
The MEAN WELL HLG-185H-C700A is a high-performance 200W AC/DC LED driver designed for constant current mode operation in high-voltage lighting systems. A key advantage of the "A" type model is its internal I/O level adjustment via a built-in potentiometer, allowing the output current to be manually fine-tuned from 350 mA to 700 mA. This feature provides exceptional control for static installations where a specific brightness level needs to be locked in without the need for external dimming wires or controllers. Boasting an outstanding efficiency of up to 94%, it ensures minimal energy waste and stable power delivery for professional-grade LED luminaires.
Equipped with an IP65 rated metal enclosure, the HLG-185H-C700A is built to perform in demanding environments, offering significant resistance to dust and moisture. Its fanless design utilizes natural air convection for cooling, enabling a wide operating temperature range from -40 °C to +90 °C. This makes it a perfect fit for high bay lighting, floodlights, and industrial plant lighting. With the added benefit of active PFC technology and a massive 7-year manufacturer warranty, this driver represents a highly reliable, long-term solution with a typical lifetime exceeding 62,000 hours, ensuring peace of mind for large-scale lighting infrastructure.
