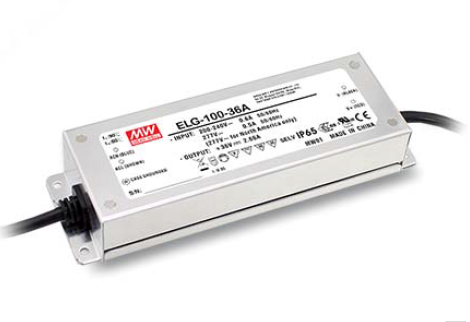

ELG-100-36A-3Y

Product information "ELG-100-36A-3Y"

Technical Information & Details for MEAN WELL ELG-100-36A-3Y Power Supply

  • Output Power: 95.76 W (at 200–305 V AC) / 70 W (at 100–180 V AC)
  • Output Voltage: 36 V DC (adjustable 32.4–39.6 V DC)
  • Output Current: 2.66 A (adjustable 1.33–2.66 A)
  • Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz
  • Efficiency: Up to 90%
  • Ripple & Noise: ≤ 200 mVp-p
  • Inrush Current: COLD START 60 A @ 230 V AC
  • No Load / Standby Power: < 0.5 W
  • Operating Temperature: −40 °C to +90 °C (Case temperature Tcase)
  • Cooling: Fanless free air convection
  • Protections: Short circuit (Hiccup mode), Overload (Constant current limiting), Over voltage, Over temperature
  • Isolation Voltage: 3750 V AC between Input and Output
  • Adjustment Feature: Voltage and current adjustable via internal potentiometers (A-Type)
  • Ingress Protection / Housing: IP65, Metal housing
  • Dimensions (L x W x H): 199 mm x 63 mm x 35.5 mm
  • Weight: approx. 850 g
  • Safety & EMC Standards: UL8750 (Type HL), EN61347-1, EN61347-2-13, EN55015, EAC, CB, CE
  • AC Input Connection: 3-wire AC input cable with Protective Earth grounding (3Y variant)
  • Warranty: 5 Years

Information about MEAN WELL ELG-100-36A-3Y

Precise system tuning is enabled on the MEAN WELL ELG-100-36A-3Y using built-in manual potentiometers (A-Type) that allow exact adjustments to both voltage levels and current output limits. Equipped with a factory-fitted 3-conductor AC input cable featuring a Protective Earth (PE) ground wire, it adheres to industrial grounding safety specifications. Its rugged metal enclosure carries an IP65 ingress rating to resist dust penetration and low-pressure water sprays in outdoor installations. Dissipating heat silently through fanless passive air convection, it operates continuously across case temperatures ranging from -40 °C to +90 °C. Standard compliance with UL8750 (Type HL) for Class I, Division 2 hazardous locations is backed by a 5 years factory warranty.


Verfügbare Downloads
Download ELG-100 Datenblatt
Eigenschaften für "ELG-100-36A-3Y"
Approval: CB, CCC, CE, ENEC, MM, SELV, TÜV, UL
Efficiency: 89%
Height: 35,5
Length: 199
Protection Class: Class 2, Class I
Protection Rating: IP65
Rated current: 2,66
Series: ELG
Voltage: 36 VDC
Warranty: 5 years
Wattage: 96 W, 100 W
Weight: 0,85kg
Width: 63
