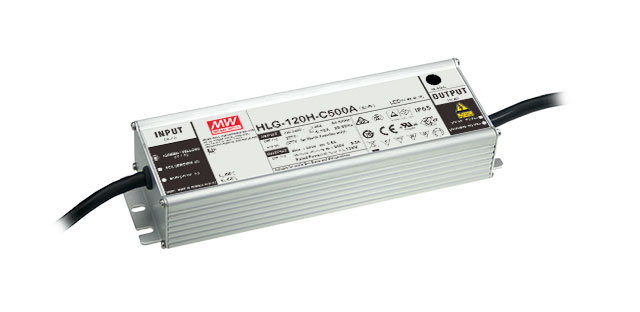

Technical Information & Details for the MEAN WELL HLG-120H-C500A
- Rated Power: 150 W
- Rated Current: 500 mA
- Constant Current Region: 150 – 300 V DC
- Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC
- Efficiency (typ.): 94 %
- Current Adj. Range: 250 – 500 mA (via internal potentiometer)
- Operating Temp. (Case): −40 °C to +90 °C
- IP Rating: IP65
- Typical Lifetime: > 62,000 hours
- Manufacturer Warranty: 7 Years
Information about the MEAN WELL HLG-120H-C500A
The MEAN WELL HLG-120H-C500A is a high-performance 150W AC/DC LED driver featuring constant current mode and high voltage output. As an "A-Type" model, it is equipped with a built-in potentiometer that allows installers to manually adjust the output current level from 250mA to 500mA, providing flexibility for specific load requirements.
Housed in a rugged IP65-rated metal enclosure, this driver is engineered for both indoor and outdoor installations. With an efficiency of 94% and active Power Factor Correction (PFC), it ensures optimized energy consumption. Its fanless design allows for silent operation and extreme durability in harsh environments, making it ideal for LED street lighting, fishing lamps, and architectural applications.
