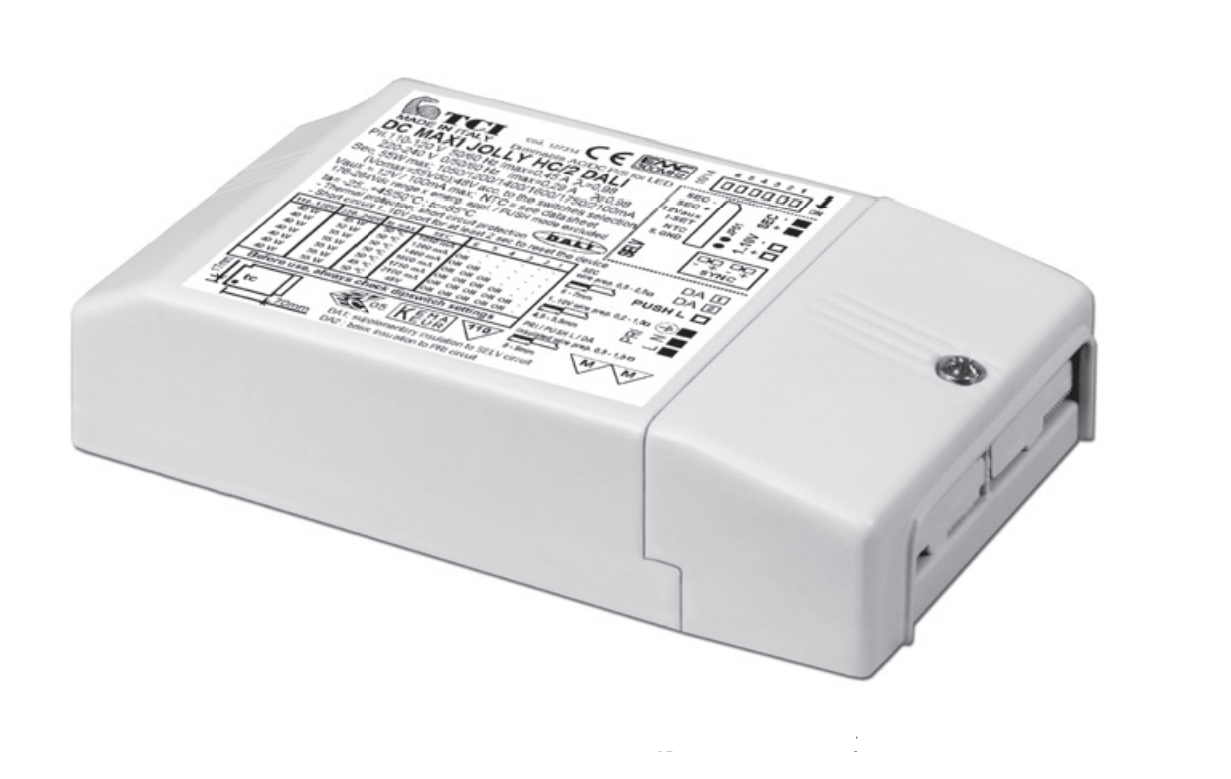

DC Maxi Jolly HC/2 DALI
Product information "DC Maxi Jolly HC/2 DALI"
In: 100-264VAC 50-60Hz / Phasecut dimmbar / 92% eff. / 129x76x30mm
Out: 45-60W / DALI 2 / 1,05A (2...44VDC), 1,2A (2...44VDC), 1,4A (2...43VDC), 1,6A (2...38VDC), 1,75A (2...35VDC), 2,1A (2...29VDC);
1% min Dimmlevel / mit Klemmenabdeckung incl. Zugentlastung
TCI123314
Verfügbare Downloads
Download DC Maxi Jolly HC/2 DALI Datenblatt
Eigenschaften für "DC Maxi Jolly HC/2 DALI"
| Approval: | CCC, EL, ENEC, MM, SELV, UL |
|---|---|
| Efficiency: | 92% |
| Height: | 30 |
| Length: | 129 |
| Protection Rating: | IP20 |
| Voltage Range (CC): | 2...44VDC |
| Warranty: | 7 years, 10 Jahre |
| Wattage: | 45-60W |
| Weight: | 0,245kg |
| Width: | 76 |
