• Output Power: 75.6 W
• Output Voltage: 36 V DC
• Output Current: 2.1 A
• Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz
• Input Wiring: 3-wire input with Protective Earth (PE / Green-Yellow)
• Efficiency: up to 89%
• Ripple & Noise: ≤ 250 mVp-p
• Inrush Current: max. 50 A @ 230 VAC
• No-Load Power Consumption: < 0.5 W
• Operating Temperature: −40 °C to +85 °C
• Control Interface: DALI (Digital Addressable Lighting Interface)
• Cooling: fanless natural convection
• Protections: Short circuit, overcurrent, overvoltage, overtemperature
• IP Rating: IP67
• Isolation Voltage: 3750 V AC between input and output
• Dimensions (L x W x H): 180 mm x 63 mm x 35.5 mm
• Weight: approx. 800 g
• Safety & EMC Certificates: CE, ENEC, TUV, CB, EAC, UKCA, DALI
• Power Factor Correction (PFC): Active
• Manufacturer Warranty: 5 Years

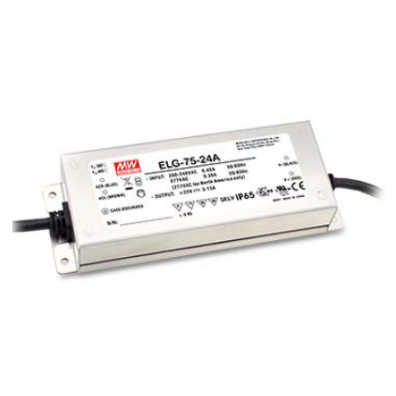

Information about the MEAN WELL ELG-75-36DA-3Y

The MEAN WELL ELG-75-36DA-3Y represents a groundbreaking LED power supply that masterfully integrates cutting-edge DALI control technology with the highest electrical safety standards and rugged outdoor protection. As the premium fusion of the intelligent "DA" variant and secure "3Y" execution, it delivers precise two-way digital communication via the globally established DALI protocol (16 groups, 64 addresses) for sophisticated smart building ecosystems, complemented by a critical Protective Earth (PE) connection ensuring safe integration into metallic housings. The fully hermetically sealed aluminum enclosure featuring a rigorous IP67 certification provides complete defense against dust and water submersion, while the active Power Factor Correction (PFC) achieves superior efficiency up to 89% with minimal grid loading and absolute flicker-free performance in mixed CV/CC mode.

Engineered for flawless worldwide and industrial continuous operation, this power supply effortlessly manages extreme fluctuations through its expansive input voltage range of 100 to 305 V AC. The innovative fanless architecture leverages only natural convection cooling, delivering completely silent, maintenance-free performance across the exceptional operating temperature range of −40 °C to +85 °C, eliminating all mechanical wear risks entirely. For ultimate safeguarding of your high-value LED infrastructure, it incorporates comprehensive protection mechanisms against all critical fault conditions. Supported by an industry-leading 5-year manufacturer warranty, the MEAN WELL ELG-75-36DA-3Y establishes itself as the unrivaled premier solution for networked architectural lighting, professional floodlight arrays, and sophisticated DALI-controlled outdoor illumination systems.
