Technical Information & Details for MEAN WELL HLG-240H-12B Power Supply Output Power: 192 W Output Voltage: 12 V DC Output Current: 16 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC Efficiency: 90 % Dimming Function: 3-in-1 dimming (1-10V DC, 10V PWM, Resistance) Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 75 A (Cold start @ 230 VAC) Operating Temperature: −40 °C to +90 °C (case temperature) Cooling: Fanless design by free air convection Protection Functions: Short circuit, Over current, Over voltage, Over temperature Ingress Protection: IP67 (Fully waterproof and dust-tight) Isolation Voltage: 3.75 kV AC (I/P-O/P) Dimensions (L x W x H): 244.2 mm x 68 mm x 38.8 mm Weight: approx. 1300 g Certificates: UL8750, EN61347-1, EN55015, Type HL Manufacturer Warranty: 7 years Information about the MEAN WELL HLG-240H-12B The MEAN WELL HLG-240H-12B is a premier 192W LED driver engineered for smart lighting systems and high-performance industrial setups. This B-type model is distinguished by its advanced 3-in-1 dimming technology, which supports 1-10V DC, 10V PWM signal, or resistance-based control, providing seamless integration into modern building automation and DALI or Zigbee-controlled networks. Built to withstand the harshest environments, it features a fully potted metal housing with an IP67 rating, ensuring total protection against dust and temporary immersion in water. The dual-mode constant voltage and constant current output provides the stability needed for high-power LED strips and arrays, effectively extending the lifespan of the connected lighting components. With a wide input voltage range up to 305 VAC and "Type HL" certification for hazardous locations, this power supply is the industry benchmark for outdoor street lighting, parking lot illumination, and industrial high-bay fixtures. The exceptional 7-year manufacturer warranty emphasizes MEAN WELL’s commitment to long-term operational safety and superior build quality, even at peak operating temperatures of +90 °C.

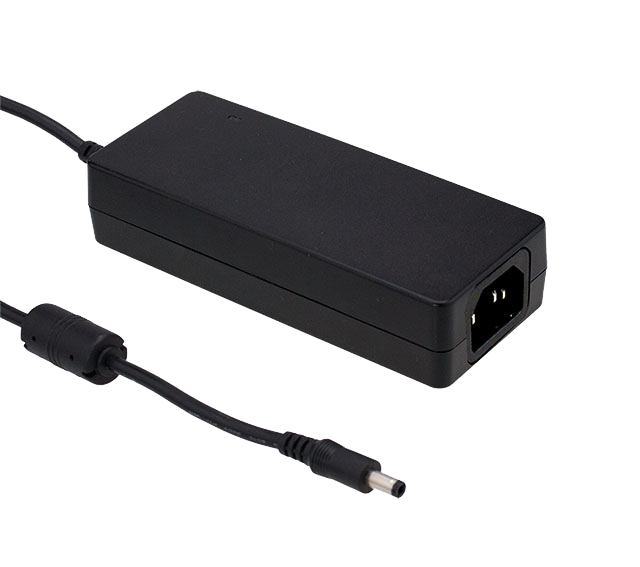

Technical Specifications & Details for MEAN WELL GSM90A12-P1M Power Supply Output Power: 80 W Output Voltage: 12 V DC Output Current: 6.67 A Input Voltage Range: 80 – 264 V AC, 47 – 63 Hz Efficiency: 88% Ripple & Noise: ≤ 120 mVp-p Inrush Current: 30 A @115 VAC / 60 A @230 VAC No-Load Power Consumption: < 0.15 W Operating Temperature: −30 °C to +70 °C Cooling: Free air convection (Fanless) Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Level: Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP Isolation Voltage: 4000 V AC (Input to Output) Dimensions (H x W x D): 32 mm x 60 mm x 145 mm Weight: approx. 450 g Safety & EMC Standards: ANSI/AAMI ES60601-1, IEC/BS EN/EN60601-1, CAN/CSA C22.2 No. 60601-1, EAC, CE, UKCA LED Indicator: Power On indicator Warranty: 3 Years Product Information for MEAN WELL GSM90A12-P1M Engineered to power critical medical equipment, the MEAN WELL GSM90A12-P1M desktop adapter delivers a regulated 12 V DC output designed for direct patient contact safety. Compliance with 2xMOPP medical safety standards combined with an ultra-low touch leakage current makes this power supply an essential component for oral irrigators, medical computer monitors, and mobile clinical carts. Built to withstand demanding thermal environments, it functions seamlessly within a wide thermal window of -30 °C to +70 °C. The unit features a durable 94V-0 flame-retardant enclosure, high electrical safety isolation with 4KVAC I/P-O/P withstand voltage, and energy-conscious performance achieving <0.15W no-load power consumption alongside Level VI efficiency compliance.

Technical Information & Details for MEAN WELL ELG-150-12B-3Y LED Driver Output Power: 120 W (at 200 – 305 V AC) / 84 W (at 100 – 180 V AC) Output Voltage: 12 V DC (Constant current region: 6 – 12 V) Rated Current: 10 A Dimming Function (3-in-1 Dimming): 0 – 10 V DC, 10 V PWM signal (100 Hz – 3 kHz), or resistance (0 – 100 kΩ) Ripple & Noise (max.): ≤ 150 mVp-p Voltage Tolerance: ±3.0% Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC Power Cord Option (3Y Specification): 3-wire AC input cable (Class I with safety earth ground) for European / global standard installations Efficiency (Typ.): 88% Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load) Ingress Protection: IP67 (suitable for indoor and outdoor installations) Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C) Cooling: Fanless free air convection Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (13.5 – 18 V), Over temperature Form Factor / Housing: Metal housing design with functional Ground (Class I) Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm Weight: Approx. 0.95 kg Manufacturer Warranty: 5 Years Information about MEAN WELL ELG-150-12B-3Y The MEAN WELL ELG-150-12B-3Y is a high-performance AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 12 V DC output with a rated current of up to 10 A (120 W output at 200–305 V AC). As a B-Type model, it features an IP67 rating and built-in 3-in-1 dimming functionality (0–10V, PWM, or resistance) via a dedicated dimming cable. The 3Y suffix designates the model configured with a 3-wire AC input cable with protective earth grounding for compliance with international safety standards. Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.

Technical Information & Details for MEAN WELL ELG-150-12DA LED Driver Output Power: 120 W (at 200 – 305 V AC) / 105 W (at 100 – 180 V AC) Output Voltage: 12 V DC (Constant current region: 6 – 12 V) Rated Current: 10 A Dimming Function (DALI Interface): DALI-1 control protocol (EN62386-101, 102, 207) Ripple & Noise (max.): ≤ 150 mVp-p Voltage Tolerance: ±3.0% Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC Efficiency (Typ.): 89% Power Factor (PF): PF ≥ 0.97 at 115 V AC / PF ≥ 0.95 at 230 V AC / PF ≥ 0.92 at 277 V AC (at full load) Ingress Protection: IP67 (suitable for indoor and outdoor installations) Operating Temperature: Tcase −40 °C to +90 °C (max. case temperature +90 °C) Cooling: Fanless free air convection Protections: Over current (95 – 108%, constant current limiting), Short circuit (hiccup mode), Over voltage (14 – 18 V), Over temperature Form Factor / Housing: Metal housing design with functional Ground (Class I) Dimensions (L x W x H): 219 mm x 63 mm x 35.5 mm Weight: Approx. 0.95 kg Manufacturer Warranty: 5 Years Information about MEAN WELL ELG-150-12DA The MEAN WELL ELG-150-12DA is a high-performance 150W AC/DC LED power supply featuring dual mode constant voltage and constant current output. Housed in a durable metal casing, it accepts a wide input voltage range of 100 to 305 V AC and provides a 12 V DC output with a rated current of up to 10 A (120 W output at 200–305 V AC). As a DA-Type model, it features an IP67 rating and an integrated DALI technology interface complying with DALI-1 standards (EN62386). Designed with fanless free air convection cooling, it operates efficiently across case temperatures ranging from −40 °C to +90 °C, making it suitable for indoor and outdoor installations such as LED street lighting, architectural lighting, and floodlighting. Equipped with active PFC, built-in protection circuitry, and a lifetime expectancy exceeding 50,000 hours, it is backed by a 5-year manufacturer warranty.

Technical Information & Details for MEAN WELL ELG-200-12B-3Y Power Supply Output Power: 150 W Output Current: 12.5 A Output Voltage: 12 V DC Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 90% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @230 VAC Standby Power Consumption: < 0.5 W Operating Temperature: −40 °C to +90 °C (case temperature Tcase) Cooling: fanless free air convection Protections: short circuit, over current, over voltage, over temperature Overvoltage Category: OVC II Isolation Voltage: 3750 V AC input to output Dimensions (L x W x H): 244 mm x 71 mm x 37.5 mm Weight: approx. 1220 g Safety & EMC Certificates: CE, UL8750 (Type HL), EN61347-1, EN61347-2-13, EAC, BIS Protection Rating & Feature: IP67, 3-in-1 dimming function, 3-wire AC input with PE (3Y) Manufacturer Warranty: 5 years Information on the MEAN WELL ELG-200-12B-3Y Precision dimming control meets robust industrial power in the MEAN WELL ELG-200-12B-3Y, designed to supply 150 W output for 12 V lighting applications. Equipped with versatile 3-in-1 dimming capabilities—supporting 0–10VDC, 10V PWM signals, or resistance—it seamlessly integrates into smart control environments. The driver is fully sealed within a metal housing that achieves an IP67 ingress protection rating, alongside a 3-wire input cable with dedicated safety grounding (PE) for complete installation safety. Holding a hazardous location Type HL rating, it is certified for safe operation in Class I, Division 2 environments. Heavy-duty construction ensures continued operation under physical strain with 5G vibration resistance, while overall system dependability is backed by a full 5-year warranty.
