ELG-150-24B

In: 100-305VAC 47-63Hz 142-431VDC / Eff. 92% / 140x63x32mmOut: 24V 4A, 2-4A strom einstellbar , Arbeitet im CC und CV modus, IP67

Technische Eigenschaften des MEAN WELL LPF-90D-24 Leistung: 90 W Eingangsbereich: 90 bis 305 VAC Ausgangsspannung: 24 VDC 3 in 1 Dimmung aktive PFC-Funktion Class II Netzgerät konvektionsgekühlt Hoher Wirkungsgrad von 90% Schutz vor Kurzschluss, Überspannung, Überlast Überhitzungsschutz UL8750, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2  Informationen zum MEAN WELL LPF-90D-24 Mit dem LPF-90D-24 stellt Mean Well ein hochwertiges LED-Netzteil im Kunststoffgehäuse für Indoor- und Outdoor-Installationen wie z. B. LED-Flächenleuchten, LED-Anzeigenschilder oder LED-Beleuchtungen im Tunnel dar. Dieses Netzgerät von MeanWell liefert eine geregelte Leistung von 90 W bei einer vielfältig einsetzbaren 24 VDC Ausgangsspannung und verfügt über einen weltweit anwendbaren Weitbereichseingang von 90 bis 305 VAC (Derating bei 90 - 100 VAC). Dabei beträgt der Ausgangsstrom 3,75 A. Alle Modelle der Mean Well LPF-90D-Serie sind mit der aktiven PFC-Funktion ausgestattet und unterstützen des Weiteren eine 3 in 1 Dimmung. Die Steuerung erfolgt über Anlegung einer externe 0 - 10 VDC Spannung, eines 10 V PMW Signal oder per Widerstand. Falls Sie Fragen dazu haben, können Sie sich gerne jederzeit mit uns in Verbindung setzen. Die Mean Well LPF-90D-Serie zeichnet sich vor allem durch die Schutzart IP67 sowie die Zertifizierung als Class II Netzteile aus. Daher können die LED-Schaltnetzteile von MeanWell sowohl in trockenen als auch in feuchten Betriebsumgebungen problemlos eingesetzt werden. Neben diesen Features gewährleistet die konvektionsgekühlte Produktreihe von Mean Well einen geräuscharmen Betrieb mit einer guten Arbeitseffizienz. Dabei kann die MeanWell LPF-90D-Serie einen hohen Wirkungsgrad von bis zu 90,5% erreichen. Darüber hinaus bieten die LED-Netzteile der Mean Well NPF-90D-Serie am Ausgang einen Schutz gegen Kurzschluss, Überspannung sowie Überlast. Die Produktserie von MeanWell ist desweiteren gegen Überhitzung geschützt und besitzt außerdem mehrere Zulassungen und Zertifikate (UL8750, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2), die für LED-Schaltnetzteile im LED-Beleuchtungssektor grundlegend sind.

Technical Information & Details for MEAN WELL HLG-150H-24AB Power Supply Output Power: 151.2 W Output Voltage: 24 V DC Output Current: 6.3 A Input Voltage Range: 90 – 305 V AC / 127 – 431 V DC, 47 – 63 Hz Efficiency: 94% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 65 A @ 230 V AC No-load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +90 °C Cooling: Fanless, free air convection Protection Functions: Short circuit, Overload, Over voltage, Over temperature IP Rating: IP65 for indoor or outdoor installations Withstand Voltage: 3.75KVAC (Input to Output) Dimensions (L x W x H): 228 mm x 68 mm x 38.8 mm Weight: approx. 1150 g Safety & EMC Certificates: UL8750, EN61347-1, EN61347-2-13, IP65, CE Control Options: Internal potentiometers (Vo & Io) + 3-in-1 dimming Manufacturer Warranty: 7 Years About the MEAN WELL HLG-150H-24AB The MEAN WELL HLG-150H-24AB is a high-performance LED driver designed for engineers who require maximum control flexibility and industrial-grade durability. This specific "AB" variant integrates the features of both the A and B types, allowing for local manual calibration of output voltage and current levels via internal potentiometers, while simultaneously supporting advanced 3-in-1 dimming protocols. This enables seamless integration into automated systems using 1-10V DC, 10V PWM signals, or external resistance for precise light intensity management. Housed in a rugged aluminum enclosure with an IP65 rating, the unit is fully protected against moisture and dust, ensuring reliable operation in harsh environments from -40°C to +90°C. With a peak efficiency of 94% and an optimized thermal design, it achieves a service life of more than 62,000 hours without the need for active cooling. Reflecting its superior build quality and long-term stability, this power supply comes with a 7-year manufacturer warranty, making it a preferred choice for large-scale outdoor lighting and critical industrial infrastructure.

Not approved as an LED driver within the EU! An approved alternative is, for example, the LPF-60 series. Technical Information & Details of the MEAN WELL LPV-60-24 Power Supply Output Power: 60 W Output Voltage: 24 V DC Output Current: 2.5 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 86 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @230 VAC No-load Power Consumption: < 0.5 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protection Features: Short-circuit, Overload, Overvoltage Overvoltage Category: OVC III Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 32 mm x 42.5 mm x 162.5 mm Weight: approx. 420 g Safety & EMC Certificates: CE, UL1310, TUV, CB, EAC, IP67 LED Indicator: - Manufacturer Warranty: 2 years Information about the MEAN WELL LPV-60-24 The MEAN WELL LPV-60-24 is a powerful LED power supply with 60 W and stable 24 V DC / 2.5 A output voltage. It excels with excellent efficiency up to 86 %, fanless convection cooling for silent operation, and a fully waterproof IP67 housing. The comprehensive protection features (short-circuit, overload, and overvoltage protection) with automatic recovery ensure maximum operational safety. Perfect for LED strips, modules, outdoor lighting, and humid environments – the universal input voltage range 90–264 V AC enables worldwide deployment. With international certifications, the LPV-60-24 offers maximum flexibility, durability, and weatherproof protection in demanding environments.

Technical Information & Details about the MEAN WELL LPV-100-24 Power Supply Rated output power: 100.8 W DC output voltage: 24 V DC Rated output current: 4.2 A Current range: 0 – 4.2 A Input voltage range: 90 – 264 V AC (127 – 370 V DC), 47 – 63 Hz Efficiency (typical): about 88 % Ripple & noise (max.): ≤ 150 mVp-p Output voltage range (O.V.P. region): 27.6 – 32.4 V DC Voltage tolerance: ±5.0 % Line regulation: ±2.0 % Load regulation: ±5.0 % Setup, rise time: 2000 ms, 25 ms at 230 V AC / 115 V AC (first cold start) Hold-up time (typ.): 50 ms at 230 V AC / 14 ms at 115 V AC (full load) AC input current (typ.): 2.2 A at 115 V AC / 1.2 A at 230 V AC Inrush current (typ.): 75 A at 230 V AC (cold start, twidth ≈ 700 μs) Leakage current: < 0.25 mA at 240 V AC Overload protection: 110 – 150 % of rated output power, hiccup mode, auto recovery after fault removal Overvoltage protection: shut down output voltage at 27.6 – 32.4 V, re‑power on to recover Operating temperature: −25 °C to +70 °C (derating required, see curve) Operating humidity: 20 – 90 % RH, non‑condensing Storage conditions: −40 °C to +80 °C, 10 – 95 % RH Cooling method: free air convection (fanless) Withstand voltage: 3000 V AC between input and output Isolation resistance: > 100 MΩ at 500 V DC, 25 °C, 70 % RH Ingress protection rating: IP67, fully encapsulated plastic case Dimensions (L x W x H): 190 mm x 52 mm x 37 mm Weight: approx. 610 g Vibration resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z) EMC emission: BS EN/EN 55032 Class B, BS EN/EN 61000‑3‑2 Class A (≤80 % load), BS EN/EN 61000‑3‑3 EMC immunity: BS EN/EN 61000‑4‑2,‑3,‑4,‑5,‑6,‑8,‑11; BS EN/EN 55035 Safety approvals: UL 8750, CSA C22.2 No. 250.13‑12, UL 879, CSA C22.2 No. 207‑M89, BIS IS 15885, IEC/BS EN/EN 62368‑1, EAC Case design: fully isolated, encapsulated plastic case for damp and dusty environments MTBF (typical): 4,497,100 h (Telcordia SR‑332, 25 °C) Manufacturer warranty: 2 years About the MEAN WELL LPV-100-24 The MEAN WELL LPV-100-24 is a 100 W class constant‑voltage switching power supply that provides a regulated 24 V DC output at up to 4.2 A, fully encapsulated in an IP67 plastic housing for reliable use in harsh environments. Its universal AC input range, high efficiency, short‑circuit, overload and overvoltage protection, and fanless free air convection make it suitable for indoor and sheltered outdoor applications. With compact dimensions, strong isolation and broad safety and EMC approvals, LPV-100-24 is a robust 24 V source for LED strips, signage, control systems and other low‑voltage equipment that require a rugged, dust‑ and splash‑proof power supply.

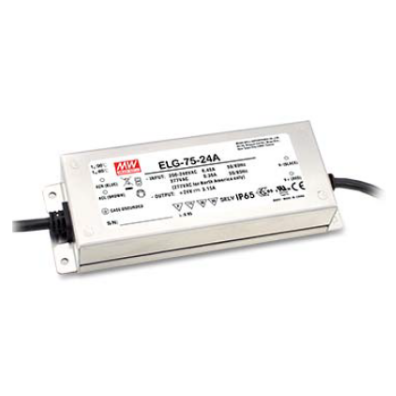

Technical Information & Details on MEAN WELL ELG-75-24B Power Supply Output Power: 75.6 W Output Voltage: 24 V DC Output Current: 3.15 A Input Voltage Range: 100 – 305 V AC / 142 – 431 V DC, 47 – 63 Hz Efficiency: up to 88 % Ripple & Noise: ≤ 200 mVp-p Inrush Current: 50 A / 350 µs @ 230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +85 °C (Case Temp.) Cooling: fanless, IP67 waterproof Protection Functions: Short Circuit (Hiccup), Overload, Overvoltage, Over Temperature (Auto Recovery) Overvoltage Category: OVC II Isolation Voltage: 3.75 kV AC between IP and OP Dimensions (L x W x H): 180 mm x 63 mm x 35.5 mm Weight: ca. 800 g Safety & EMC Certifications: CE, UL8750, IEC/EN 61347-1/2-13, EAC, CB, IP67 LED Indicator: Power On Indicator Manufacturer Warranty: 5 Years Information on MEAN WELL ELG-75-24B The MEAN WELL ELG-75-24B is a versatile 75W LED driver power supply featuring unique 3-in-1 dimming capability (0-10V, PWM, resistance), specifically engineered for flexible lighting applications. With a universal input voltage range of 100–305 V AC and impressive efficiency up to 88 %, it delivers stable 24 V DC at 3.15 A with adjustable voltage range and IP67 waterproof aluminum housing for reliable operation in harsh environments. The extreme thermal resilience up to 85 °C case temperature combined with fanless convection cooling makes it perfect for industrial LED installations, facade lighting, and weather-exposed applications requiring maximum uptime. The ELG-75-24B excels with built-in PFC for optimal power factor correction and comprehensive protection circuits with automatic recovery, ensuring low ripple noise under 200 mVp-p for flicker-free, premium-quality lighting. Its compact design measuring 180 x 63 x 35.5 mm and MTBF exceeding 345,000 hours guarantee long-term deployment security, backed by global certifications including UL8750 and IEC/EN 61347-2-13. With the extended 5-year manufacturer warranty, the ELG-75-24B delivers professionals an unbeatable combination of flexibility, efficiency, and durability.
