HVGC-150-500B

Quantity	Unit price
From 1	€80.80 *
From 5	€77.00 *
From 10	€73.60 *
From 20	€71.50 *

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 15647

Datenblatt zu HVGC-150-500B

In: 180-528VAC 47-63Hz 254-747VDC / 3in1 (0-10v, PWM) / Eff. 91% / 245x68x39mm Out: 350mA... more

Close menu

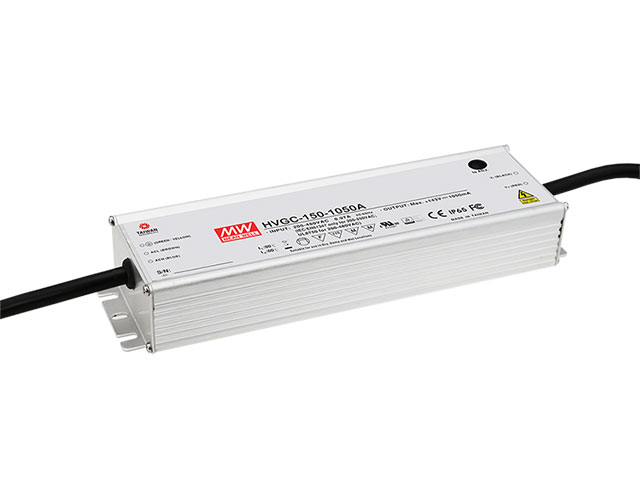

Product information "HVGC-150-500B"

In: 180-528VAC 47-63Hz 254-747VDC / 3in1 (0-10v, PWM) / Eff. 91% / 245x68x39mm
Out: 350mA (42-428V) / 500 (30-300) / 700 (21-215) / 1050 (15-143) / 1400 (12-107)

Related links to "HVGC-150-500B"

Do you have any questions concerning this product?
Further products by MEAN WELL

Available downloads:

Download HVGC-150 Datenblatt

Hier können Sie alle Eigenschaften sehen more

Eigenschaften für "HVGC-150-500B"

Power:	150 Watt
Dimming:	3 in 1 dimming (1-10V, Poti, PWM)
Constant current:	500 mA
Protection type:	IP67
Protection class:	Class I
Efficiency:	91 %
Rated current:	0,5 A
Warranty:	Five years
Safety approvals:	CE, CB, CCC, MM, SELV, TÜV, UL
Height:	38,8 mm
Width:	6, 68 mm
Length:	245 mm
Weight:	1,24kg
