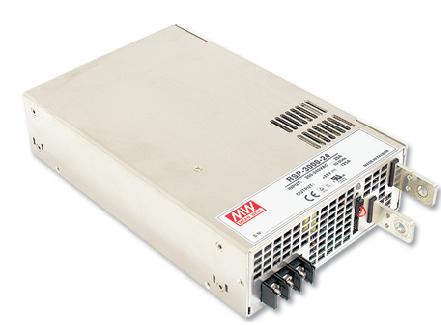

Technical Information & Details for the MEAN WELL RSP-3000-24 Power Supply Output Power: 3000 W Output Voltage: 24 V DC Output Current: 125 A Input Voltage Range: 180 – 264 V AC / 254 – 370 V DC, 47 – 63 Hz Efficiency: up to 90.5% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @ 230 VAC Leakage Current: < 2.0 mA / 240 VAC Operating Temperature: −20 °C to +70 °C Cooling: Forced air cooling by built-in DC fan with speed control Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: 3000 V AC between input and output Dimensions (L x W x H): 278 mm x 177.8 mm x 63.5 mm Weight: approx. 4.0 kg Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, EAC, CB, CE LED Indicator: Power On indicator Special Functions: Active Current Sharing, Remote ON/OFF, Remote Sense, PV Function Manufacturer Warranty: 5 Years Information about the MEAN WELL RSP-3000-24 The MEAN WELL RSP-3000-24 is a high-density industrial power supply designed for mission-critical applications that demand a stable 24V DC output at an impressive 125 Amperes. One of its most significant characteristics is the output voltage programmable (PV) function, which allows users to dynamically adjust the voltage from 20% to 110% of the rated value via an external DC signal. Furthermore, the unit features active current sharing, enabling the synchronization of up to three units in parallel to deliver a staggering 9000W of total power, making it an ideal choice for large-scale RF applications and automated testing facilities. Engineered for longevity and performance, this power supply boasts an efficiency of up to 90.5% and is housed in a slim 2U low-profile chassis to maximize space efficiency in rack systems. The built-in intelligent fan control maintains optimal thermal conditions while reducing acoustic noise during partial load operations. Comprehensive safety features, including Remote Sense for voltage drop compensation and Remote ON/OFF control, are complemented by a robust 5-year manufacturer warranty, ensuring reliable 24/7 operation for demanding industrial automation, laser-related machinery, and broadcasting equipment.

MEAN WELL DPU-3200-24 Leistung: 3192W Spannung: 24V Universaler AC-Vollbereichseingang Eingebaute PFC-Funktion Hohe Arbeitseffizienz bis zu 93,5% Lüftkühlung durch integrierten DC-Lüfter Ausgangsspannung und Konstantstromlevel programmierbar Aktive Stromverteilung bis zu 16.000W (4+1) Schutz vor Kurzschluss, Überlast, Überspannung, Überhitzung Optional mit Schutzbeschichtung Optional mit PMBus oder CANBus Protokoll 5 Jahre Garantie Sicherheitszertifikate: UL/EN/IEC 62368-1/EAC/CB/CE Anwendungsbereiche: Fabrik- oder Automationskontrollgeräte, Test- und Messinstrumente, Maschinen mit Lasertechnologie, digitale Übertragungen, Konstantstromquelle, redundante Systeme

MEAN WELL DPU-3200-48 Leistung: 3216W Spannung: 48V Universaler AC-Vollbereichseingang Eingebaute PFC-Funktion Hohe Arbeitseffizienz bis zu 94,5% Lüftkühlung durch integrierten DC-Lüfter Ausgangsspannung und Konstantstromlevel programmierbar Aktive Stromverteilung bis zu 16.000W (4+1) Schutz vor Kurzschluss, Überlast, Überspannung, Überhitzung Optional mit Schutzbeschichtung Optional mit PMBus oder CANBus Protokoll 5 Jahre Garantie Sicherheitszertifikate: UL/EN/IEC 62368-1/EAC/CB/CE Anwendungsbereiche: Fabrik- oder Automationskontrollgeräte, Test- und Messinstrumente, Maschinen mit Lasertechnologie, digitale Übertragungen, Konstantstromquelle, redundante Systeme

Technical Information & Details for MEAN WELL RSP-2400-12 Power Supply Output Power: 2000.4 W Output Voltage: 12 V DC Output Current: 166.7 A Input Voltage Range: 180 – 264 V AC / 254 – 370 V DC, 47 – 63 Hz Efficiency: 88% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @ 230 VAC Power Factor: 0.95 / 230 VAC (at full load) Operating Temperature: −20 °C to +70 °C Cooling: Forced air cooling by built-in DC fan with speed control Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: I/P-O/P: 3 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC Dimensions (L x W x H): 278 mm x 177.8 mm x 63.5 mm Weight: approx. 3.3 kg Safety & EMC Certificates: UL62368-1, TUV EN62368-1, EAC, CE, BSMI, AS/NZS 62368.1 Additional Functions: Remote ON-OFF, Remote Sense, PV-Function (Programmable), Power OK Signal Manufacturer Warranty: 5 Years Information about the MEAN WELL RSP-2400-12 The MEAN WELL RSP-2400-12 is a high-capacity 2.4KW single-output enclosed power supply engineered for high-demand industrial automation and heavy-duty equipment. A key characteristic of this series is its vast design flexibility, highlighted by the output voltage programming (PV) function. This allows users to trim the output voltage between 20% and 110% of the nominal value via an external DC source, making it highly adaptable for specialized applications. Furthermore, its active current sharing capability enables the synchronization of up to three units to provide a massive total output of up to 7200W, ideal for RF applications and large-scale burn-in facilities. Engineered for longevity, the RSP-2400-12 features a built-in active PFC function and achieves high efficiency, ensuring stable power delivery under rigorous conditions. The thermal management is handled by an intelligent DC fan with integrated speed control, maintaining optimal performance across a wide temperature range. With advanced features such as Remote Sense to negate voltage drops on long cable runs and a reliable 5-year manufacturer warranty, this unit stands out as a premium choice for factory control apparatus and measurement instruments requiring maximum reliability and precision control.

Technical Information & Details for the MEAN WELL RSP-3000-12 Power Supply Output Power: 2400 W Output Voltage: 12 V DC Output Current: 200 A Input Voltage Range: 180 – 264 V AC / 254 – 370 V DC, 47 – 63 Hz Efficiency: 87.5% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @ 230 VAC Leakage Current: < 2.0 mA / 240 VAC Operating Temperature: −20 °C to +70 °C (with derating) Cooling: Forced air cooling by built-in DC fan with fan speed control Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: I/P-O/P: 3 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC Dimensions (L x W x H): 278 mm x 177.8 mm x 63.5 mm (2U) Weight: approx. 4.0 kg Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BS EN/EN55032 LED Indicator: Power OK Signal (Relay contact & TTL signal) Special Functions: Output Voltage Programmable (PV), Remote ON/OFF, Remote Sense, Active Current Sharing Manufacturer Warranty: 5 Years Information about the MEAN WELL RSP-3000-12 The MEAN WELL RSP-3000-12 is a high-performance 2400W industrial power supply engineered for mission-critical environments requiring massive power output and unwavering stability. Its most significant characteristic is the output voltage programming capability, which allows users to dynamically trim the voltage between 20% and 110% (2.4V to 13.2V) via an external DC source. This flexibility, combined with active current sharing that allows up to three units to be connected in parallel for a total output of 7200W, makes it a premier choice for laser-related machinery, industrial automation, and RF applications where scalability is vital. Beyond its raw power, the RSP-3000-12 features a sophisticated control interface including Remote Sense to eliminate voltage drops, Remote ON-OFF control, and dual Power OK signals (Relay and TTL) for seamless system integration and monitoring. The compact 2U low-profile design is optimized for space-constrained racks, while the intelligent fan speed control ensures efficient cooling and reduced acoustic noise during operation. Supported by a 5-year manufacturer warranty and a suite of international safety approvals, this unit delivers a highly reliable and durable solution for test and measurement instruments as well as digital broadcasting facilities.

Technical Information & Details for the MEAN WELL RSP-3000-48 Power Supply See the image above for the connectors supplied. Order crimp terminals if required. Output Power: 3000 W Output Current: 62.5 A Output Voltage: 48 V DC Input Voltage Range: 180 – 264 V AC / 254 – 370 V DC, 47 – 63 Hz Efficiency: 91.5% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 60 A @ 230 VAC Leakage Current: < 2.0 mA / 240 VAC Operating Temperature: −20 °C to +70 °C Cooling: Forced air cooling by built-in DC fan with speed control Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: 3000 V AC between input and output Dimensions (L x W x H): 278 mm x 177.8 mm x 63.5 mm Weight: approx. 4.0 kg Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, EAC, CB, CE LED Indicator: Power On indicator Special Functions: Active Current Sharing (up to 9000W), Remote ON/OFF, PV Function Manufacturer Warranty: 5 Years Information about the MEAN WELL RSP-3000-48 The MEAN WELL RSP-3000-48 is a premier 3000W single-output power supply engineered for high-end industrial environments that require a reliable 48V DC source with superior energy efficiency. Boasting an efficiency rating of 91.5%, this unit significantly reduces wasted heat, ensuring stable performance even in demanding server room architectures or broadcasting systems. Its output voltage programmable (PV) feature provides exceptional versatility, allowing engineers to trim the output voltage between 20% and 110% of the nominal rating to meet specific application requirements via an external control signal. Designed for heavy-duty performance, the RSP-3000-48 supports active current sharing, enabling the parallel connection of up to three units for a combined output of 9000 Watts. This scalability makes it a vital component for large-scale RF applications and industrial burn-in facilities. The power supply is housed in a professional 2U low-profile chassis and includes advanced features such as Remote Sense for precise voltage regulation and a Power OK signal for real-time monitoring. Backed by a 5-year manufacturer warranty, it stands as a robust and long-term solution for factory automation and mission-critical power infrastructures.

Technical Information & Details for MEAN WELL RSP-2400-24 Power Supply Output Power: 2400 W Output Voltage: 24 V DC Output Current: 100 A Input Voltage Range: 180 – 264 V AC / 254 – 370 V DC, 47 – 63 Hz Efficiency: 90% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 60 A @ 230 VAC Power Factor: 0.95 / 230 VAC (at full load) Operating Temperature: −20 °C to +70 °C Cooling: Forced air cooling by built-in DC fan with speed control Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: I/P-O/P: 3 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC Dimensions (L x W x H): 278 mm x 177.8 mm x 63.5 mm Weight: approx. 3.3 kg Safety & EMC Certificates: UL62368-1, TUV EN62368-1, EAC, CE, BSMI, AS/NZS 62368.1 Additional Functions: Remote ON-OFF, Remote Sense, PV-Function (Programmable), Power OK Signal Manufacturer Warranty: 5 Years Information about the MEAN WELL RSP-2400-24 The MEAN WELL RSP-2400-24 stands as a benchmark for high-power AC/DC enclosed supplies, delivering a robust 100A output for demanding industrial environments. Its primary strength lies in its advanced programmability; the output voltage can be trimmed between 20% and 110% of the rated voltage via an external DC source, providing unparalleled flexibility for complex system designs. This series is further enhanced by its active current sharing capability, which supports a 2+1 parallel configuration. This allows multiple units to work in unison, achieving a massive power scalability up to 7200W for large-scale burn-in facilities, telecommunication hubs, and high-frequency RF systems. Beyond its raw power, the RSP-2400-24 is engineered with a focus on long-term operational stability and thermal efficiency. The integrated smart fan control system automatically adjusts the cooling intensity based on internal temperature, ensuring quiet operation at lower loads and maximum heat dissipation during peak performance. With a high 90% energy efficiency rating and a compact 2U low-profile design, it optimizes both energy consumption and cabinet space. Supported by a comprehensive 5-year manufacturer warranty and global safety approvals like UL62368-1, this power supply is the ideal solution for factory automation apparatus and high-end test and measurement instruments requiring absolute precision and reliability.

Technical Information & Details for MEAN WELL RSP-2400-48 Power Supply Output Power: 2400 W Output Voltage: 48 V DC Output Current: 50 A Input Voltage Range: 180 – 264 V AC / 254 – 370 V DC, 47 – 63 Hz Efficiency: 91.5% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 60 A @ 230 VAC Power Factor: 0.95 / 230 VAC (at full load) Operating Temperature: −20 °C to +70 °C Cooling: Forced air cooling by built-in DC fan with speed control Protections: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: I/P-O/P: 3 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC Dimensions (L x W x H): 278 mm x 177.8 mm x 63.5 mm Weight: approx. 3.3 kg Safety & EMC Certificates: UL62368-1, TUV EN62368-1, EAC, CE, BSMI, AS/NZS 62368.1 Additional Functions: Remote ON-OFF, Remote Sense, PV-Function (Programmable), Power OK Signal Manufacturer Warranty: 5 Years Information about the MEAN WELL RSP-2400-48 The MEAN WELL RSP-2400-48 is a high-performance 48V power solution designed to meet the rigorous demands of industrial-grade applications and large-scale digital broadcasting systems. Its defining strength is its exceptional 91.5% energy efficiency, which ensures minimal heat generation and optimal power density within its sleek 2U profile. The unit features output voltage programming (PV), allowing the user to dynamically adjust the output voltage via an external DC control signal. This versatility makes it an indispensable component for advanced RF applications and specialized burn-in facilities requiring precision voltage control and high-current stability at 50A. Scalability is a core feature of the RSP-2400-48, supported by active current sharing that enables the parallel connection of up to three units to reach a massive 7200W total output. To ensure long-term reliability in harsh environments, the power supply is equipped with a smart DC fan that modulates its speed based on internal thermal conditions, providing efficient cooling while extending the fan's lifespan. Complete with comprehensive protection mechanisms and a trusted 5-year manufacturer warranty, this model offers peace of mind for mission-critical operations. Features like Remote Sense for voltage drop compensation and the Power OK signal make it the premier choice for factory automation and high-end test instruments.
