• Output Power: 15010 W
• Output Voltage: 380 V DC
• Output Current: 39.5 A
• Input Voltage Range: 3-phase 3-wire 196–305 VAC or 3-phase 4-wire / Y 340–530 VAC
• Efficiency: Up to 94%
• Ripple & Noise: ≤ 3.5 Vp-p
• Power Factor: ≥ 0.98 at full load
• Inrush Current: 150 A @ 230 VAC / 100 A @ 400 VAC
• Operating Temperature: -30 °C to +70 °C (with derating)

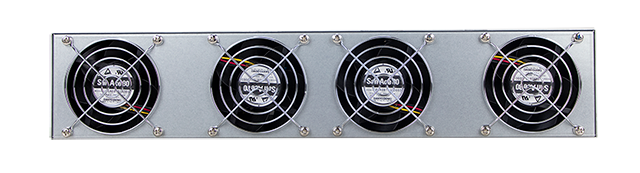

• Cooling: Forced air cooling by built-in fans
• Protection Functions: Short circuit, Overload, Over voltage, Over temperature, Fan fail
• Isolation Voltage: I/P-O/P: 4.3 kVDC, I/P-FG: 2.8 kVDC
• Dimensions (L x W x H): 540 mm x 424 mm x 83.5 mm (2U)
• Weight: Approx. 25 kg
• Safety & EMC Certificates: UL62368-1, TUV EN62368-1, EAC, CE
• Signals & Controls: Remote ON/OFF, PV/PC programming, DC-OK, AC-FAIL alarms
• Manufacturer Warranty: 5 Years

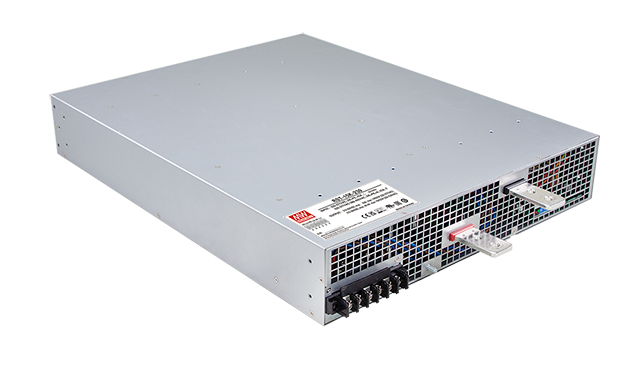

Information about the MEAN WELL RST-15K-380

The MEAN WELL RST-15K-380 is a powerhouse in the industrial AC/DC market, providing a formidable 15kW output at a high-voltage 380 V DC level. Engineered for three-phase power systems, it serves as a critical component for large-scale energy infrastructures, including high-power RF transmitters, UV curing systems, and advanced electrolysis processes. Its high-efficiency architecture, reaching up to 94%, ensures minimal energy loss and low heat generation within its low-profile 2U chassis, making it ideal for space-constrained rackmount installations.

Beyond its raw power, the unit offers sophisticated control through output voltage and constant current programming, allowing a wide adjustment range from 1% to 120% of nominal ratings via external signals. This versatility is essential for EV charging stations and factory automation requiring precise high-voltage regulation. With active current sharing supporting up to 28.5kW in parallel and a comprehensive protection suite—including fan-fail and thermal monitoring—the RST-15K-380 delivers the reliability needed for mission-critical operations, all backed by a 5-year manufacturer warranty.
